Introduction
If devices running iOS or Android are to be connected to the UTM, the easiest way is to use the Securepoint VPN Client app for iOS or the Securepoint VPN Client app for Android. The configuration files can be easily exported from the UTM and imported onto the mobile devices.
Preparation
The prerequisite is the setup of an SSL VPN Roadwarrior on the Securepoint firewall as described in the SSL VPN Roadwarrior article.
Provide configuration files
The configuration files can be downloaded from the user administration:
- Under Area User the user is selected,
for which a SSL VPN connection is to be established. - Opening the details with

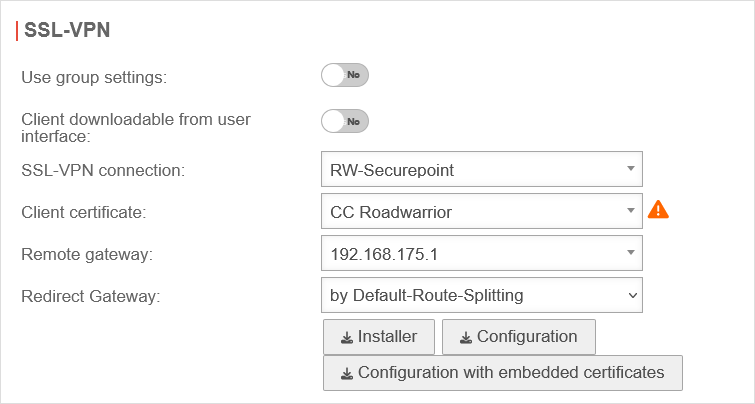

SSL-VPN
| Caption | Value | Description | UTMuser@firewall.name.fqdnAuthenticationUser  SSL-VPN settings for users
|
|---|---|---|---|
| Use group settings: | No | If the user is a member of a group, the settings can be adopted from there. The following settings are then greyed out here and are to be configured in the Area Groups menu. | |
| Client downloadable in the user interface | Yes | The Securepoint VPN Windows client can be downloaded from the user web interface (accessible via port 1443 by default). The port is configurable in the Tab Server settings Button / User Webinterface Port: : 1443. | |
| SSL VPN connection: | RW-Securepoint | Selection of a connection created in the menu. | |
| Client certificate: | CC Roadwarrior | A certificate must be specified that the client uses to authenticate itself to the UTM. It is also possible to use ACME certificates. | |
| Remote Gateway: | 192.168.175.1 (Example-IP) | External IP address or DNS resolvable address of the gateway to which the connection is to be established. | |
| Redirect Gateway: |
by Default-Route-Splitting notempty New as of v14.1.1 |
All data traffic is routed through the tunnel. The VPN tunnel acts as the primary default gateway. If the tunnel does not respond, the regular default gateway is used. | |
| by replacing the default gateway (deprecated) | All data traffic is routed through the tunnel. Completely replaces the default gateway (without fallback). | ||
| Off | Only destinations behind the VPN are routed through the tunnel. The default gateway is used for all other destinations | ||
notempty New as of v14.1.1 |
Lädt ein Installationsprogramm herunter, mit dem man entweder
Der installierte Client aktualisiert sich bei neuen Updates eigenständig - unabhängig von der UTM-Version. | ||
| Downloads the configuration files for any VPN clients. The file contains the necessary configuration files and certificates in the local_firewall.securepoint.local.tblk folder. | |||
| notempty New as of v14.0.1 |
Downloads the configuration file for any VPN client. The certificates are written directly to the ovpn file. | ||
| The file name contains the user name and notempty v14.1.1 | |||
Download the configuration files used in the Securepoint VPN Client app with .
Transfer of configuration files
The .zip file can now be transferred to the mobile device:
- iOS
- Using iTunes, Apple Configurator2 or via a suitable cloud service.
Save the .zip file under Locations / On my iPhone / Securepoint VPN Client / User.zip
- Android
- Transfer via USB or via a suitable cloud service.
notempty
