VPN Client

---

Download and installation of the Securepoint VPN Client

Last adaptation to the version: 3.0.0 alpha (01.2025)

New:

• Überarbeitete Benutzeroberfläche (UI)
• Vorbereitung für die Anbindung an die Cloud
• Einzelne SSIDs lassen sich pro Tunnel auszuschließen
• Kompaktansicht für den Client hinzugefügt

notempty

This article refers to a Resellerpreview

1.0

notempty

Alpha version - only as reseller preview
Not intended for productive use!

---

System requirements

• Windows 10 x64 or higher
• 1GB RAM

Show detailed system requirements

Operating system:	Windows 10 x64 or higher
Term requirements:	windowsdesktop-runtime-6.0.12-win-x64.exe May be installed automatically VC_redist.x64.exe May be installed automatically
Hardware:	Storage space: At least 206 MB (if the runtime requirements are also installed) RAM: At least 1024 MB Processor cores: 2, recommended: 4 Processor architecture: 64-bit (x64)

---

Download

The download takes place in the reseller portal under Support Downloads Tab VPN-Client x

---

Installation

An installation can be carried out in two different ways.

• The first is installation via a graphical user interface
• The second is a Quiet installation without user interaction.

Both steps, as well as the Installation with automatic import of a configuration and the Ignore runtime prerequisites are explained below.

GUI installation

The GUI installation is started by executing the previously downloaded file Securepoint-VPN-Client-<Version>.exe.

Show step-by-step instructions

Welcome message

Licence agreement

Privacy policy

Install runtime requirements

If the prerequisites are already installed, this dialogue should not be displayed.

More detailed information on ignoring runtime prerequisites can be found here.

Falls Erwünscht kann hier direkt die Cloud-Registierung mithilfe eines Enrollment-Tokens erfolgen.
notempty

Diese Funktion wird erst mit dem Stable-Release zur Verfügung stehen.

Finalise the installation

Administration rights

Administrationsrechte für die Cloud-Registrierung

Installation completed

Installation with automatic import of a configuration

If there is a folder labelled Config in the same path as the installation file Securepoint_VPN_Client-<Version>.exe, the first configuration file contained there will be imported during the installation process.

Migration of old connections

---

The migration of connections from the file path of the old Securepoint SSL-VPN Client is carried out via the GUI either at the first start or, if the corresponding function has been activated in the settings, at each start.
In both cases, if a connection to the old client is found, the migration wizard opens.

Show individual steps of the migration assistant

An old connection was found, the migration process can be Continue or cancelled (Skip).

Es können alte Verbindungen importiert (Importieren) werden, wenn dies Erfolgreich war, wird ein grüner Haken nehmen dem Verbindungsnamen angezeigt.
Dieser Schritt kann mit Weiter beendet bzw. übersprungen werden.

Wenn erwünscht kann der alte Client deinstalliert werden, wenn dies erfolgreich ist, erscheint ein grüner Haken, sowie eine Meldung ("Deinstallation des alten Client wurde erfolgreich ausgeführt").

Installation via the command line (CMD)

The following command can be used to install the client via the command line:
.\Securepoint_VPN_Client-<Version>.exe /quiet More detailed information can be found in the section on Command line commands.

Installation with automatic import of a configuration

If there is a folder labelled Config in the same path as the installation file Securepoint_VPN_Client-<Version>.exe, the first configuration file contained there will be imported during the installation process.

Migration via CLI

Migrate VPN configuration: C:\Program Files\Securepoint VPN Client\Securepoint VPN Client.exe" /migrate

Automated installation

Example of an automated installation process:

1. Notification to users that the new client is being installed
2. Copy the installation file Securepoint_VPN_Client_vXYZ.exe to the target devices via group policy (GPO) or software distribution system
3. If necessary, create a folder with the name Config in the same way, which contains the respective configuration
4. Install new VPN client via:C:\Securepoint_VPN_Client_vXYZ.exe" /quiet
5. Migrate old VPN configuration if necessary:C:\Program Files\Securepoint VPN Client\Securepoint VPN Client.exe" /migrate
6. Finally, users may have to deactivate the autostart of the old SSL VPN client and activate it in the new VPN client.
   Eine Instructions for end users can be found here: https://wiki.securepoint.de/VPN/VPN-Client-Umstellung

Show instructions for end users

---

Change autostart

If you are switching from the previous SSL VPN client to the new Securepoint VPN client, you only need to make a few simple changes to the autostart settings to finalise the switch.

Deactivate autostart for old client

1. Click on the arrow to show the tray icons
2. Right-click to open the menu for the SSL VPN Client
3. Use the menu to display the client window

1. Open the menu by clicking on the cogwheel
2. Use the menu to switch to the client settings

1. Deselect the "Run on Windows startup" option
2. Close the window

Activate autostart for new client

1. Click on the arrow to show the tray icons
2. Right-click to open the menu for the Securepoint VPN Client or if not available, start the VPN client first
3. Use the menu to show the client window

1. Navigate to the settings by clicking on the cogwheel
2. Activate the "Run on Windows startup" option

Ignoring runtime requirements

notempty

Ignoring the runtime environment is not recommended.

When installing the client, it is possible to ignore the required runtime prerequisites

• An option is displayed in the user interface (GUI) to not install the runtime requirements if they are missing on the system
  If the runtime requirements already exist, this option is not displayed
• The parameter /ignore-prereq is used for the CLI
  ‍

  .\Securepoint_VPN_Client-<Version>.exe /ignore-prereq /s

Show additional information

This option is only useful if the runtime requirements

‍

• windowsdesktop-runtime-6.0.12-win-x64.exe May be installed automatically
• VC_redist.x64.exe May be installed automatically

are already pre-installed on the system or the setup could not verify the files when downloading the runtime prerequisites.
This can happen if Microsoft creates a patch for these and the checksum changes as a result.
However, the following things must then be configured manually:

1. The runtime requirements must be downloaded and installed manually before the client can be started.
2. The service is not started automatically.
   This means that it must be started manually and configured to start automatically at system startup.
   This can be implemented as follows (using elevated rights):
   1. Start service:
      sc.exe start "Securepoint VPN Client Service"
   2. Configure service for automatic start:
      sc.exe config "Securepoint VPN Client Service" start=auto
      This causes the service to start automatically the next time the system is started. It is recommended to test these configurations. You can check whether the Securepoint VPN Client Service is started via "Services".

---

Update

Update dialogue

As administrator, automatic updates can be activated (see Advanced settings), if this is not desired, an update icon is displayed in the header if an update is available.

All active connections are interrupted during an update

The service is restarted after an update.
The client will use the new version the next time it is started.
Connections that are set up with ‘’Autostart activated‘’ are restarted.

---

Tray-icon

Tray icon of the client in the taskbar

When the client is started, the client icon appears in the taskbar as a tray icon. The following options are available by right-clicking on this icon:

• Show the client window
• Establish or disconnect a connection (is hidden if several connections are active)
• Close application

---

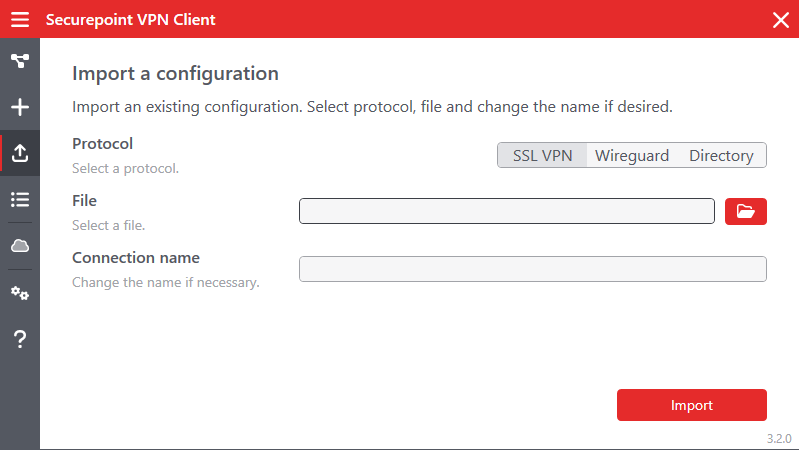

Importing a VPN configuration

Caption	Description	Importing a VPN configuration
Protokoll	Wahl des Protokolls (SSL-VPN oder WireGuard)
Datei	Mithilfe der Schaltfläche   Konfigurationsdatei auswählen
Verbindungsname	Verbindungsnamen bei Bedarf ändern
Systemverbindung anlegen	Wenn der Client als Administrator ausgeführt wurde (erkennbar an dem Hinweis Admin rechts oben in der Titelleiste), kann die Verbindung außerdem als Systemverbindung, also für alle Benutzerkonten des Computers, erstellt werden.
Importieren	Verbindung importieren

---

Create configuration

Call up the configuration wizard in the menu under Create

Start the configuration of a new VPN connection with Next.

Step 1

• gewünschtes Protokoll SSLVPNWireGuard
• Aussagekräftiger Name für die Verbindung
• Falls mit Adminrechten ausgeführt: Ggf, BenutzerSystem
  Die Verbindung steht dann in allen Benutzerkonten dieses Computers zur Verfügung

SSLVPN

To configure an SSLVPN connection, follow the instructions below:

Step 2

• At least one VPN server must be added using the protocol, the IP address or the host name and the port.

Step 3

• Client und Server Schlüssel bzw. Zertifikate auswählen (mit )
  Zuordnung bei typischer Benennung:

  Zertifizierungsstelle(CA)
  …cert.pem

   

  Privater Schlüssen (RSA)
  …cert.key

   

  Öffentlicher Schlüssel (CA)
  …ca.pem

Step 4

• Configure the connection with the VPN server accordingly
• Redirect Gateway
  • If deactivated, only packets to a local destination network are routed through the tunnel
  • If activated, all packets are routed to the tunnel and from there routed further if necessary

Step 5

Zusammenfassung aller Einstellungen zur Überprüfung. Wenn alle Einstellungen korrekt sind kann der Konfigurations-Wizard mit der Schaltfläche Anwenden beendet und die Verbindung hinzugefügt werden.

WireGuard

Follow the instructions below to configure a WireGuard connection:

Step 2

• At least one VPN server must be added using the protocol, the IP address or the host name and the port.

Step 3

• Enter client and server key
• optional Enter preshared key

Step 4

• Client IP address required
• Other values can be left blank, these options are then either ignored or assigned a default value
• DNS address(es) can also be entered as a domain notempty
  as of v1.0.9

Step 5

Summary of all settings for verification. If all settings are correct, the configuration wizard can be closed with the Apply button and the connection added.

---

Connection settings

System and user connections

User connections are saved in the Windows registry under the HKEY_CURRENT_USER context and are therefore only available to the Windows user who imported the connection.

System connections are stored under HKEY_LOCAL_MACHINE and are therefore available to every user of the machine, but require administration rights for import.

Herstellen einer Verbindung

Eine Verbindung kann entweder über das Kontextmenü /  Verbinden oder über einen Klick auf die Verbindungs-Schaltfläche hergestellt werden

Verbindung getrennt

Verbindung wird aufgebaut

Connection button

Verbindungsübersicht

Caption	Value	Description	Verbindungsübersicht
Status	Verbunden	Verbindung ist hergestellt
	Verbinde	Verbindung wird hergestellt
	Failed	Verbindung konnte nicht hergestellt werden
	Getrennt	Keine Verbindung
Name	TTT-Point-1	Name der Verbindung
Mehr		Öffnet das Kontextmenü der jeweiligen Verbindung
	/	Wechselt zwischen Standardansicht und Kompaktansicht des Clients

Extended view

Connection details in the expanded view

Über den Eintrag Details Anzeigen im Kontextmenü werden zusätzliche Verbindungsdetails angezeigt:

• Empfangene Daten
• Gesendete Daten
• Verbindungsdauer
• Gerätename (verwendete Schnittstelle)
• Wintun Version
• IPv4 Adresse / IPv6 Adresse

Kompaktansicht

	Description	Kompaktansicht VPN-Client
➊	Wechselt zwischen Standardansicht und Kompaktansicht des Clients
➋	Verbindungstyp ‍ WireGuard / SSLVPN Cred: Es sind Benutzerdaten hinterlegt System: Systemverbindung (steht allen Benutzern zur Verfügung)
➌	Verbindungsdauer
➍	Verbindungsschaltfläche
➎	Volumen Upload und Download sowie Geschwindigkeit

Context menu

Aufruf mithilfe der Schaltfläche in der Verbindungsübersicht oder einem rechten Mausklick auf eine Verbindung.

Menu item	Description	Connections Context menu
Verbinden	VPN Verbindung aktivieren
Edit ‍ Only possible as Admin with a system connection	Shows the associated configuration and the certificates that can be edited
OTP anwenden ‍ Not possible with a Wireguard connection	Activates/deactivates the entry of a one-time password during a connection attempt
Automatisch verbinden	Automatically establishes this connection when the app is started.
Bei Verbindungsabbruch neu verbinden	Falls die Verbindung unerwartet unterbrochen wird, wird automatisch versucht sich neu zu verbinden.
Edit user data ‍ Only possible as Admin with a system connection Not possible with a Wireguard connection	Opens a window through which you can update the user data
Delete user data ‍ Only possible as Admin with a system connection Not possible with a Wireguard connection	Deletes the user data for the current connection
Ausgeschlossene SSIDs ‍ Only possible as Admin with a system connection	Netzwerke konfigurieren, für die keine Verbindung hergestellt werden soll ‍ z.Zt nur per Kontextmenü konfigurierbar Dialog anzeigen Dialog für Ausgeschlossene SSIDs
Export ‍ Only possible as Admin with a system connection	Opens a dialogue through which you can export the selected connection as a text file
Log anzeigen	Calls up the log for the specific connection
Details Anzeigen	Opens the connection to the full width and length and displays further helpful information
Diagnosis	Switches to the diagnostic view Bild anzeigen Testing server connectivity (Can a specified server be reached?) Analyse the log Testing the public IP address (via https://checkip.spdyn.de)
Delete connection ‍ Only possible as Admin with a system connection	Deletes the current connection

---

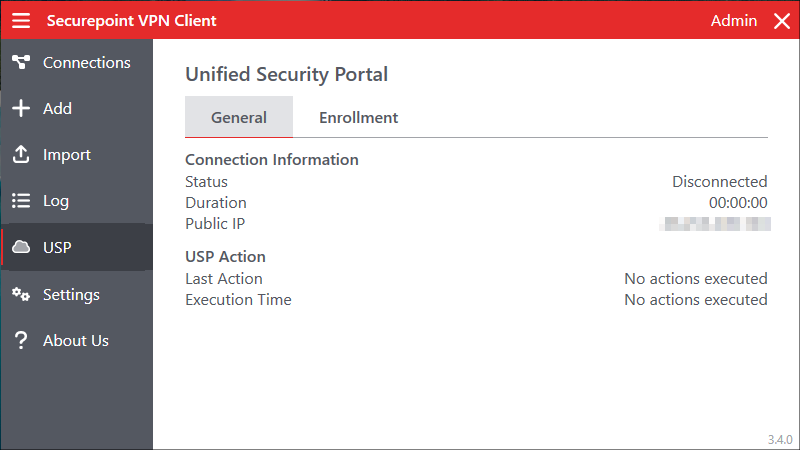

Cloud-Verbindung

In einer kommenden Version wird eine Anbindung zum Securepoint Unified Security Portal (USP) zur Verfügung stehen.
Damit wird es möglich sein, den VPN-Client aus dem Portal heraus zu steuern und eine Übersicht über den Sicherheitsstatus des Hosts zu erhalten.

---

Client settings

Settings for application start:

• Run when starting Windows
• Start application minimised (tray icon)
• Show migration wizard again

Settings relating to the connections:

• Minimise the client after connecting
• Allow multiple VPN connections at the same time
• Block shutdown during active connection

Attitudes towards appearance:

• Show pop-up window when application is minimised
• Display flyout information within the application
• Activate dark mode
• Choose language

notempty

These settings are only displayed if the application was started as an administrator, this can be recognised by the "ADMIN" at the top right.

Advanced settings for administrators:

• Perform client updates automatically
• Force DNS, all DNS requests must be made via the VPN

---

Log

Button	Description	Log overview
All levels	Filters for either all levels (Info, Warning, Error) or only Warning + Error
Komplett	Filters the log by type: Complete log, Client, Connections, Daily, Service
50	Shows a maximum of the set number of log messages
Copy	Copies the entire currently visible log
Copy all	Copies the entire (also invisible) log
Export	Exports the entire currently visible log

---

Command line commands

Installation, upgrade, uninstallation and repair

Description	Parameter	Example
Installing or upgrading the client		Securepoint_VPN_Client-<Version>.exe
Installation or upgrade without display ‍ The installation programme performs an installation without displaying a user interface. No prompts, messages or dialogue boxes are displayed to the user. The user cannot cancel the installation . Can be combined with Uninstall and Repair. The parameter /quiet must always be specified first.	/quiet	Securepoint_VPN_Client-<Version>.exe /quiet
Uninstalling the client	/uninstall	Securepoint_VPN_Client-<Version>.exe /uninstall
Repair of the client The Repair command must always be executed in combination with the /quiet parameter. ‍ Otherwise, a user dialogue will be displayed, without which the programme will not continue, but the confirmation of which will end the programme.	/repair	Securepoint_VPN_Client-<Version>.exe /quiet /repair
Indicates what is being installed and whether it was completed successfully or whether errors occurred	| more	Securepoint_VPN_Client-<Version>.exe /repair | more ‍ Note the ‘’space‘’ between pipe and more

Commands at runtime

The commands are always appended to the client call (.Securepoint_VPN_Client-<version>.exe).

Command	Description	Example
/migrate ‍ short form: /m	Migrate a connection from the file path of the old Securepoint SSL VPN client. The result per connection is either ALREADY EXISTS (connection with the same name already exists in the registry. It is important that only the name is taken into account, not whether an identical copy of a config has already been imported), SUCCESS or FAILED. All connections are created as USER connections. For SYSTEM connections, these must be created manually in the client.	.\Securepoint_VPN_Client.exe /migrate and
/log	Exportiert das vollständige Log	.\Securepoint_VPN_Client.exe /log
/help ‍ short form: /h	Help on the commands	.\Securepoint_VPN_Client.exe /help
