Configuration iOS profile: User Enrollment

From Securepoint Wiki















































Managing iOS profiles with the User Enrollment type in the Mobile Security Portal

Last adaptation to the version: 2.15 (03.2026)

New:
notempty
This article refers to a Beta version
Access: portal.securepoint.cloud  Mobile Security iOS/iPadOS Profile

Using the user registration profile type

This profile type is used to install paid apps provided by an organization on private iOS or iPadOS devices.
This requires managed Apple IDs.
Instructions can be found in the Enrollment Wiki article on user enrollment


In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
Diese Seite wird auf folgenden Seiten eingebunden









































Preamble

In a profile permissions, restrictions, password requirements, email settings and security settings are configured.
Several users or user groups (roles) can be assigned to a profile.
Several devices or device groups (devices designated by tags) can be assigned to a profile.

notempty
For a large number of devices and users it is recommended to map the assignment via groups.
  • Device registration is directly tied to a profile
  • A profile must be created first' (and configured) before a device can be registered

In Android Enterprise profiles, numerous security-relevant settings can be made, e.g.

  • Disable Kamara
  • Disable microphone
  • Disable USB file transfer
  • Disable outgoing calls
  • Disable Bluetooth
  • Disable contact sharing
  • Disable tethering
  • Disable sms
  • Enable network only with VPN
  • and much more.
notempty
Android Enterprise Profiles are used immediately and do not need to be published!
  • Outdated Android profiles behave fundamentally different than Android Enterprise Profiles (EMM)
  • It is no longer possible to assign a profile to a role, user or tag

Overview of profile management

In the profile overview new profiles can be created, existing ones can be edited and deleted. The view of the profiles can be displayed in the list or tile view. You can also view details of existing profiles, update the list of profiles, and publish profiles.
Overview of profile management iOS
Overview of profile management Android

General Options

Search Filters on profile tiles that contain the search text
 Sort
Clicking this button opens a menu where you can sort the tiles according to specific criteria
 Sort
Clicking this button opens a menu where you can sort the tiles according to specific criteria
Name
Sorts the tiles by profile name
Priority
Sorts the tiles according to the priority of the profile
Ascending
Sorts the tiles in ascending or descending order according to the selected criterion
 Add profile Creates a new profile. The settings in the profile vary depending on the operating system.
 Import profile Existing profiles that were previously exported from the Securepoint Mobile Security Portal can be imported here
 Hide generated profiles Hides the generated profiles
Show details Show / hide details: For a large number of profiles, it can be useful to hide the most important details for clarity.
/ List view / Grid view Switch between lists and grid view
Refresh Refreshes the display

Profile tile

Profile-Options
The button at the top right of each profile tile provides the following options:
 Edit Editing the settings (see below)
  Copy Copying the profile to the clipboard
  Export Exporting the settings
  Delete The profile is deleted
notempty
New as of: 2.5
Android profiles that have at least one assigned device cannot be deleted.
Details displayed in the profile tile:
 Updated Changes have been made to the profile that have not yet been published!
 Partially installed Not all sub profiles were able to be installed
Profile information
  Type Profile type (see below)
  Roles Roles
  Users User
 Devices Devices
  tags Tags
  Parts Listing of the sub-profiles that make up the complete Mobile Security Profile.

Copy & paste of profiles

Click on the logo of the profile tile to mark one or more profiles In the general options, another field now appears under the filter mask:
Action for selected items Please choose Execute the selected action with Ok
Copy Copies one or more selected profiles to the clipboard
Delete Deletes one or more selected profiles
notempty
New as of: 2.5
Android profiles that have at least one assigned device cannot be deleted.
  Paste Inserts a copy of a profile from the clipboard
This also works from one tenant / customer to another as long as they are assigned to the same reseller account   AnyIdeas GmbH


Configuration iOS profile User Enrollment

In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
Diese Seite wird auf folgenden Seiten eingebunden

























General

General

 Add profile

Caption Value Description
General menu item
Type Device profile Standard device profile
Shared iPad Profile that allows different users for one iPad
  • Only for devices with iPadOS
    • Apple TV profiles Profile with limited settings options. Additional settings for Apple TV
    User Enrollmant profile Profile owned by the user on which managed apps of the company can be installed
    Name Name Profile name
    Priority 5 The higher the number, the higher the priority. This is only used if a device is assigned to multiple profiles.
    Roles Add roles Click-Box: The profile will be assigned to all devices of all users with these roles
    Users Add users The profile will be assigned to all devices from these users
    Devices Add devices The profile will be assigned to these devices
    Tags Add tags The profile will be assigned to all devices with these tags
    Comment Comment Comment

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab

    Restrictions

    Restrictions

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden

























































    | Two-character code for the region used to specify ratings }}






































    {{var | Regionscode--desc | 2-Buchstaben-Code für Regionen die in bestimmten Ratings benutzt werden.


























    Caption Value Description
    Geräte Sicherheit & Datenschutz
    Allow automatic unlocking    When deactivated   , the automatic unlocking is disabled
    Kon­troll­zen­trum im Sperr­bild­schirm zu­las­sen    Wenn aktiviert    ermöglicht es den Zugriff auf das Kontrollzentrum direkt vom Sperrbildschirm

    Dies erleichtert Schnellaktionen (WLAN, Taschenlampe), kann aber unerwünschte Änderungen ohne Anmeldung ermöglichen

    Mit­tei­lungs­an­sicht im Sperr­bild­schirm er­lau­ben    Wenn aktiviert    ermöglicht es die Anzeige vergangener Mitteilungen auf dem Sperrbildschirm

    Dies verbessert die Sichtbarkeit wichtiger Informationen, erhöht jedoch das Risiko, dass sensible Inhalte von Dritten eingesehen werden

    Heu­te-An­sicht im Sperr­bild­schirm zu­las­sen    When deactivated   , today's lock screen view will be disabled
    Force encrypted backups    When activated   , encrypted backups are enforced
    Ad-Tracking be­schrän­ken    When activated   , ad tracking will be restricted
    Find My De­vice er­lau­ben    Wenn aktiviert    wird Find My Device in der Find My App zugelassen
    Find My Fri­ends er­lau­ben    Wenn aktiviert    wird Find My Friends in der Find My App zugelassen
    Allow trusting enterprise apps    When deactivated   , Enterprise apps are not trusted
    Bild­schirm­fo­tos und Bild­schirm­auf­nah­men zu­las­sen    Wenn aktiviert    erlaubt es dem Benutzer das Erstellen von Bildschirmfotos und Bildschirmaufnahmen
    Wal­let-Mit­tei­lun­gen bei ge­sperr­tem Bild­schirm    When deactivated   , wallet notifications will not be shown on the lock screen
    E-Mail-Da­ten­schutz zu­las­sen    When activated   , Apple's Mail Privacy Protection (AMPP) is activated
    Ent­sper­ren mit Touch- & Face-ID zu­las­sen    When deactivated   , Touch ID/Face ID is not allowed to unlock the device
    Än­de­rung von Touch- & Face-ID zu­las­sen    When deactivated   , the user is not permitted to change the Touch ID/Face ID
    Sen­den von Dia­gno­se­da­ten zu­las­sen    When deactivated   , diagnostic and usage data is not sent to Apple
    Än­dern der Dia­gno­se­ein­stel­lun­gen zu­las­sen    When deactivated   , the user is not permitted to change the diagnostic settings
    Allow network access for files    When deactivated   , the connection to network drives is prevented in the file app
    Än­de­rung der Blue­tooth-Ein­stel­lun­gen zu­las­sen    When deactivated   , changes to the Bluetooth settings are not permitted
    Än­de­rung der mo­bi­len Da­ten­nut­zung für Apps zu­las­sen    When deactivated   , the mobile data uses for app settings cannot be changed
    Ak­zep­tie­ren nicht ver­trau­ens­wür­di­ger TLS-Zer­ti­fi­ka­te zu­las­sen    When deactivated   , the user is not allowed to accept untrusted certificates in TLS
    Hand­off zu­las­sen    When deactivated   , handoff is deactivated. Handoff allows you to continue an activity started on an iOS-device on another device.
    Cloud & Synchronisation
    Cloud & Synchronisation
    iCloud-Fo­tos zu­las­sen    When deactivated   , the use of the iCloud Photo Library on the device is not permitted
    iCloud-Back­up zu­las­sen    When deactivated   , the backup with the iCloud is not permitted
    Au­to­ma­ti­sches Syn­chro­ni­sie­ren bei Roa­ming zu­las­sen    When deactivated   , automatic synchronisation is deactivated during roaming
    Back­up von En­ter­pri­se-Bü­chern zu­las­sen    When deactivated   , Enterprise books are not saved
    Syn­chro­ni­sa­ti­on von No­ti­zen/Mar­kie­run­gen in En­ter­pri­se-Bü­chern zu­las­sen    When deactivated   , Enterprise books and highlights are not synchronised
    In-App-Käu­fe zu­las­sen    When deactivated    no in-app purchases can be made
    Mul­ti­play­er-Ga­ming zu­las­sen    When deactivated   , multiplayer gaming is not allowed
    iTu­nes Pass­wort für alle Käu­fe an­for­dern    When activated   , the user's iTunes password is required for all purchases
    Siri & Diktierfunktion
    Siri & Diktierfunktion
    Siri zu­las­sen    When deactivated   , Siri is not allowed
    Siri bei ge­sperr­tem Bild­schirm zu­las­sen    When deactivated   , Siri is not allowed while the device is locked
    Siri Zu­griff auf be­nut­zer­ge­ne­rier­te In­hal­te zu­las­sen    When deactivated   , it prevents Siri from querying requests with user-generated content
    Dik­tier­funk­ti­on zu­las­sen    When deactivated   , dictations are not allowed
    On-De­vice Dik­tier­funk­ti­on    When deactivated   , the QuickPath keyboard is disabled
    Force translation on the device only    When activated   , the device does not connect to Siri servers for translation purposes
    Allow QuickPath keyboard    When deactivated   , the QuickPath keyboard is disabled
    Ap­ple Mu­sic zu­las­sen    When deactivated   , Apple Music will be disabled in the Music app
    iTu­nes Ra­dio zu­las­sen    When deactivated   , iTunes Radio will be disabled in the Music app
    News-App zu­las­sen    When deactivated    no news can be used
    App-Al­ters­frei­ga­be fest­le­gen Alle Apps erlauben Legt die höchste erlaubte App-Altersfreigabe fest
    Auswahlmöglichkeiten App-Altersfreigaben festlegen anzeigen
    hide
    Klicken für dauerhafte Anzeige
    Alle Apps erlauben 17+ 12+ 9+ 4+ Nichts erlauben
    Film-Al­ters­frei­ga­be fest­le­gen Alle Filme Legt die höchste erlaubte Film-Altersfreigabe fest (FSK)
    Auswahlmöglichkeiten Film-Altersfreigaben festlegen anzeigen
    hide
    Klicken für dauerhafte Anzeige
    Alle Filme FSK 18 FSK 16 FSK 12 FSK 6 FSK 0 Keine Filme
    TV-Al­ters­frei­ga­be fest­le­gen Alle TV-Sendungen Legt die höchste erlaubte TV-Altersfreigabe fest
    Auswahlmöglichkeiten TV-Altersfreigaben festlegen anzeigen
    hide
    Klicken für dauerhafte Anzeige
    Alle TV-Sendungen Ab 18 Jahren Ab 16 Jahren Ab 12 Jahren Ab 6 Jahren Ab 0 Jahren Keine TV-Sendungen
    Safari Browser Einstellungen
    Safari Browser Einstellungen
    Coo­kies in Sa­fa­ri zu­las­sen Nur von aktueller Webseite (iOS 8) oder besuchten Seiten (pre-iOS 8) Möglichkeiten zur Einstellung der Cookie Akzeptanz in Safari
    Auswahlmöglichkeiten Cookies in Safari akzeptiert anzeigen
    hide
    Klicken für dauerhafte Anzeige
    Nur von aktueller Webseite (iOS 8) oder besuchten Seiten (pre-iOS 8) Never Webseiten die ich besucht habe Always
    Ja­va­Script zu­las­sen    When deactivated   , JavaScript is not allowed in Safari
    Pop-ups zu­las­sen    When deactivated   , pop-ups are not allowed in Safari
    Enable fraud warning    When activated   , the fraud warning in Safari is activated
    System & Sonstiges
    System & Sonstiges
    Allow OTAPKI updates    When deactivated   , OTAPKI updates are disabled
    Tem­po­rä­re Sit­zun­gen (Ge­teil­tes iPad) zu­las­sen    When deactivated   , the temporary session of the shared device is disabled
    Air­Play-Kopp­lungs­pass­wort (aus­ge­hend) er­zwin­gen    When activated   , all devices receiving AirPlay requests from this device will be forced to use a pairing password
    Än­de­rung des Ge­rä­te­na­mens zu­las­sen    When deactivated   , the device name cannot be changed
    Allow voice dialing while device is locked    When deactivated   , no voice dialling is allowed, even if the device is locked
    Force Apple Watch wrist detection    When activated   , Apple Watch wrist detection is enforced
    Allow pairing with Apple Watch    When deactivated   , pairing with Apple Watch is not permitted
    In­ter­net­er­geb­nis­se in Spot­light zu­las­sen    When deactivated   , search results from the web will not be shown in Spotlight
    Per­so­na­li­sier­te Wer­bung zu­las­sen    When deactivated   , restricts Apple's personalized advertising. Available in iOS 14 and later
    Ka­me­ra­nut­zung zu­las­sen    When deactivated   , the user is not allowed to use the camera
    Än­de­rung der Mit­tei­lungs­ein­stel­lun­gen zu­las­sen    Wenn aktiviert    ermöglicht es das Ändern der Mitteilungseinstellungen
    Datenfluss
    Datenfluss
    Ver­wal­te­ten Apps das Schrei­ben in nicht ver­wal­te­te Kon­tak­te zu­las­sen    When deactivated   , writing unmanaged contacts will be disabled
    Nicht ver­wal­te­ten Apps das Le­sen ver­wal­te­ter Kon­tak­te zu­las­sen    When deactivated   , unmanaged apps cannot access contacts of managed accounts and that managed apps do not save contacts in the local Contacts app
    iCloud-Syn­chro­ni­sie­rung für ver­wal­te­te Apps zu­las­sen    When deactivated   , iCloud synchronisation is deactivated for managed apps
    Öff­nen aus nicht ver­wal­te­ten Quel­len in ver­wal­te­ten Apps zu­las­sen    When deactivated   , iCloud synchronisation is deactivated for managed apps
    Öff­nen aus ver­wal­te­ten Quel­len in nicht ver­wal­te­ten Apps zu­las­sen    When deactivated   , iCloud synchronisation is deactivated for managed apps
    Ver­wal­te­te Zwi­schen­ab­la­ge    When activated   , the copy and paste feature follows the "Allow open from managed to unmanaged" and "Allow open from unmanaged to managed" constraints.
    Treat AirDrop as unmanaged destination    When activated   , it prevents protected (managed) data from leaving the device without authorisation via Airdrop



    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden


























    Passcode

    Passcode

    Configuration by clicking on Activate Passcode   


    Operation Default Description
    Settings passcode
    Request passcode on the device    Enforces the use of a passcode before using the device
    Set maximum number of failed attempts   

    Number of passcode entry attempts allowed before all data on device will be erased

      
    Maximum number of failed attempts 11

    Set auto-lock   

      

    The number of minutes for which the device can be idle (without being unlocked by the user) before it gets locked by the system

    Automatic lock after 15 minutes

    Set maximum passcode age   

      

    The number of days for which the passcode can remain unchanged 730
    Restrict password complexity    Allows restricting password complexity
      
    Allow simple value    Permits the use of repeating, ascending, and descending character sequences
    Require alphabetic value    Passcodes must contain at least one letter
    Minimum number of complex characters 0 Smallest number of non-alphanumeric characters allowed
    Minimum passcode length 0 Smallest allowed number of characters in passcode
    Use passcode history    Allows defining the number of different passcodes required between the reuse of passcodes
      
    Passcode history 1 Number of unique passcodes required between passcode reuse
    Use grace period for device lock    Allows defining the maximum time in minutes to unlock the phone
      
    Grace period for device lock -1 The maximum grace period, in minutes, to unlock the phone without entering a passcode.
    The default value -1 predetermines iOS to not apply a time limit

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden









































    Apps

    Apps
    Profile created from portal version 1.31 onwards
    notempty
    Profile created from portal version 1.31 onwards
    notempty
    New as of 1.31
    Managing apps and web clips via profiles is outdated and no longer available. Reassigning applications to devices is now done via the menu item  Mobile Security iOS/iPadOS Apps .
    Further information can be found in the Wiki article on iOS apps
    Apps & Web clips
    Profile created before portal version 1.31
    notempty
    Profile created before portal version 1.31
    notempty
    This function is deprecated. In profiles before version 1.31, apps can be removed but not newly added. Reassigning applications to devices is now handled via the menu item  Mobile Security iOS/iPadOS Apps in the side menu. This also allows for later uninstallation of the application.
    Further information can be found in the Wiki article on iOS apps
    Caption Value Description
    Apps & Web clips
    Apps
    		Securepoint VPN Client The created apps can only be deleted.
    New apps cannot be added,
    Apps are added and removed from an iOS profile via the portal page  Apps
    Web clips Securepoint Wiki [Label: SP Wiki] (https://wiki.securepoint.de) The created Web clips can only be deleted.
    New Web clips cannot be added,
    Web clips are added and removed from an iOS profile via the portal page  Apps


    App-Lock (Kiosk mode)
    App-Lock (Kiosk mode)

    The app lock activates the guided mode which limits the device to a single app. In this state - also called kiosk mode - you can control which app functions are available.
    Activate configuration   

    Show restrictions
    Hide restrictions





    1. 2. 3.
    Abb.1 Abb.2 Abb.3
    Abbildungen
    Caption Value Description
    Bundle ID Enter ID The bundle ID of the application
    notempty
    Entering an unknown bundle ID can cause problems
    Options
    Disable Touch Input    If true, the touch screen is disabled
    Disable Auto-Rotation    If active, device rotation detection is disabled
    Dis­able Vol­ume But­tons    When active, the volume keys are disabled
    Dis­able Ringer (Mute) Switch    When active, the ringtone switch is disabled
    Dis­able Sleep/Wake But­ton    When active, the sleep / wake button is disabled
    Dis­able Auto-Lock    If active, the device is not automatically set to sleep mode after an idle period
    Accessibility
    Force En­able VoiceOver    If active, voice over is enabled
    En­able Zoom    When active, zoom is enabled
    En­able In­vert­ed Col­ors    If active, invert colors is enabled
    En­able As­sis­tive­Touch    When active, AssistiveTouch is enabled
    Force En­able Speak Se­lec­tion    Wenn aktiv    wird die Aktivierung der Vorlese-Funktion erzwungen
    Force En­able Mono Au­dio    When active, mono audio is enabled
    Force En­able Voice Con­trol    If active, the language selection is enabled.
    User Enabled Options
    Al­low VoiceOver    If active, VoiceOver customization is allowed
    Al­low Zoom    If active, the zoom setting is allowed
    Al­low In­vert­ed Col­ors    If active, the colors invert setting is allowed
    Al­low As­sis­tive­Touch    If active, AssistiveTouch customization is allowed
    Al­low Voice Con­trol    Wenn aktiv    wird die Benutzersteuerung für Sprachsteuerung zugelassen

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden





















































    {{var | Captive-Login erlauben--desc | Wenn aktiv {{ButtonAn||class=small}, kann das Gerät den Proxyserver umgehen, um die Anmeldeseite für Netzwerke mit einem Captive-Portal anzuzeigen | When active

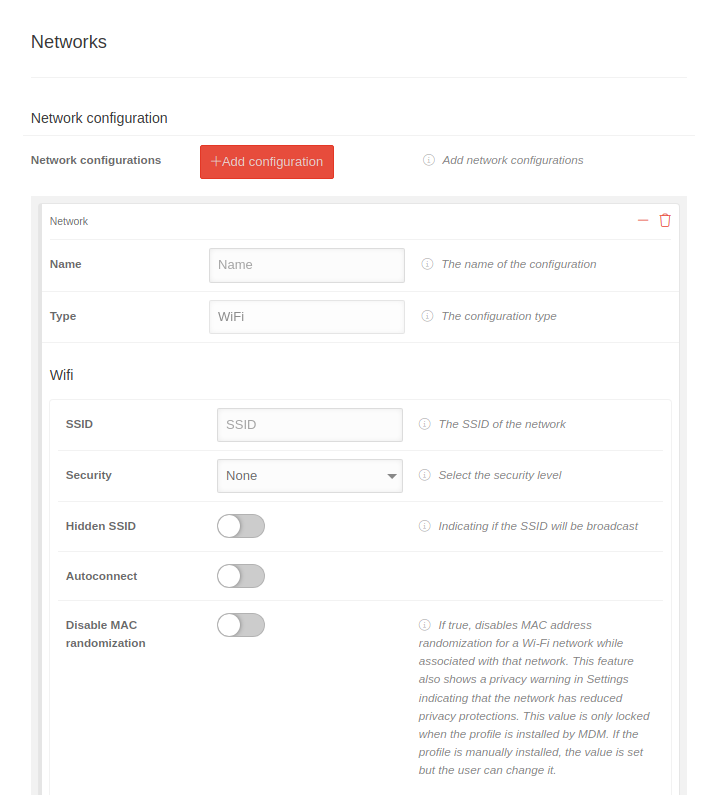

    Networks

    Networks

    In this section, access profiles for WiFi networks can be configured and pushed to the device.

    Network configuration
    Caption Value Description
    Network configurations
    Network configurations  Add configuration Network configuration
    Name Name Name of the configuration
    Type WiFi Configuration type (WiFi predefined)
    Wifi
    SSID SSID The SSID of the network
    Security Security level of the network key
    None No security
    WEP-PSK Insecure
    WPA-PSK Secure
    Password Password Password of the account for the server
    Hidden SSID    When activated   , the network's SSID is hidden
    Autoconnect    When activated   , the device automatically connects to the network
    Deactivate MAC randomisation    When activated   , the devices always identify themselves with the same MAC address in a network. Cannot be changed by the user.
    This function also displays a data protection warning in the settings that the network has limited data protection.
    This value is only locked if the profile is installed via an MDM.
    If the value is set with the Apple Configurator, for example, it can be changed by the user.

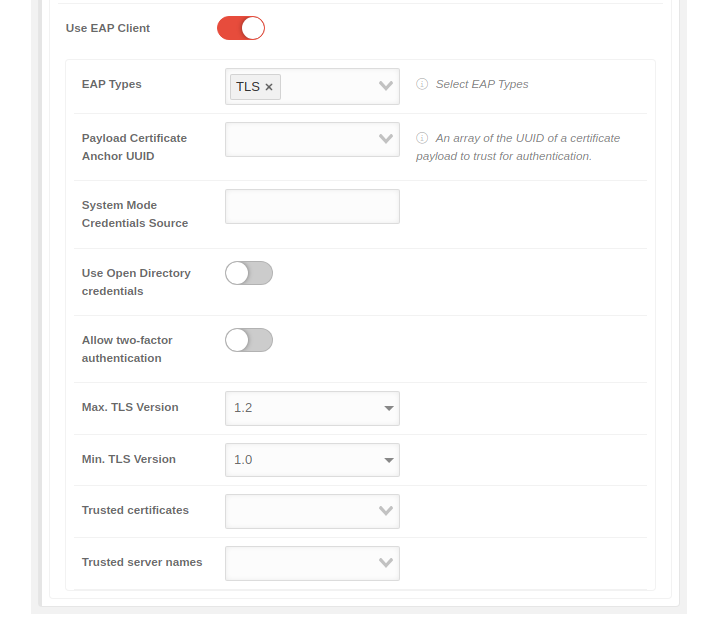

    EAP-Client / WPA2 Enterprise

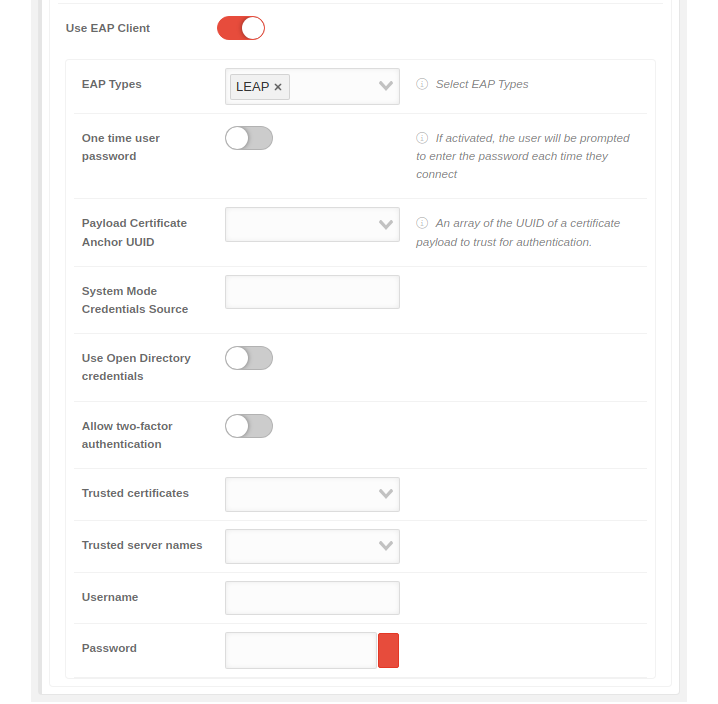

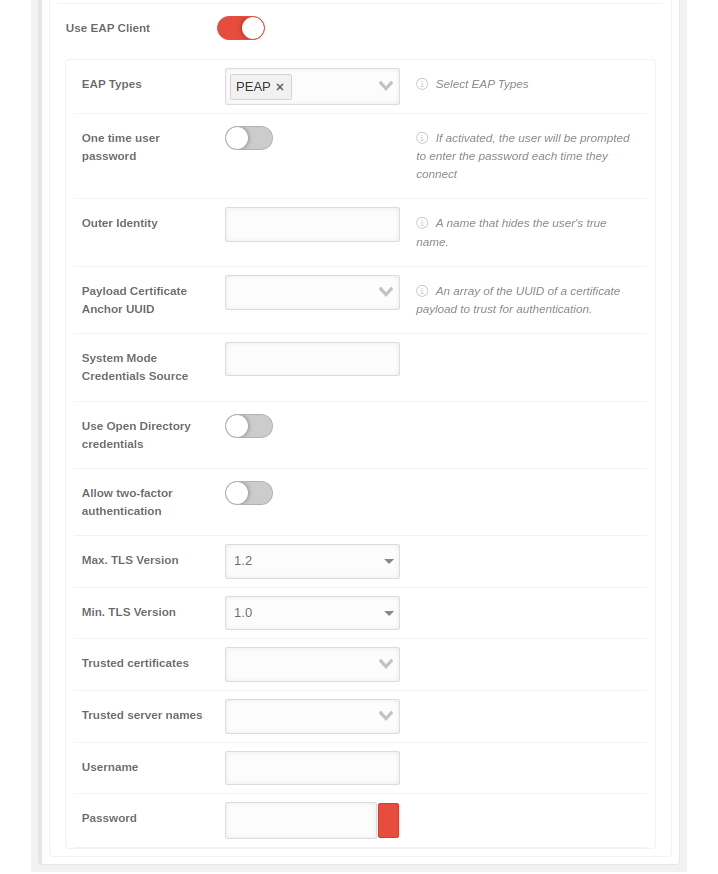

    Use EAP Client    When activated   , the EAP client, the WPA2 Enterprise, can be used

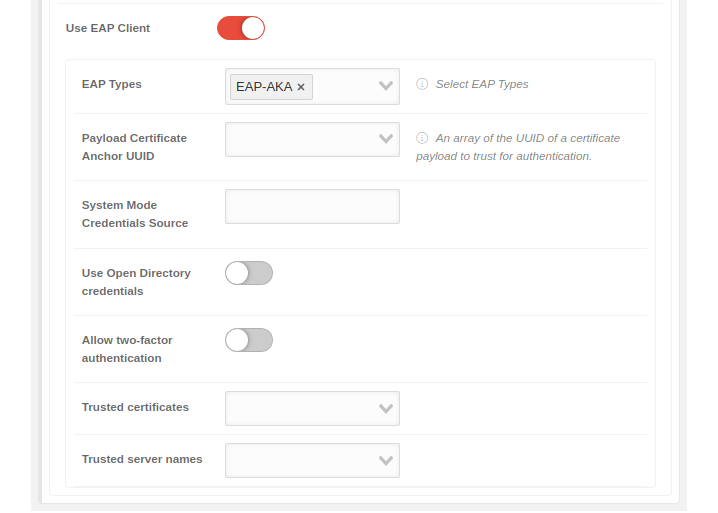

    Available options for the EAP type EAP-AKA. Additional options will be available for other EAP types
    EAP Types Select EAP Types The EAP type is selected. Several types can be selected.
    The choices are:
    Payload Certificate Anchor UUID
    		    The certificate that is handed to the server by the client as authentication when logging on to the WLAN.
    Apple: An array of the UUID of a certificate payload to trust for authentication

    notempty
    New as of: 2.7
    The user certificate $user_cert$ can be used
    System Mode Credentials Source     The server for the system mode credentials
    Use Open Directory credentials    When activated    logging in through Open Directory is possible
    Allow two-factor authentication    When activated   , two-factor authentication is possible
    Trusted certificates
    		    The certificates that are to be trusted are entered.
    These certificates must first be stored in the  Mobile Security  Certificate
    notempty
    New as of: 2.7
    The user certificate $user_cert$ can be used
    Trusted server names     The names of the servers that are to be trusted are entered

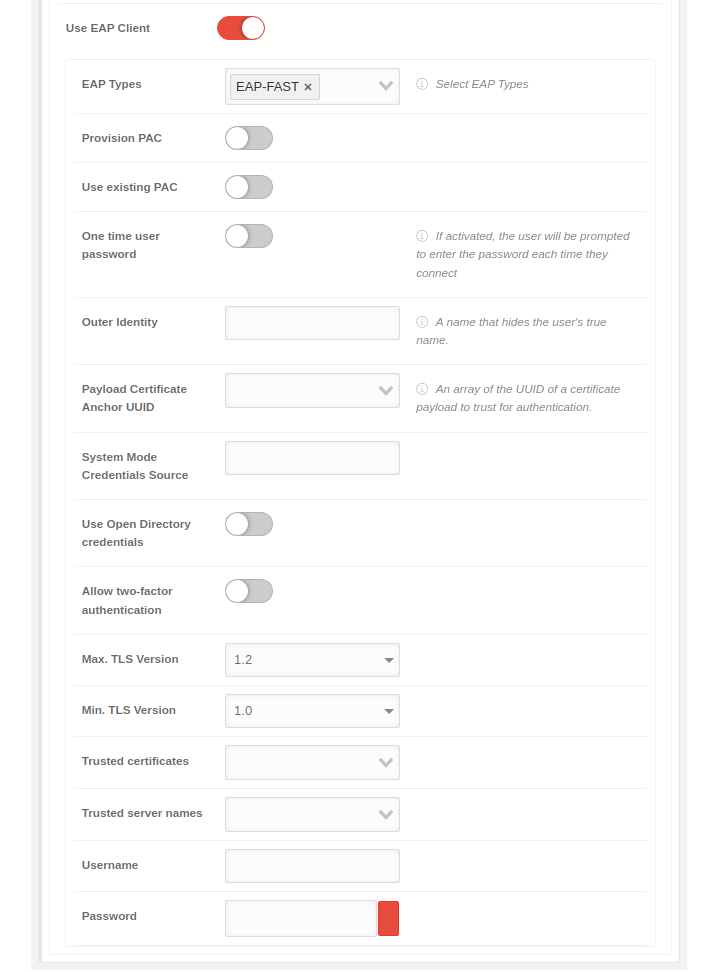

    Provision PAC    When activated    PAC will be provided
    Provision anonymously
    Displayed when Provision PAC is activated.    		    When activated    PAC will be provided anonymously
    Use existing PAC    When activated    existing PAC will be used
    One time user password    If activated   , the user will be prompted to enter the password each time they connect
    Outer Identity     A name that hides the user's true name
    Max. TLS Version 1.2
    default    		 The maximum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    Min. TLS Version 1.0
    default    		 The minimum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    Username     Username of the account for the server
    Password     Password of the account for the server

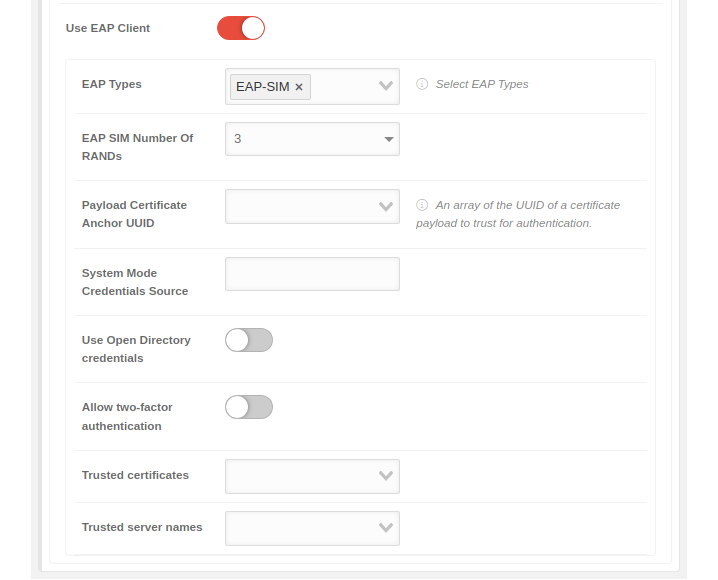

    EAP SIM Number Of RANDs 3
    default    		 The number of EAP SIMs of the RANDs is selected
    One time user password    If activated   , the user will be prompted to enter the password each time they connect
    Username     Username of the account for the server
    Password     Password of the account for the server
    One time user password    If activated   , the user will be prompted to enter the password each time they connect
    Outer Identity     A name that hides the user's true name
    Max. TLS Version 1.2
    default    		 The maximum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    Min. TLS Version 1.0
    default    		 The minimum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    Username     Username of the account for the server
    Password     Password of the account for the server
    Max. TLS Version 1.2
    default    		 The maximum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    Min. TLS Version 1.0
    default    		 The minimum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    One time user password    If activated   , the user will be prompted to enter the password each time they connect
    Outer Identity     A name that hides the user's true name
    Max. TLS Version 1.2
    default    		 The maximum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2
    Min. TLS Version 1.0
    default    		 The minimum TLS version is selected.
    The choice is:
    • 1.0
    • 1.1
    • 1.2

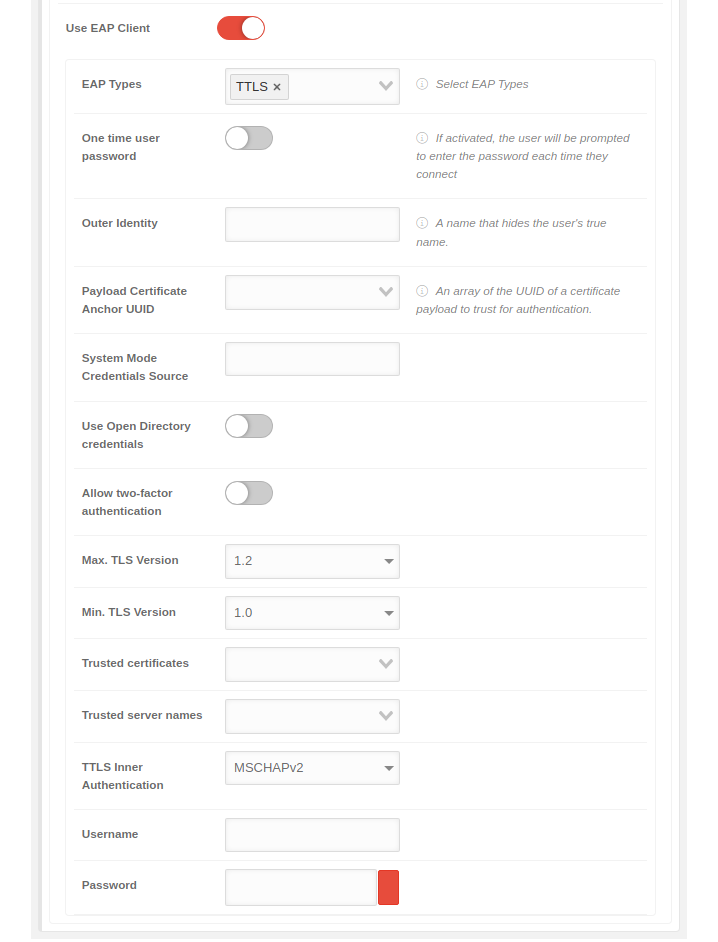

    TTLS Inner Authentication MSCHAPv2
    default    		 The inner authentication of TTLS is selected.
    The choices are:
    • PAP
    • EAP
    • CHAP
    • MSCHAP
    • MSCHAPv2
    Username     Username of the account for the server
    Password     Password of the account for the server

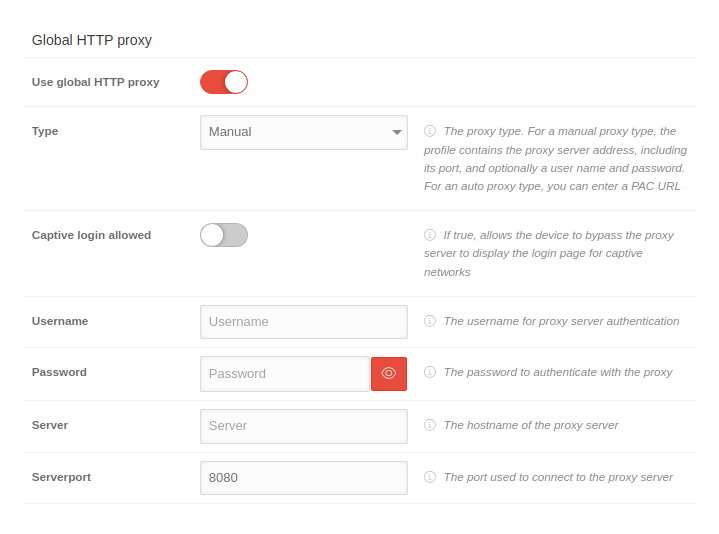

    Global HTTP proxy
    A Global HTTP proxy can be configured, for example, if devices are permanently on the same network and a local proxy is to be used on the device.
    Especially recommended for devices that only have an MDM license. These can then use, for example, the protection functions of a Securepoint UTM with web filter, etc.
    Global HTTP proxy configuration
    Use global HTTP proxy    When activated    the global HTTP proxy is used
    Type Manual
    Automatic    		 For a manual proxy type, the profile contains the proxy server address, including the port, and optionally a user name and password. For an auto proxy type, you can enter a PAC URL.
    Allow captive login   
    Username Username The username used to authenticate to the proxy server
    Password Password The password used for authentication to the proxy server
    Server Server The network address of the proxy server
    Server port 8080 The port used to connect to the proxy server

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden





































































































    Email & Exchange Active Sync

    Email & Exchange Active Sync
    Email accounts
    Email accounts
     Add account Multiple mail accounts can be set up in the Email settings section.
    These settings affect IMAP or POP3 accounts. Settings for Exchange ActiveSync must be made in the corresponding menu item!
    Caption Value Description
    Email settings
    Account description Account description The display name of the account (e.g. "Company Mail Account")
    Account name Account name Name of the user to be displayed
    Variables can be used as well.
    Show variables overview
    hide
    Klicken für dauerhafte Anzeige


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.

    The display name can be combined with the variable %device_user_name%. The variable reads from the user settings of the user to whom the respective device is assigned the fields first name and last name. e.g.: %device_user_name% | ttt-Point AG → Martin Müller | ttt-Point AG
    Email address Email address The address of the account (e.g. "john@company.com")
    The entry $emailaddress$ reads the email address from the user settings of the user to whom the device is assigned.
    Variables can be used as well.

    The entries $variable1$, $variable2$ and $variable3$ can be defined individually.
    Show variables overview
    hide
    Klicken für dauerhafte Anzeige


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.
    Prevent move
    		   If set to true, messages may not be moved out of this email account into another account
    Disable email recipient synchronization
    		   If set to true, this account is excluded from address "recent" syncing
    Allow Mail drop
    		   If set to true, this account is allowed to use Mail drop
    Prevent App Sheet
    		   If set to true, this account will not be available for sending mail in third party applications
    S/MIME Enabled    If set to true, this account will support S/MIME Weitere Konfigurationen einblenden, wenn S/MIME aktiviert    aktiv ist
    S/MIME signing enabled    If set to true, this account will enable message signing Weitere Konfigurationen einblenden, wenn S/MIME Signierung aktiviert    aktiv
    S/MIME signing certificate Keins The UUID of the certificate used to sign messages sent by this user
    S/MIME Verschlüsselung aktiviert    If set to true, this account will support message encryption Weitere Konfigurationen einblenden, wenn S/MIME Verschlüsselung aktiviert    aktiv
    S/MIME encryption certificate Keins The UUID of the certificate used to decrypt received messages
    S/MIME enable Per-Message Switch    If set to true, enables the per-message encryption switch
    Incoming mails
    Caption Value Description
    Mail server Mail server Hostname or IP address
    Port 993 Port number for incoming mail
    Account type IMAP

    POP    		 The protocol for accessing the email account
    Username None The username used to connect to the server for incoming emails
    Variables can be used as well.
    $emailaddress$, $username$, $variable1$, $variable2$, $variable3$
    Show variables overview
    hide
    Klicken für dauerhafte Anzeige


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.

    Examples:
    • The email user name is identical to the device user name: ttt-point.local\%device_user_username%
    • The email user name is stored in the user settings as variable1: ttt-point.local\%variable1%
    Path prefix Path prefix Path prefix for IMAP mail server
    Incoming Mail Server authentication Password The authentication method for the incoming mail server
    None
    Password
    CrammD5
    NTLM
    HTTPMD5
    Password Password The password for the incoming mail server
    Use SSL    Incoming email retrieval via Secure Socket Layer
    Outgoing mails
    Caption Value Description
    Mail server     Hostname or IP address for outgoing email
    Port 587 The port number for outgoing email
    Username     The username used to connect to the server for outgoing mail
    Variables can be used as well. $emailaddress$, $username$, $variable1$, $variable2$, $variable3$
    Show variables overview
    hide
    Klicken für dauerhafte Anzeige


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.

    Examples:
    • The email user name is identical to the device user name: ttt-point.local\%device_user_username%
    • The email user name is stored in the user settings as variable1: ttt-point.local\%variable1%
    authentication type Password The authentication method for the outgoing mail server
    None
    CrammD5
    NTLM
    HTTPMD5
    Outgoing Password: Same as incoming    SMTP authentication uses the same password as POP/IMAP server for incoming emails Weitere Konfigurationen einblenden, wenn Ausgehendes Passwort    deaktiviert ist
    Password Password The password for the outgoing mail server
    Use SSL    Send outgoing email through Secure Socket Layer
    Exchange accounts
    Exchange accounts
     Add account Configuration for Exchange mails retrieved via https connections
    Caption Value Description
    Settings Exchange ActiveSync
    Account name     The display name of the user (e.g. "John Appleseed"). Different variables can be used.
    Show variables overview
    hide
    Klicken für dauerhafte Anzeige


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.
    Exchange ActiveSync Host Enter host Host name or IP address of the Exchange server
    Past days of mail to sync For ever Synchronization period
    Use SSL    Encrypts all messages with SSL (Secure Socket layer)
    Email address None The address of the account to be synchronized (e.g. "john@company.com") Variables can be used as well.

    The entries $variable1$, $variable2$ and $variable3$ can be defined individually.
    Show variables overview
    hide
    Klicken für dauerhafte Anzeige


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.
    Domain\User     Mail domain and mail user
    • The field must remain empty if the device should ask.
    • If the domain should be entered automatically, this can be configured on the server.
    • Variables can be used as well.
      $emailaddress$, $username$, $variable1$, $variable2$, $variable3$
      Show variables overview
      hide
      Klicken für dauerhafte Anzeige


      In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
      Diese Seite wird auf folgenden Seiten eingebunden






























      The values are taken from the user settings of the user to whom the respective device is assigned
      Variable name in profiles Description Example
      $username$
      alternative names:
      %device_user%
      %device_user_username%
      		Username jdoe
      $emailaddress$
      alternative name:
      %device_email%
      		Email address jdoe@ttt-point.de
      $firstname$
      alternative name:
      %device_user_firstname%
      		First name John
      $lastname$
      alternative name:
      %device_user_lastname%
      		Last name Doe
      $name$
      alternative name:
      %device_user_name%
      		First name and surname John Doe
      $variable1$
      alternative name:
      %variable1%
      		custom value jdoe/ttt-point.local
      $variable2$
      alternative name:
      %variable2%
      		custom value
      $variable3$
      alternative name:
      %variable3%
      		custom value
      $device_name$
      alternative name:
      %device_name%
      		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
    • This variable can also be used in iOS profiles in the Shared device section
      		•  Cell phone from Markus Müller
      $device_alias$
      alternative name:
      %device_alias%
      		Only for   iOS: The alias assigned in the portal.
      If the alias is not assigned, the device_name is displayed.
    • This variable can also be used in iOS profiles in the Shared device section
      		•  Tablet Storage1
      Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
      To avoid input errors, different variable names are possible for compatibility reasons.
      A distinction between Android and iOS is no longer necessary.
      Examples:
      • The email user name is identical to the device user name: ttt-point.local\%device_user_username%
      • The email user name is stored in the user settings as variable1: ttt-point.local\%variable1%
    Password Password The password for the account
    Use OAuth    Specifies whether the connection should use OAuth for authentication.
    notempty
    If OAuth is specified, the password field should remain blank
    Weitere Konfigurationen einblenden, wenn OAuth benutzen    aktiviert ist
    OA­uth-An­mel­de-URL URL Die OAuth-Anmelde-URL
    OA­uth-To­ken-An­for­de­rungs-URL URL Die OAuth-Token-Anforderungs-URL
    Payload certificate UUID
    		 None UUID of the certificate that is used for authentication
    notempty
    New as of: 2.7
    The user certificate usercertuser_certuserc​ert can be used
    Prevent move
    		   If set to true, messages may not be moved out of this email account into another account
    Prevent App Sheet
    		   If set to true, this account will not be available for sending mail in third party applications
    Allow Mail drop
    		   If set to true, this account is allowed to use Mail Drop
    S/MIME Enabled
    		   If set to true, this account will support S/MIME
    S/MIME Verschlüsselung aktiviert
    		    If set to true, this account will support message encryption
    S/MIME encryption overridable
    		    Allow users to enable or disable S/MIME encryption
    S/MIME signing enabled
    		    If set to true, this account will enable message signing
    S/MIME signing overridable
    		    Allow users to enable or disable S/MIME signing
    S/MIME signing certificate
    		 None The UUID of the certificate used to sign messages sent by this user
    notempty
    New as of: 2.7
    The user certificate usercertuser_certuserc​ert can be used
    S/MIME signing certificate overridable
    		    Allow users to change the S/MIME signing certificate
    S/MIME encryption certificate
    		 None The UUID of the certificate used to decrypt received messages
    notempty
    New as of: 2.7
    The user certificate usercertuser_certuserc​ert can be used
    S/MIME encryption certificate overridable
    		    Allow users to change the S/MIME encryption certificate
    S/MIME enable Per-Message Switch
    		    If set to true, enables the per-message encryption switch
    Disable email recipient synchronization    If this value is set to true, this account will be excluded from the synchronization of the "Recent" addresses
    Activate calendar    Activate calendar
    Calendar overwritable    Allow account to enable/disable calendar
    Enable/disable contacts    Enable contacts
    Contacts overwritable    Allow account to enable/disable contacts
    Enable email    Enable email
    Mail overwritable    Allow account to enable/disable mail
    Enable notes    Enable notes
    Notes overwritable    Allow account to enable/disable notes
    Enable reminders    Enable reminders
    Reminders overwritable    Allow the account to enable/disable reminders
    Overwrite previous password    Overwrite previous password
    Audio calls Enter ID The bundle ID of the application that processes audio calls made to contacts from this account

    Example: Office365 accounts
    Example: Office365 accounts

    Example: Integration of an Office 365 account with OAuth

  • OAuth only works with ActiveSync
    Configuration in the Email & Exchange Active Sync tab when adding an Exchange Account
  • The OAuth data of other providers can be obtained exclusively and directly from these providers
    • Caption Value Description
    Account name Account name Name of the user to be displayed
    Exchange ActiveSync Host outlook.office365.com Example for Office365
    Past days of mail to sync For ever Possible values: 1 day, 3 days, 1 week, 2 weeks, 1 month, forever
    Use SSL    Incoming email retrieval via Secure Socket Layer
    notempty
    Securepoint recommends to activate the option
    Email address alice@ttt-point.onmicrosoft.de Possible addresses are selectable from the dropdown menu incl. variables that take the information from the user data
    Domain\User alice@ttt-point.onmicrosoft.de The previously selected e-mail address of the user
    Password     The password for the email account on the mail server
    notempty
    If OAuth is specified, the password field should remain blank
    Use OAuth    Specifies whether the connection should use OAuth for authentication.
  • Must be activated on the mail server!
  • If OAuth is specified, the password field should remain blank
    • OAuth login URL https://login.microsoftonline.com/common/oauth2/v2.0/authorize Login URL
    Here shown for Office365 accounts (example)
    OAuth token request URL https://login.microsoftonline.com/common/oauth2/v2.0/token OAuth token request URL
    Here shown for Office365 accounts (example)
    Payload certificate UUID: None If the authentication on the Exchange server is to be done with a certificate, this can be selected here.
    Show important notes about this option
    hide
    Klicken für dauerhafte Anzeige

    notempty
    The certificate must be added under  Mobile Security   Certificate beforehand.
    Detailed information on this can be found in the wiki for certificates

    Additionally, in the Certificates tab, the desired certificate must be added in the click box to be transferred to the device.

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden























    Calendar

    Calendar
    Calendar with user account
    Calendar with user account Variables can be used as well.


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.

    User  Add account
    Caption Value Description
    Calendar with user account
    Hostname Hostname Server address of the calendar
    Username Username The username for the login
    The entries $emailaddress$, $username$, $variable1$, $variable2$ and $variable3$ are also possible.
    Password Password Optional. The password of the user
    Use SSL    Enable Secure Socket Layer communication with the CalDAV server
    Port Port Optional. The port of the server to which the connection is made.
    Main URL Main URL The URL to the user's calendar.
  • In iOS/iPadOS, this URL is required when the user does not provide a password, because the service auto-detection fails and the account is not created. Optional.
    • Account description Account description Optional. The description of the account.


    Add subscription
    Subscribed calendar Variables can be used as well.


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.

    Subscriptions  Add subscription
    Caption Value Description
    Subscribed calendar
    Hostname Hostname Server address of the calendar
    Username Username The username for the login
    The entries $emailaddress$, $username$, $variable1$, $variable2$ and $variable3$ are also possible.
    Password Password Optional. The password of the user
    Use SSL    Enable Secure Socket Layer communication with the CalDAV server
    Account description Account description Optional. The description of the account.

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






















    CardDav

    CardDav
    Variables can be used as well.


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden






























    The values are taken from the user settings of the user to whom the respective device is assigned
    Variable name in profiles Description Example
    $username$
    alternative names:
    %device_user%
    %device_user_username%
    		Username jdoe
    $emailaddress$
    alternative name:
    %device_email%
    		Email address jdoe@ttt-point.de
    $firstname$
    alternative name:
    %device_user_firstname%
    		First name John
    $lastname$
    alternative name:
    %device_user_lastname%
    		Last name Doe
    $name$
    alternative name:
    %device_user_name%
    		First name and surname John Doe
    $variable1$
    alternative name:
    %variable1%
    		custom value jdoe/ttt-point.local
    $variable2$
    alternative name:
    %variable2%
    		custom value
    $variable3$
    alternative name:
    %variable3%
    		custom value
    $device_name$
    alternative name:
    %device_name%
    		Only for   iOS: The name assigned on the phone (see: Settings → General → Info → Name)
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Cell phone from Markus Müller
    $device_alias$
    alternative name:
    %device_alias%
    		Only for   iOS: The alias assigned in the portal.
    If the alias is not assigned, the device_name is displayed.
  • This variable can also be used in iOS profiles in the Shared device section
    		•  Tablet Storage1
    Defining the values in the user administration in the portal under:  General  Users or for the device alias in the device tile.
    To avoid input errors, different variable names are possible for compatibility reasons.
    A distinction between Android and iOS is no longer necessary.

    User  Add account
    Caption Value Description
    Include address books
    Hostname Hostname The CardDAV server hostname or IP address
    Username Username The CardDAV username
    The entries $emailaddress$, $username$, $variable1$, $variable2$ and $variable3$ are also possible.
    Password Password The CardDAV password
    Use SSL    When enabled   , the Secure Socket Layer communicates with the CardDAV server.
    Port Port The port number to connect to the CardDAV server
    Main URL Main URL The main URL for the CardDAV account
    Account description Account description The display name of the account (e.g. "Company CardDAV Account").

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden
















    Google account

    Google account
    Caption Value Description
    Google Accounts menu item
    User  Add account Adds a Google account.
    This also makes, for example, the history of Google searches or individual Google Maps configurations, such as special points, available on the device.
    Account description Account description The displayed name of the account (e.g. "Company Server Account").
    Account name Account name Full user name of the Google account
    Email address Email address The address of the account (e.g. "mdm.ttt-point@gmailcom")
    Addresses of created users (from  General  Users ) can be selected or freely entered.
    Audio calls Enter ID The bundle ID of the application that processes audio calls made to contacts from this account

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden
















    AirPrint

    AirPrint
    Caption Value Description
    AirPrint menu item
    Printer   Add printer Adds a printer configuration that should always be displayed
    IP address IP address The IP address of the AirPrint destination
    Resource path ipp/print The resource path associated with the printer. This corresponds to the rp parameter of the _ipps.tcp Bonjour record.
    For example: printers/Canon_MG5300_series, printers/Xerox_Phaser_7600 or ipp/print
    Port Port The port through which to connect to the printer
    Force TLS    Secures active AirPrint connections through Transport Layer Security (TLS) when it is    enabled.

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden














    Certificates

    Certificates

    Certificates are required, for example, to retrieve emails from an Exchange server with https or to confirm the authenticity of self-signed apps.

    Caption Values Description
    Certificates
    Activate certificates    After activation   , certificates can be added
    Certificates
    		Select certificates Selection of certificates, Base-64-encoded X.509 or PKCS#12, imported in the  Mobile Security  Certificate menu.
    Further information can be found in the Wiki article Certificates.
    notempty
    New as of: 2.7
    The user certificate $user_cert$ can be used


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden

























    Status reporting

    Status reporting

    Apple devices have various system information that (according to Apple's conception at least) can theoretically change.
    With Apple's declarative management, device information can be kept up to date in the portal via status reports.

    Here you can configure which of these values are automatically transmitted to the MDM portal when changes are made.
    The display in the device dashboard then does not need to be updated manually.

    The Changes are logged in the Operations Log menu item in the device details.

    notempty
    For privacy reasons, the options can be enabled or disabled individually.

  • For full functionality the iOS iPadOS tvOS version 16.1 is required
    • Caption Default Description Available as of version
    Menu option Status message
    Activate configuration    When activated   , the details of the status information can be specified.
    Model family    A string that describes the hardware family of the device, such as Mac, iPhone, or iPad. iOS 15.0 iPadOS 15.0
    Model identifier    A status report of the device’s hardware identifier. iOS 15.0 iPadOS 15.0
    Model name    A string that identifies the device’s marketing name, such as iPhone 12. iOS 15.0 iPadOS 15.0
    OS build version    A string that identifies the operating system’s build version on the device, such as 18F132. iOS 15.0 iPadOS 15.0
    OS family    A string that identifies the operating system family in use on the device, such as macOS or iOS. iOS 15.0 iPadOS 15.0
    OS version    A string that identifies the operating system’s version in use on the device, such as 15.0. iOS 15.0 iPadOS 15.0
    OS name    A string that identifies the operating system’s marketing name in use on the device, such as Catalina. iOS 15.0 iPadOS 15.0
    OS supplemental build version    Identifies the operating system’s build and rapid security response versions in use on the device (for example, 20A123a, or 20B27c). iOS 16.1 iPadOS 16.1
    OS supplemental extra version    Identifies the operating system’s rapid security response version in use on the device (for example, a). iOS 16.1 iPadOS 16.1
    Passcode compliance    If true, the passcode is in compliance with all passcode policies set on the device.
    If false, the passcode isn’t in compliance with one or more passcode policies set on the device.
    When there are no passcode policies on the device, this value true.    		 iOS 16.0 iPadOS 16.0
    Passcode presence    If true, a passcode is present on the device. If false, a passcode isn’t present on the device.
    When a passcode is present, the specific attributes of the passcode (length, number of complex characters, etc), isn’t reported.    		 iOS 16.0 iPadOS 16.0
    MDM installed apps
    		   Ein Statusbericht über die auf dem Gerät, vom MDM, installierten Anwendungen.
    Dauerhaft aktiviert, um die deklarative Verwaltung vollständig zu unterstützen (ab iOS 17)
    Dauerhaft aktiv für alle Declarative Device Management (DDM)-fähigen Apple-Geräte
    .    		 iOS 16.0 iPadOS 16.0

    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden







    Close Closes the tab without applying changes
     Save Applies the changes / new creation, saves and closes the tab


    In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
    Diese Seite wird auf folgenden Seiten eingebunden
















    Mobileconfig

    Mobileconfig
    Caption Value Description
    Mobileconfig menu item
    Mobileconfig
    		 Upload Opens a system dialog for uploading a mobile configuration from the Apple Configurator II
  • All values are purely for information. They are defined by the .mobileconfig and cannot be changed
    • Name Securepoint MDM Name of the configuration
    Type Configuration File type
    Version 1 Version of the file
    Identifier com.apple.mgmt.Externa… Can be set manually in the Apple Configurator (composed of the device name and a string)
    UUID cd222e1d-38ca-… Clear identification
     Replace Opens the dialog for importing a configuration that replaces an existing configuration
      Delete Deletes configuration from the devices
    Retrieved from "https://wiki.securepoint.de/index.php?title=MS/deployment/profile-User&oldid=102892"
