First login on a UTM

From Securepoint Wiki

























































}}















































Integration into the local network, initial registration and licensing

Last adaptation to the version: 14.0.2 (02.2025)

New:
notempty
This article refers to a Resellerpreview


Integration into the local network

Adjust IP addresses of the UTM via CLI

If administration via the CLI is not an issue, the IP adresses can be provided directly to the UTM via CLI
The monitor and keyboard is connected directly to the UTM.
The login is done on the console.


To be able to administer the UTM, the admin interface must be accessed via the IP of the UTM and the port of the admin interface via the interface LAN2.
In the factory settings, the UTM can be reached via https://192.168.175.1:11115.
If the IP or the interface cannot be reached from the local network, changes must be made.

  1. Connecting keyboard and monitor directly to the UTM
  2. Log in to the UTM: Username admin / Password: insecure
  3. the Command Line Interface appears.
  4. change network configuration:
    1. Determine the existing interfaces: interface get
    2. Determine the ID of the IP addresses: interface address get
      LAN2 corresponds to the internal interface through which the admin interface can be reached.
      The ID is needed for changing the IP address in the next step.
    3. Change the interface IPs: interface address set id 1 address 192.168.12.1/24
      system update interface       (desired IP of the internal network with subnet mask)
    4. Activate an interface: interface address new device LAN1 or A0 address 192.168.x.y/24
      system update interface
  5. Set up administration access:
    In the factory settings, access to the admin interface of the UTM is only possible via the internal interface LAN2. If the admin interface is to be accessible via another interface, the IP of the host (or a net IP with subnet mask) must be released:
    manager new hostlist 192.168.168.0/24
    system update rule     Here: All hosts in the network 192.168.168.0 (no matter at which interface) can access the admin interface
    Attention: If e.g. the IP 192.168.175.1 is at LAN1 or A0 and the admin interface should be called from a computer in the network at LAN1, the IP 192.168.175.x must be released extra nevertheless.
Adjust the IP address of your own computer

The IP address of your own computer is temporarily adapted to the default network of the internal interface of the UTM.
This is followed by connecting your own computer to interface A1 (the internal interface) of the UTM.

This is how it works

Change IP address on Windows
  • Display of network connections:
     r  ncpa.cpl
    ↵
  • Show status of Ethernet connection with double click
  • Show properties of the interface
  • Show properties of the TCP/IPv4 connection
  • Set IP address:
    • IP address:192.168.175.2
    • Subnet mask:255.255.255.0
    • Default gateway:192.168.175.1 (=Default address of the internal interface of the UTM)
IP-change Win Adapter-en.png
Display of the network interface:
  • Access via desktop display:
    • Click on the network icon in the taskbar next to the clock
    • Click on Network and Internet settings.
    • Click on Change adapter options.
  • Access by command:
    • Windows key  r  ncpa.cpl
  • Double-click on the interface used to display the status of the ethernet connection
IP-change Win Status Ethernet-en.png
  • In the status click on the button Properties
IP-change Win Eigenschaften-en.png
  • Select the entry Internet Protocol, Version 4 (TCP/IPv4) in the properties.
  • Click Properties button
IP-change Win IP statisch-en.png
  • Select entry Use the following IP address:
  • Set IP address:
    • IP address:192.168.175.2
    • Subnet mask:255.255.255.0
    • Default gateway:192.168.175.1 (=Default address of the internal interface of the UTM)











Change IP address on Linux

Please refer to the corresponding documentation of the used distribution.
Examples for Ubunutu:

  • Opening the terminal
  • Identify the name of the interface: ip a
  • Change IP address: (In the example enp0s3 is the interface used: sudo ip address add 192.168.175.2/24 dev enp0s3
Change IP address on a MAC

Change IP address on a MAC

IP-Adresse aendern mac.png
  • Menu System settings / network
  • Configure IPv4: ManuellLink= select in the dropdown menu
  • IP address:192.168.175.2
  • Subnet mask:255.255.255.0
  • Router:192.168.175.1 (=Default address of the internal interface of the UTM)
  • Button:Apply
notempty
After finishing the installation wizard and rebooting, the UTM is located in another network.
For further configuration, the IP address of your own computer must then be changed again.

Setting the original IP address:

  • Fixed IP Addresses: Enter as described above
  • Enable DHCP:
    • Windows: Properties Internet Protocol Version 4 (TCPIPv4) → select Obtain an IP address automatically
    • Linux: Example for Ubuntu: sudo ip address del 192.168.175.2/24 dev enp0s3
      sudo dhclient enp0s3
      If necessary, refer to the documentation of the distribution used.
    • MAC: coming soon...

First access

If not already done, the following connections must be made now physically:

  • Connect interface for the external interface (A0) towards the Internet (modem, router, etc.).
  • Connect the internal interface (A1)
    • with your own computer, if the IP address has been adjusted on it.
    • to the network from which the UTM is to be administered, if the IP address of the UTM has been adjusted.

  • The admin interface is available at port 11115. Access:
    https://192.168.175.1:11115 (Default) or
    https://172.16.0.1:11115, if the IP address of the UTM was changed to 172.16.0.1

    • When the admin interface is called up for the first time, a certificate warning appears in the browser.
    Since the browser doesn't know the certificate of the UTM, a security warning is issued.
    This warning must be ignored.

    UTM v12 Zertifikat-Firefox-en.png
    Message in Firefox: Warning: Potential security risk ahead
    Button Advanced / Accept the risk and continue
    UTM v12 Zertifikat-Chromium-en.png
    Message in Chrome / Chromium: This is not a secure connection. At the end click on Continue to IP address (unsure) .
    UTM v12 Zertifikat-Edge-en.png
    Message in Edge: Your connection isn't private. At the end click on Continue to IP address (unsure) .
    UTM v12 Zertifikat-Safari.png
    Message in Safari:
    Button Show details / Link Open this website












    First registration

    Caption Value Description UTM v14 Admin Login unlicensed-en.png
    UTM-Login (noch nicht lizensiert)
    User admin Login with the default login information of the factory settings: admin
    Password insecure Login with the default login information of the factory settings: insecure
     Login (admin)
    Agree to license agreement and privacy policy
    Accept
    		 The license agreement and privacy policy must be accepted by clicking the button. Datenschutzerklärung UTM Decline Accept UTM v12.6.2 ErsteSchritteAnmeldung Datenschutzerklaerung-en.pngThe privacy policy must be agreed to. Lizenzvereinbarung UTM Decline Accept UTM v12.6.2 ErsteSchritteAnmeldung Lizenzvereinbarung-en.pngThe license agreement must be agreed to.

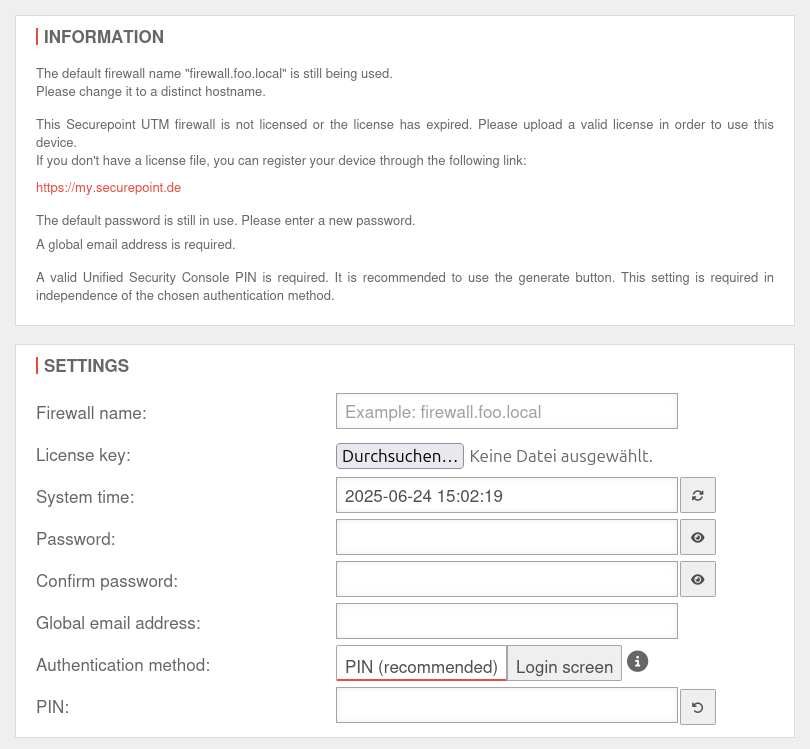

    Basic configurations
    Firewall name firewall.ttt-point.local An individual firewall name must be assigned.
  • The name should correspond to an FQDN.
    		•  Basic configurations UTMuser@firewall.name.fqdn License agreement Log out UTM v12.6.2 Grundlegende Einstellungen-en.png
    Basic configurations
    The fields displayed may vary depending on what information is already available on the UTM
    System time yyyy-mm-dd hh-m--ss The system time should be correct. It is compared with other servers, e.g. for user authentication (Kerberos, OTP, etc.). If the deviation is too large, for example, login will not be possible.
    License key Browse... Import valid license.
  • Each license key may only be used once. The UTM is identified via this and various services and configurations are assigned via the license key.
    • Global email address: notempty
    New as of v12.4.4
         		admin@ttt-point.de Required information e.g. for the mail connector and the proxy. Also serves as postmaster address for the mail relay.
    Authentication method: notempty
    New as of v12.5.1
         		PIN (recommended)Login mask Authentication method for Web sessions via USC
    The web session PIN also secures the use of the following actions within the scope of the USC:
    • Reboot
    • Shutdown
    • Factory settings
    • Importing cloud backups

    If the PIN is not used, these actions cannot be called up from the Unified Security Portal.

    PIN:     PIN as additional security for Websessions
    No number sequences or duplications are allowed
    Creates a secure PIN
    License agreement
    		 Displays the license agreement
    Privacy policy
    		 Displays the privacy policy
    Log out
    		 Logs off again.
    No settings are saved!
    Complete
    		 Completes the login process and opens the Welcome window.
    Welcome
    Basic settings are completed with the welcome dialog. Welcome UTMuser@firewall.name.fqdn Installation wizard Start tour UTM v12.6.2 ErsteSchritteAnmeldung Willkommen Dialog-en.pngWelcome dialog
    Installation wizard
    		 Starts the Installation Wizard.
    Start tour
    		 Starts a tour that explains the admin interface and menus in 15 steps.

    Configure interfaces

    notempty
    New as of v12.7.0
    Do you want to configure the interfaces now? Yes No This message appears if not all existing interfaces are configured correctly. However, it is recommended to do this to prevent possible problems. The Yes button opens the network configuration directly. UTM 12.7.0 Installationsassistent Meldung Schnittstellen konfigurieren-en.png
    Do not ask again. Off If this message is not desired, it can be set here so that it is not displayed again.
