Introduction

Toolbar under the side menu on the leftn
notempty
New placement of the menu in the toolbar as of v14.1.0

To check the network connections, various functions are provided on the web interface of the UTM via the toolbar under Network tools.

To close the dialog, either click again or use the button as an alternative.


Dialog with drop-down button
notempty
New as of v14.1.0
 The network tools are also displayed as a modal dialog at the bottom of the screen and can be displayed alongside other menus.
With a screen width of more than 1580 pixels, the dialog can also be displayed on the right-hand side of the screen.


In dieser Seite werden die Variablen für unterschiedliche Sprachen definiert.
Diese Seite wird auf folgenden Seiten eingebunden












Route

Route

By pressing the Submit button, the main routing table of the UTM is displayed.
Corresponds to the command ip route show table main executed as root on the UTM.

By default, the main routing table for IPv4 is displayed.
However, the routing table for IPv6 On can also be displayed.

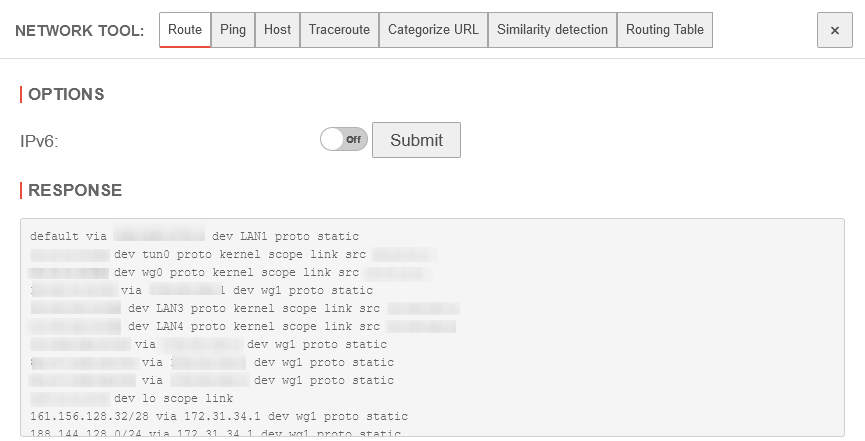

Network Tool - Route

Ping

Ping
The Ping can be used to check whether a certain host can be reached in an internal or external network.

No port filter rule is needed for this on the UTM from this point, but it is needed if pinging is to be done from a network device.

notempty
Not every destination allows icmp-echo-request!

Ping for IPv4

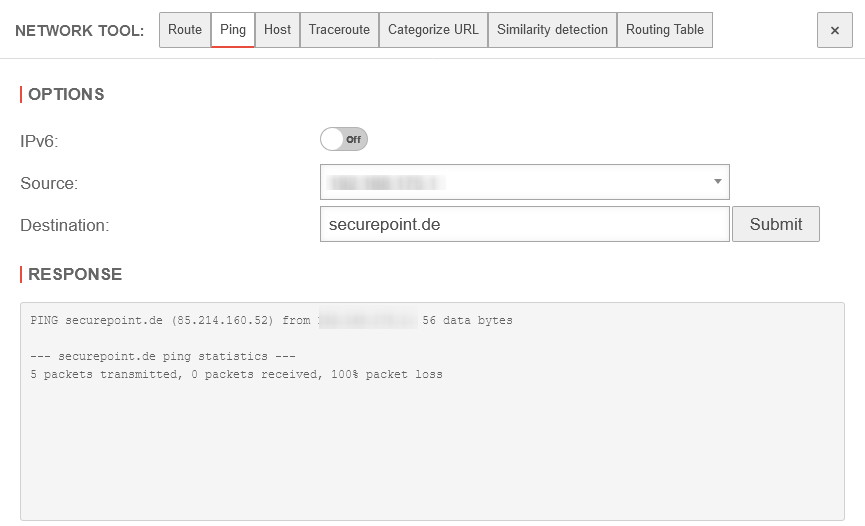

IPv4 Ping-Test
Options
IPv6 Off Remains deactivated during an IPv4 ping
Source 192.168.175.1 Selection of the IPv4 address to ping with
Destination k.root-servers.net Destination name or IP address
Submit Starts the ping test
Response
The root server k.dns-zone.net of the Ripe NCC

Ping for IPv6

Options
Caption Value Description

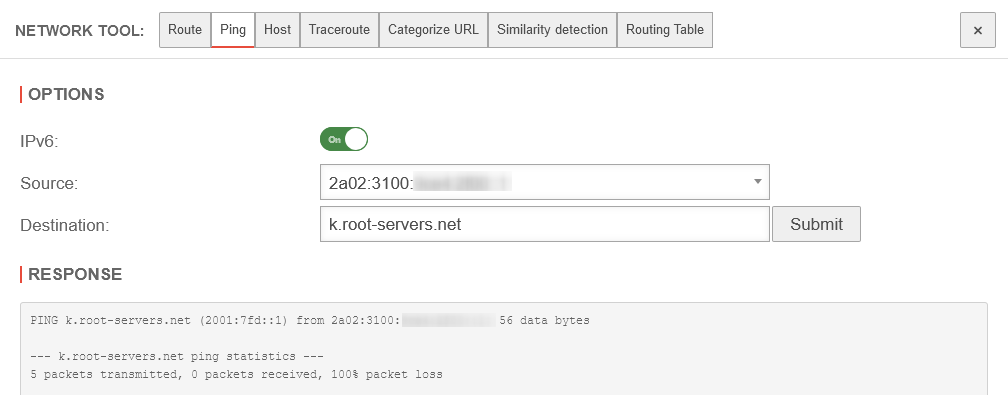

IPv6 Ping-Test
IPv6 On Enable for IPv6 to be used at all
IPv6 Ping-Test
Source: 2001:db08:aaaa:bbb00::1 Selection of the IPv6 address to be pinged with
Destination: k.root-servers.net Destination name or IP address
Submit Start Ping-Test
Response
The root server k.root-servers.net of the Ripe NCC should respond as shown in the picture

Host

Host
Options
Query type: Any All listed types are queried

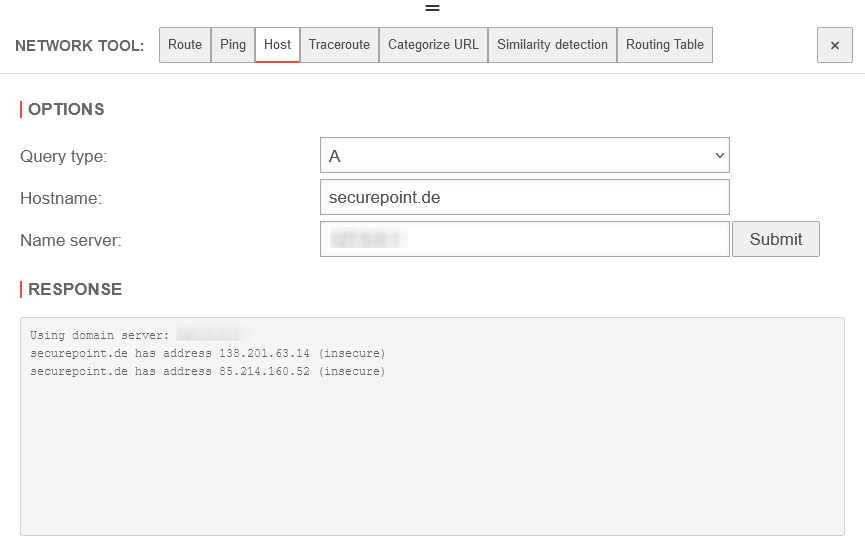

Network tools - Host
A The A-record specifies the IPv4 address for the specified host
AAAA The AAAA-record specifies the IPv4 address for the specified host
PTR Unlike forward DNS resolution (A and AAAA records), the PTR record is used to find domain names based on an IP address
MX The MX record specifies a mail exchange server for a DNS. The information is used by the Simple Mail Transfer Protocol (SMTP) to forward e-mails to the correct hosts.
TXT The TXT record can contain any unformatted text strings. This is used by the Sender Policy Framcework (SPF) to prevent forged emails from being sent.
SOA The SOA record specifies core information about a DNS zone, including the primary name server, the domain administrator's email, the domain serial number and several timers related to updating the zone
NS The NS record specifies an authoritative name server for a particular host
Hostname: securepoint.de Host that is to be requested
Nameserver: 127.0.0.1 Name server to be used. Here it is the UTM itself.
Response
Using domain server:
Name: 127.0.0.1
Address: 127.0.0.1#53
Aliases:
securepoint.de has address 51.89.43.189

Traceroute

Traceroute
Options
With this tool, the hops of a connection to the host can be made visible.

If, for example, a destination is not reachable, the last reachable IP address on the way could be determined.

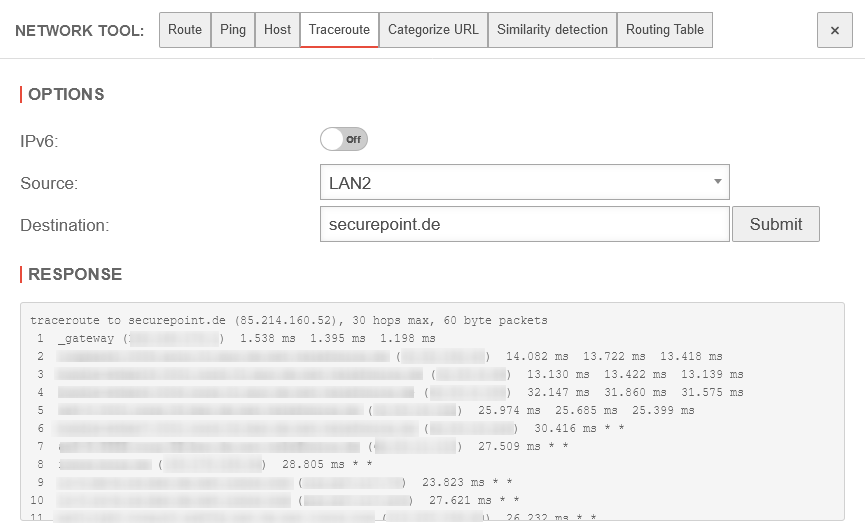

Network tools - Traceroute
IPv6: Off Set whether to use IPv6
Source:
notempty
New as of v14.0.0
 LAN1 Source from which the traceroute originates
Destination: k.root-servers.net Specification of the destination to be tracked with Traceroute
Response
Result of the Traceroute function

Categorize URL

Categorize URL
The URL filter categorises web pages and filters according to the specifications (content filter).

Here you can check how certain pages are categorised.

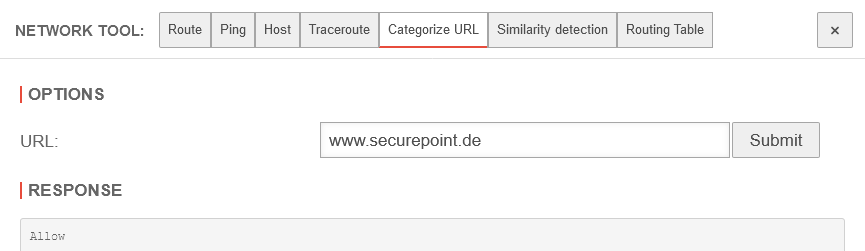

Network tools - Categorize URL
Options
URL: securepoint.de Website whose categorisation is to be queried
Response
Allow Categorisation by the content filter of the UTM

  • If there is any doubt about the categorisation of a URL, or if a change seems necessary, this can be reported at cf-support.securepoint.de.
  • An overview of the available categories can be found in our Wiki here.

    • Ähnlichkeitserkennung

    Ähnlichkeitserkennung
    notempty
    New as of v14.1.1 Experimentell


  • Diese Feature ist experimentell und sollte daher nur mit Bedacht verwendet werden!
    • Domains »securepoint.de »google.de »hansestadt-lueneburg.de »goooogle.de »lueneburger-heide.de Man kann mehrere Domains zugleich überprüfen lassen.

    Das Ergebnis hier:

    Nicht vertrauenswürdig:
    ❌ Die Domain "gooooogle.de" ähnelt der Domain "google.de".

    Vertrauensswürdige Domains:
    ✅ Die Domain "securepoint.de" ist eine vertrauenswürdige Domain.
    ✅ Die Domain "google.de" ist eine vertrauenswürdige Domain.
    ✅ Die Domain "hansestadt-lueneburg.de" ist eine vertrauenswürdige Domain.
    ✅ Die Domain "lueneburger-heide.de" ist eine vertrauenswürdige Domain.

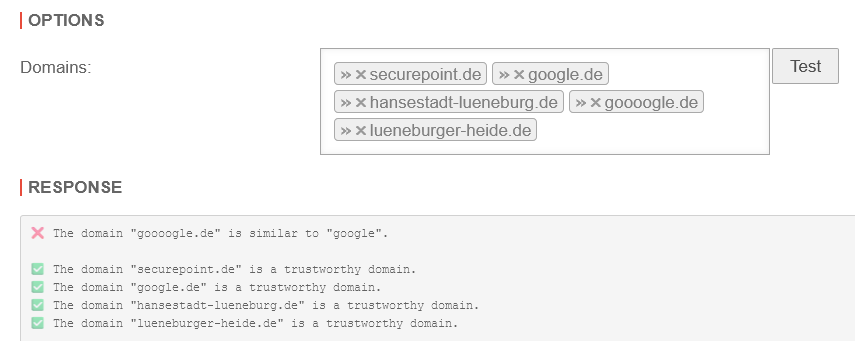

    Test von mehreren Domains
    Testen Startet die Ähnlichkeitserkennung für Domain-Namen

    Routing table

    Routing table
    Displays all routes stored on the UTM New since v12.2.2

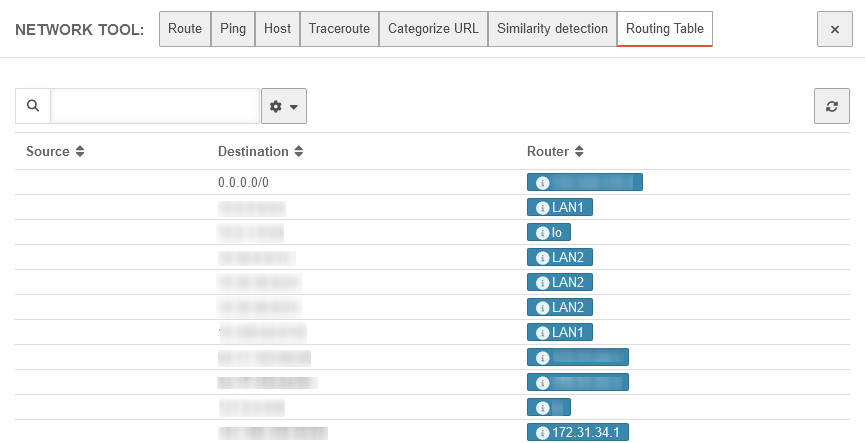

    Network tools - Routing table
