Using API Keys for UTM Monitoring

Last adaptation to the version: 2.14 (02.2026)

New:

notemptyThis article refers to a Beta version

-
Access: portal.securepoint.cloud General API Keys

API Keys enable authentication in the USC Portal for other applications.
The API keys have a defined scope that currently only includes metrics for monitoring.

Search Filters the display

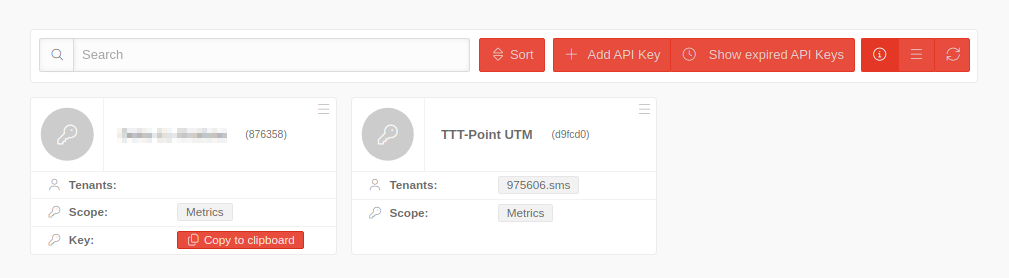

API Keys in the USC Portal

Name
Ascending/Descending Displays the search results alphabetically ascending/descending
 Add API Key Adding a new API Key
 Hide expired API keys API keys that have expired can be hidden using this button. These API keys have the label  Expired.

 Clients:
 Scope:
 :
notemptyNew as of: 2.14

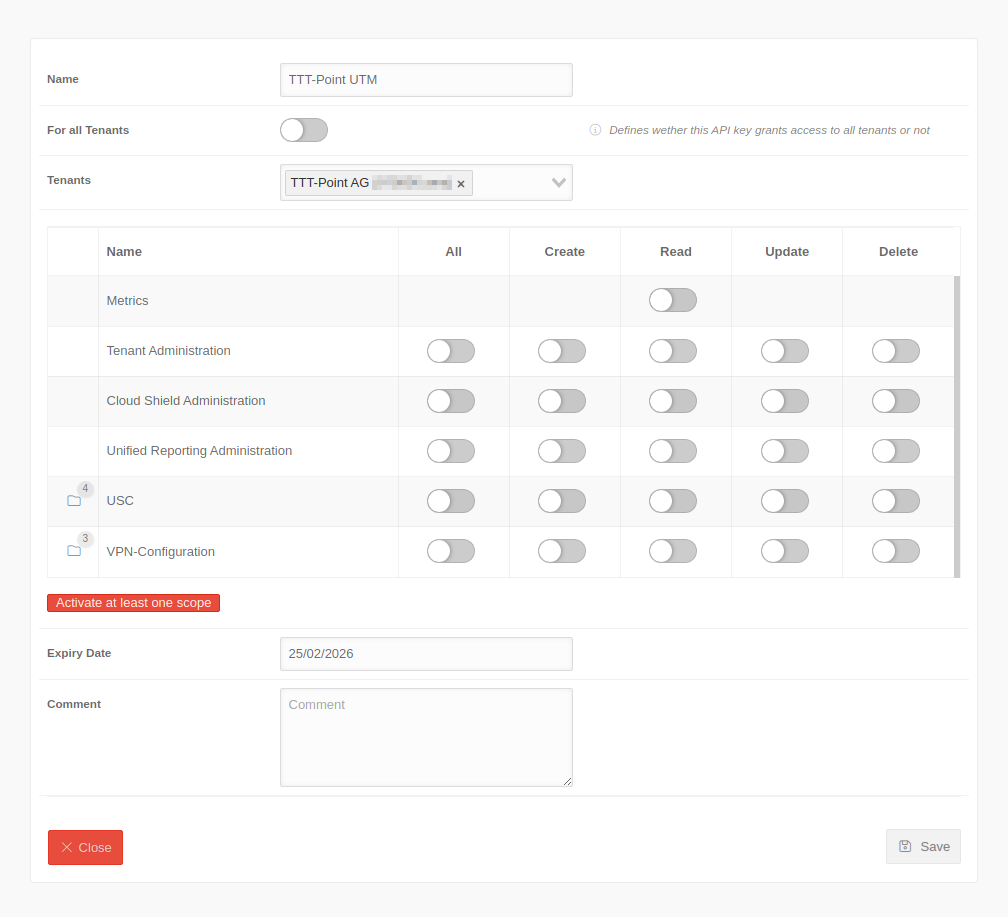

Add API Key

 Add API Key
Caption Value Description
API Key
Name UTMs TTT-Point Meaningful name for the API key
For all Tenants    When activated,    grants this API key access to all tenants
Clients TTT-Point AG Clients for which the API outputs values notemptyIf no client is specified, values for all clients and the reseller itself are output!
Scope notemptyNew as of: 2.14 Scope for the API key. Currently only Metrics available
 USC





Expiration date Choose a date An expiration date must be selected
In case the validity period is to be changed later, it is only possible to delete the API key
Comment     Free text field

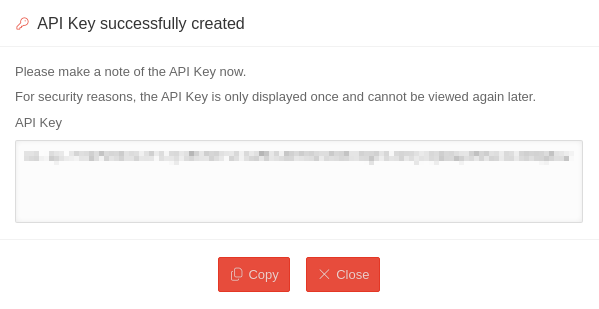

  Save Creates the API key and closes the dialog
  • The values for Client, Scope and Expiration Date cannot be changed afterwards.
    • notemptyNew as of: 2.14

    Example of use





  • Note

    This article includes descriptions of third-party software and is based on the status at the time this page was created.
    Changes to the user interface on the part of the manufacturer are possible at any time and must be taken into account accordingly in the implementation.
    All information without warranty.

    • The following example assumes a working installation of:
    • Linux VM
    • Prometheus (Opensource Monitoring)
    • Grafana (Open source application for graphical representation of data)
    • ngninx (Webserver)
    notemptyNo support from our support for third-party products
    We do not provide any support for these applications and cannot provide any support for installation or configuration.
    Only application scenarios for API Keys are shown here.


    Edit Prometheus configuration

    Open the configuration file of Prometheus e.g. with editor nano sudo nano /etc/prometheus/prometheus.yml

    Section scrape_configs: notemptyUpdated to 10.2025

    global: scrape_interval: 15s evaluation_interval: 15s scrape_configs: - job_name: 'securepoint_cloud_metrics_2.2' scrape_interval: 60s scrape_timeout: 30s metrics_path: '/sms-mgt-api/api/2.0/metrics' scheme: https bearer_token: 'eyJhbGciOiJIUzI1NiIsInR5c......' params: version: ['2.2'] static_configs: - targets: ['portal.securepoint.cloud']

  • The value of the API key (with apostrophes) is entered as bearer_token.

    • [[Datei: |hochkant=2|mini|]]

    Then save configuration and restart the service. sudo systemctl restart prometheus

    The command sudo systemctl status prometheus.service shows if the service could start correctly.
    Exit the result display with the q key

    Opening the Prometheus page in the menu Status / Targets in the browser should provide a result similar to the one shown opposite.



    Grafana Configuration

    Add data source
    • Calling up Grafana in the web browser
    • In the side menu: Connections
      In older versions burger menu top left
    • Menu Data soures
    • Button: Add new data source
    • Choose Prometheus
    • Enter the URL of the Prometheus server with port, e.g: http://localhost:9090
    • Save with Save & test


    Configure Grafana Dashboard
    Example 1 - Graphical representation
    Example 1
    UTMs online/offline/firmware version (graphical representation)
    [[Datei:]]
    The result should look similar to this dashboard.
    • in the menu
    • Button  Import
    • Enter the following code in the field Import via panel json:

    { "__inputs": [ { "name": "DS_PROMETHEUS", "label": "Prometheus", "description": "", "type": "datasource", "pluginId": "prometheus", "pluginName": "Prometheus" } ], "__elements": {}, "__requires": [ { "type": "panel", "id": "gauge", "name": "Gauge", "version": "" }, { "type": "grafana", "id": "grafana", "name": "Grafana", "version": "9.3.6" }, { "type": "datasource", "id": "prometheus", "name": "Prometheus", "version": "1.0.0" }, { "type": "panel", "id": "table", "name": "Table", "version": "" }, { "type": "panel", "id": "timeseries", "name": "Time series", "version": "" } ], "annotations": { "list": [ { "builtIn": 1, "datasource": { "type": "grafana", "uid": "-- Grafana --" }, "enable": true, "hide": true, "iconColor": "rgba(0, 211, 255, 1)", "name": "Annotations & Alerts", "target": { "limit": 100, "matchAny": false, "tags": [], "type": "dashboard" }, "type": "dashboard" } ] }, "editable": true, "fiscalYearStartMonth": 0, "graphTooltip": 0, "id": 16, "links": [], "liveNow": false, "panels": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "mode": "thresholds" }, "mappings": [], "thresholds": { "mode": "absolute", "steps": [ { "color": "text", "value": null }, { "color": "green", "value": 1 } ] } }, "overrides": [] }, "gridPos": { "h": 8, "w": 5, "x": 0, "y": 0 }, "id": 10, "options": { "orientation": "auto", "reduceOptions": { "calcs": [ "lastNotNull" ], "fields": "", "values": false }, "showThresholdLabels": false, "showThresholdMarkers": true }, "pluginVersion": "10.0.2", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "expr": "sum(utm_usc_online_total)", "legendFormat": "__auto", "range": true, "refId": "A" } ], "title": "UTMs online", "type": "gauge" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "mode": "thresholds" }, "mappings": [], "thresholds": { "mode": "absolute", "steps": [ { "color": "green", "value": null }, { "color": "red", "value": 1 } ] } }, "overrides": [] }, "gridPos": { "h": 8, "w": 5, "x": 5, "y": 0 }, "id": 9, "options": { "orientation": "auto", "reduceOptions": { "calcs": [ "lastNotNull" ], "fields": "", "values": false }, "showThresholdLabels": false, "showThresholdMarkers": true }, "pluginVersion": "10.0.2", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "expr": "sum(utm_usc_offline_total)", "legendFormat": "__auto", "range": true, "refId": "A" } ], "title": "UTMs offline", "type": "gauge" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "mode": "palette-classic" }, "custom": { "hideFrom": { "legend": false, "tooltip": false, "viz": false } }, "mappings": [], "unit": "none" }, "overrides": [] }, "gridPos": { "h": 8, "w": 4, "x": 10, "y": 0 }, "id": 8, "options": { "legend": { "displayMode": "table", "placement": "bottom", "showLegend": true, "values": [ "value", "percent" ] }, "pieType": "pie", "reduceOptions": { "calcs": [ "lastNotNull" ], "fields": "", "values": false }, "tooltip": { "mode": "single", "sort": "none" } }, "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "exemplar": false, "expr": "sum by (version) (utm_usc_online_status{last_contact!=\"-1\"})", "format": "heatmap", "hide": false, "instant": false, "interval": "", "legendFormat": "{{label_name}}", "range": true, "refId": "A" } ], "title": "Firmware - Verteilung", "type": "piechart" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "mode": "palette-classic" }, "custom": { "axisCenteredZero": false, "axisColorMode": "text", "axisLabel": "", "axisPlacement": "auto", "barAlignment": 0, "drawStyle": "line", "fillOpacity": 0, "gradientMode": "none", "hideFrom": { "legend": false, "tooltip": false, "viz": false }, "lineInterpolation": "linear", "lineWidth": 1, "pointSize": 5, "scaleDistribution": { "type": "linear" }, "showPoints": "auto", "spanNulls": false, "stacking": { "group": "A", "mode": "none" }, "thresholdsStyle": { "mode": "off" } }, "decimals": 0, "mappings": [], "thresholds": { "mode": "absolute", "steps": [ { "color": "green", "value": null }, { "color": "red", "value": 80 } ] }, "unit": "UTMs" }, "overrides": [] }, "gridPos": { "h": 8, "w": 10, "x": 14, "y": 0 }, "id": 5, "options": { "legend": { "calcs": [], "displayMode": "list", "placement": "bottom", "showLegend": true }, "tooltip": { "mode": "single", "sort": "none" } }, "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "expr": "sum by (accountname) (utm_usc_online_status)", "legendFormat": "__auto", "range": true, "refId": "A" } ], "title": "UTMs online", "type": "timeseries" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "fixedColor": "dark-green", "mode": "thresholds" }, "custom": { "align": "left", "cellOptions": { "type": "auto" }, "inspect": false }, "mappings": [ { "options": { "0": { "index": 0, "text": "OFFLINE" }, "1": { "index": 1, "text": "ONLINE" }, "-1": { "index": 2, "text": "⁣" } }, "type": "value" } ], "max": 1, "thresholds": { "mode": "absolute", "steps": [ { "color": "dark-red", "value": null }, { "color": "dark-green", "value": 1 } ] }, "unit": "none" }, "overrides": [ { "matcher": { "id": "byName", "options": "Status" }, "properties": [ { "id": "custom.cellOptions", "value": { "mode": "gradient", "type": "color-background" } }, { "id": "custom.width", "value": 77 }, { "id": "custom.align", "value": "center" } ] }, { "matcher": { "id": "byName", "options": "device_id" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "UTM im Unified Security Portal anzeigen", "url": "https://portal.securepoint.cloud/sms/#show-tenant-${__data.fields.Domäne}-usc-utms-${__data.fields.Geräte-ID}" } ] } ] }, { "matcher": { "id": "byName", "options": "last_contact" }, "properties": [ { "id": "unit", "value": "dateTimeFromNow" } ] }, { "matcher": { "id": "byName", "options": "update" }, "properties": [ { "id": "custom.cellOptions", "value": { "mode": "gradient", "type": "color-background" } }, { "id": "mappings", "value": [ { "options": { "none": { "color": "transparent", "index": 1, "text": "Nicht verfügbar" } }, "type": "value" }, { "options": { "pattern": "\\s*", "result": { "color": "transparent", "index": 0, "text": "Nicht verfügbar" } }, "type": "regex" }, { "options": { "pattern": ".+", "result": { "color": "dark-green", "index": 2 } }, "type": "regex" } ] } ] }, { "matcher": { "id": "byName", "options": "WebSession" }, "properties": [ { "id": "mappings", "value": [ { "options": { "0": { "index": 0, "text": "⁣" }, "1": { "index": 1, "text": "Starte WebSession" } }, "type": "value" } ] }, { "id": "links", "value": [ { "title": "Starte WebSession", "url": "" } ] } ] }, { "matcher": { "id": "byName", "options": "virusscanner_lastrun" }, "properties": [ { "id": "unit", "value": "dateTimeFromNow" }, { "id": "mappings", "value": [] } ] }, { "matcher": { "id": "byName", "options": "virusscanner_updated" }, "properties": [ { "id": "unit", "value": "dateTimeFromNow" } ] }, { "matcher": { "id": "byName", "options": "update_version" }, "properties": [ { "id": "mappings", "value": [ { "options": { "none": { "color": "green", "index": 3 } }, "type": "value" }, { "options": { "pattern": "\\d+.*", "result": { "color": "yellow", "index": 0 } }, "type": "regex" }, { "options": { "pattern": ".+", "result": { "color": "transparent", "index": 1 } }, "type": "regex" }, { "options": { "match": "empty", "result": { "color": "transparent", "index": 2 } }, "type": "special" } ] }, { "id": "custom.cellOptions", "value": { "mode": "gradient", "type": "color-background" } } ] }, { "matcher": { "id": "byName", "options": "Hostname" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "", "url": "https://${__value.text}:11115" } ] } ] } ] }, "gridPos": { "h": 8, "w": 24, "x": 0, "y": 8 }, "id": 3, "options": { "cellHeight": "sm", "footer": { "countRows": false, "fields": "", "reducer": [ "sum" ], "show": false }, "showHeader": true, "sortBy": [ { "desc": false, "displayName": "Domäne" } ] }, "pluginVersion": "10.0.2", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "exemplar": false, "expr": "sort(utm_usc_online_status)", "format": "table", "hide": false, "instant": true, "legendFormat": "__auto", "range": false, "refId": "A" } ], "title": "UTMs", "transformations": [ { "id": "organize", "options": { "excludeByName": { "Time": true, "__name__": true, "instance": true, "job": true }, "indexByName": { "Time": 4, "Value": 3, "__name__": 5, "accountname": 1, "device_id": 9, "hostname": 2, "instance": 13, "job": 14, "last_contact": 6, "tenant_domain": 0, "update_version": 8, "version": 7, "virusscanner_lastrun": 11, "virusscanner_status": 10, "virusscanner_updated": 12 }, "renameByName": { "Time": "", "Value": "Status", "__name__": "", "accountname": "Account-Name", "device_id": "Geräte-ID", "hostname": "Hostname", "instance": "", "job": "", "last_contact": "Letzter Kontakt", "name": "UTM-Name", "tenant_domain": "Domäne", "update": "Firmware-Update", "update_version": "Update-Version", "version": "Firmware-Version", "virusscanner_lastrun": "Virusscanner-Lauf", "virusscanner_status": "Virusscanner-Status", "virusscanner_updated": "Virusscanner-Update" } } }, { "disabled": true, "id": "calculateField", "options": { "alias": "WebSession", "mode": "reduceRow", "reduce": { "include": [ "Status" ], "reducer": "last" } } }, { "id": "convertFieldType", "options": { "conversions": [ { "destinationType": "number", "targetField": "Letzter Kontakt" }, { "destinationType": "number", "targetField": "virusscanner_lastrun" }, { "destinationType": "number", "targetField": "virusscanner_updated" } ], "fields": {} } }, { "id": "organize", "options": { "excludeByName": {}, "indexByName": { "Account-Name": 1, "Domäne": 0, "Firmware-Version": 6, "Geräte-ID": 8, "Hostname": 2, "Letzter Kontakt": 5, "Status": 4, "Update-Version": 7, "Virusscanner-Lauf": 9, "Virusscanner-Status": 11, "Virusscanner-Update": 10, "WebSession": 3 }, "renameByName": {} } } ], "type": "table" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "custom": { "align": "left", "cellOptions": { "type": "auto" }, "filterable": true, "inspect": false }, "mappings": [], "thresholds": { "mode": "absolute", "steps": [ { "color": "dark-red", "value": null }, { "color": "dark-orange", "value": 14 }, { "color": "dark-green", "value": 31 } ] } }, "overrides": [ { "matcher": { "id": "byName", "options": "Value" }, "properties": [ { "id": "custom.cellOptions", "value": { "mode": "gradient", "type": "color-background" } } ] }, { "matcher": { "id": "byName", "options": "Noch gültig" }, "properties": [ { "id": "unit", "value": "Tage" } ] }, { "matcher": { "id": "byName", "options": "NFR" }, "properties": [ { "id": "mappings", "value": [ { "options": { "false": { "index": 1, "text": "Nein" }, "true": { "index": 0, "text": "Ja" } }, "type": "value" } ] }, { "id": "custom.width", "value": 68 } ] }, { "matcher": { "id": "byName", "options": "Lizenz-Typ" }, "properties": [ { "id": "custom.width", "value": 116 } ] }, { "matcher": { "id": "byName", "options": "Lizenz-ID" }, "properties": [ { "id": "custom.width", "value": 89 } ] }, { "matcher": { "id": "byName", "options": "Lizenz-ID" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "Lizenz im Reseller-Portal anzeigen", "url": "https://my.securepoint.de/2.0/licenses/${__data.fields.Lizenz-ID}" } ] } ] }, { "matcher": { "id": "byName", "options": "license_uuid" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "UTM im Unified Security Portal anzeigen", "url": "https://portal.securepoint.cloud/sms/#show-tenant-${__data.fields.Domäne}-usc-utms-${__data.fields.Geräte-ID}" } ] }, { "id": "custom.width", "value": 108 } ] }, { "matcher": { "id": "byName", "options": "Domäne" }, "properties": [ { "id": "custom.width", "value": 102 } ] } ] }, "gridPos": { "h": 14, "w": 24, "x": 0, "y": 16 }, "id": 1, "options": { "cellHeight": "sm", "footer": { "countRows": false, "fields": "", "reducer": [ "sum" ], "show": false }, "showHeader": true, "sortBy": [ { "desc": false, "displayName": "Noch gültig" } ] }, "pluginVersion": "10.0.2", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "exemplar": false, "expr": "utm_license_days_valid > 0", "format": "table", "hide": false, "instant": true, "interval": "", "key": "Q-9474a811-7756-42b1-ba32-22e507638503-0", "legendFormat": "{{label_name}}", "range": false, "refId": "A" } ], "title": "Lizenzen", "transformations": [ { "id": "filterFieldsByName", "options": { "include": { "names": [ "accountname", "license_creation_date", "license_displayname", "license_expiration_date", "license_id", "license_nfr", "license_type", "license_user", "license_uuid", "permission_affix", "tenant_domain", "Value" ] } } }, { "id": "organize", "options": { "excludeByName": { "permission_affix": true }, "indexByName": { "Value": 3, "accountname": 1, "license_creation_date": 4, "license_displayname": 2, "license_expiration_date": 5, "license_id": 6, "license_nfr": 7, "license_type": 8, "license_user": 9, "license_uuid": 10, "permission_affix": 11, "tenant_domain": 0 }, "renameByName": { "Value": "Noch gültig", "accountname": "Account-Name", "license_creation_date": "Erstellt am", "license_displayname": "Lizenz-Name", "license_expiration_date": "Gültig bis", "license_id": "Lizenz-ID", "license_nfr": "NFR", "license_type": "Lizenz-Typ", "license_user": "Anzahl Benutzer", "license_uuid": "Geräte-ID", "permission_affix": "", "tenant_domain": "Domäne" } } } ], "type": "table" } ], "refresh": "5m", "schemaVersion": 38, "style": "dark", "tags": [], "templating": { "list": [] }, "time": { "from": "now-2d", "to": "now" }, "timepicker": {}, "timezone": "", "title": "USC Monitoring I", "uid": "r38u25RRz", "version": 2, "weekStart": "" }

    • Button Load
    • Select data source: Select a Prometheus data source
    • Button Import


    Example 2 - UTMs Tabular representation
    Example 2
    UTMs Tabular representation
    [[Datei:]]
    Dashboard with graphical display of the UTM (online/offline/firmware version)
    • in the menu
    • Button  Import
    • Enter the following code in the field Import via panel json:

    { "__inputs": [ { "name": "DS_PROMETHEUS", "label": "Prometheus", "description": "", "type": "datasource", "pluginId": "prometheus", "pluginName": "Prometheus" } ], "__elements": {}, "__requires": [ { "type": "panel", "id": "gauge", "name": "Gauge", "version": "" }, { "type": "grafana", "id": "grafana", "name": "Grafana", "version": "9.3.6" }, { "type": "datasource", "id": "prometheus", "name": "Prometheus", "version": "1.0.0" }, { "type": "panel", "id": "table", "name": "Table", "version": "" }, { "type": "panel", "id": "timeseries", "name": "Time series", "version": "" } ], "annotations": { "list": [ { "builtIn": 1, "datasource": { "type": "grafana", "uid": "-- Grafana --" }, "enable": true, "hide": true, "iconColor": "rgba(0, 211, 255, 1)", "name": "Annotations & Alerts", "target": { "limit": 100, "matchAny": false, "tags": [], "type": "dashboard" }, "type": "dashboard" } ] }, "editable": true, "fiscalYearStartMonth": 0, "graphTooltip": 0, "id": null, "links": [], "liveNow": false, "panels": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "mode": "palette-classic" }, "custom": { "axisCenteredZero": false, "axisColorMode": "text", "axisLabel": "", "axisPlacement": "auto", "barAlignment": 0, "drawStyle": "line", "fillOpacity": 0, "gradientMode": "none", "hideFrom": { "legend": false, "tooltip": false, "viz": false }, "lineInterpolation": "linear", "lineWidth": 1, "pointSize": 5, "scaleDistribution": { "type": "linear" }, "showPoints": "auto", "spanNulls": false, "stacking": { "group": "A", "mode": "none" }, "thresholdsStyle": { "mode": "off" } }, "decimals": 0, "mappings": [], "thresholds": { "mode": "absolute", "steps": [ { "color": "green", "value": null }, { "color": "red", "value": 80 } ] }, "unit": "UTMs" }, "overrides": [] }, "gridPos": { "h": 5, "w": 20, "x": 0, "y": 0 }, "id": 5, "options": { "legend": { "calcs": [], "displayMode": "list", "placement": "bottom", "showLegend": true }, "tooltip": { "mode": "single", "sort": "none" } }, "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "expr": "sum(utm_usc_online_status == 1)", "legendFormat": "__auto", "range": true, "refId": "A" } ], "title": "UTMs online", "type": "timeseries" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "mode": "thresholds" }, "decimals": 0, "mappings": [], "max": 100, "min": 0, "thresholds": { "mode": "absolute", "steps": [ { "color": "dark-red", "value": null }, { "color": "dark-green", "value": 100 } ] }, "unit": "string" }, "overrides": [] }, "gridPos": { "h": 5, "w": 4, "x": 20, "y": 0 }, "id": 7, "options": { "orientation": "auto", "reduceOptions": { "calcs": [ "last" ], "fields": "", "values": false }, "showThresholdLabels": false, "showThresholdMarkers": false }, "pluginVersion": "9.3.6", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "expr": "sum(utm_usc_online_status == 1)", "legendFormat": "__auto", "range": true, "refId": "A" } ], "title": "UTMs online", "type": "gauge" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "color": { "fixedColor": "dark-green", "mode": "thresholds" }, "custom": { "align": "left", "displayMode": "auto", "inspect": false }, "mappings": [ { "options": { "0": { "index": 0, "text": "OFFLINE" }, "1": { "index": 1, "text": "ONLINE" }, "-1": { "index": 2, "text": "⁣" } }, "type": "value" } ], "max": 1, "thresholds": { "mode": "absolute", "steps": [ { "color": "dark-red", "value": null }, { "color": "dark-green", "value": 1 } ] }, "unit": "none" }, "overrides": [ { "matcher": { "id": "byName", "options": "Status" }, "properties": [ { "id": "custom.displayMode", "value": "color-background" }, { "id": "custom.width", "value": 77 }, { "id": "custom.align", "value": "center" } ] }, { "matcher": { "id": "byName", "options": "device_id" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "UTM im Unified Security Portal anzeigen", "url": "https://portal.securepoint.cloud/sms/#show-tenant-${__data.fields.Domäne}-usc-utms-${__data.fields.Geräte-ID}" } ] } ] }, { "matcher": { "id": "byName", "options": "last_contact" }, "properties": [ { "id": "unit", "value": "dateTimeFromNow" } ] }, { "matcher": { "id": "byName", "options": "update" }, "properties": [ { "id": "custom.displayMode", "value": "color-background" }, { "id": "mappings", "value": [ { "options": { "none": { "color": "transparent", "index": 1, "text": "Nicht verfügbar" } }, "type": "value" }, { "options": { "pattern": "\\s*", "result": { "color": "transparent", "index": 0, "text": "Nicht verfügbar" } }, "type": "regex" }, { "options": { "pattern": ".+", "result": { "color": "dark-green", "index": 2 } }, "type": "regex" } ] } ] }, { "matcher": { "id": "byName", "options": "virusscanner_lastrun" }, "properties": [ { "id": "unit", "value": "dateTimeFromNow" } ] }, { "matcher": { "id": "byName", "options": "virusscanner_updated" }, "properties": [ { "id": "unit", "value": "dateTimeFromNow" } ] }, { "matcher": { "id": "byName", "options": "update_version" }, "properties": [ { "id": "mappings", "value": [ { "options": { "pattern": "\\d+.*", "result": { "color": "dark-green", "index": 0 } }, "type": "regex" }, { "options": { "pattern": ".+", "result": { "color": "transparent", "index": 1 } }, "type": "regex" }, { "options": { "match": "empty", "result": { "color": "transparent", "index": 2 } }, "type": "special" } ] }, { "id": "custom.displayMode", "value": "color-background" } ] } ] }, "gridPos": { "h": 8, "w": 24, "x": 0, "y": 5 }, "id": 3, "options": { "footer": { "fields": "", "reducer": [ "sum" ], "show": false }, "showHeader": true, "sortBy": [ { "desc": true, "displayName": "Update-Version" } ] }, "pluginVersion": "9.3.6", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "exemplar": false, "expr": "sort(utm_usc_online_status{})", "format": "table", "hide": false, "instant": true, "legendFormat": "__auto", "range": false, "refId": "A" } ], "title": "UTMs", "transformations": [ { "id": "organize", "options": { "excludeByName": { "Time": true, "__name__": true, "instance": true, "job": true }, "indexByName": { "Time": 4, "Value": 3, "__name__": 5, "accountname": 1, "device_id": 9, "hostname": 2, "instance": 13, "job": 14, "last_contact": 6, "tenant_domain": 0, "update_version": 8, "version": 7, "virusscanner_lastrun": 11, "virusscanner_status": 10, "virusscanner_updated": 12 }, "renameByName": { "Time": "", "Value": "Status", "__name__": "", "accountname": "Account-Name", "device_id": "Geräte-ID", "hostname": "Hostname", "instance": "", "job": "", "last_contact": "Letzter Kontakt", "name": "UTM-Name", "tenant_domain": "Domäne", "update": "Firmware-Update", "update_version": "Update-Version", "version": "Firmware-Version", "virusscanner_lastrun": "Virusscanner-Lauf", "virusscanner_status": "Virusscanner-Status", "virusscanner_updated": "Virusscanner-Update" } } }, { "id": "convertFieldType", "options": { "conversions": [ { "destinationType": "number", "targetField": "Letzter Kontakt" }, { "destinationType": "number", "targetField": "virusscanner_lastrun" }, { "destinationType": "number", "targetField": "virusscanner_updated" } ], "fields": {} } }, { "id": "organize", "options": { "excludeByName": {}, "indexByName": { "Account-Name": 1, "Domäne": 0, "Firmware-Version": 5, "Geräte-ID": 7, "Hostname": 2, "Letzter Kontakt": 4, "Status": 3, "Update-Version": 6, "Virusscanner-Lauf": 8, "Virusscanner-Status": 10, "Virusscanner-Update": 9 }, "renameByName": {} } } ], "type": "table" }, { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "fieldConfig": { "defaults": { "custom": { "align": "left", "displayMode": "auto", "inspect": false }, "mappings": [], "thresholds": { "mode": "absolute", "steps": [ { "color": "dark-red", "value": null }, { "color": "dark-orange", "value": 30 }, { "color": "dark-green", "value": 60 } ] } }, "overrides": [ { "matcher": { "id": "byName", "options": "Value" }, "properties": [ { "id": "custom.displayMode", "value": "color-background" } ] }, { "matcher": { "id": "byName", "options": "Noch gültig" }, "properties": [ { "id": "unit", "value": "Tage" } ] }, { "matcher": { "id": "byName", "options": "NFR" }, "properties": [ { "id": "mappings", "value": [ { "options": { "false": { "index": 1, "text": "Nein" }, "true": { "index": 0, "text": "Ja" } }, "type": "value" } ] }, { "id": "custom.width", "value": 68 } ] }, { "matcher": { "id": "byName", "options": "Lizenz-Typ" }, "properties": [ { "id": "custom.width", "value": 116 } ] }, { "matcher": { "id": "byName", "options": "Lizenz-ID" }, "properties": [ { "id": "custom.width", "value": 89 } ] }, { "matcher": { "id": "byName", "options": "Lizenz-ID" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "Lizenz im Reseller-Portal anzeigen", "url": "https://my.securepoint.de/2.0/licenses/${__data.fields.Lizenz-ID}" } ] } ] }, { "matcher": { "id": "byName", "options": "license_uuid" }, "properties": [ { "id": "links", "value": [ { "targetBlank": true, "title": "UTM im Unified Security Portal anzeigen", "url": "https://portal.securepoint.cloud/sms/#show-tenant-${__data.fields.Domäne}-usc-utms-${__data.fields.Geräte-ID}" } ] }, { "id": "custom.width", "value": 108 } ] }, { "matcher": { "id": "byName", "options": "Domäne" }, "properties": [ { "id": "custom.width", "value": 102 } ] } ] }, "gridPos": { "h": 8, "w": 24, "x": 0, "y": 13 }, "id": 1, "options": { "footer": { "fields": "", "reducer": [ "sum" ], "show": false }, "showHeader": true, "sortBy": [] }, "pluginVersion": "9.3.6", "targets": [ { "datasource": { "type": "prometheus", "uid": "${DS_PROMETHEUS}" }, "editorMode": "code", "exemplar": false, "expr": "sort(utm_license_days_valid)", "format": "table", "hide": false, "instant": true, "interval": "", "key": "Q-9474a811-7756-42b1-ba32-22e507638503-0", "legendFormat": "__auto", "range": false, "refId": "A" } ], "title": "Lizenzen", "transformations": [ { "id": "filterFieldsByName", "options": { "include": { "names": [ "accountname", "license_creation_date", "license_displayname", "license_expiration_date", "license_id", "license_nfr", "license_type", "license_user", "license_uuid", "permission_affix", "tenant_domain", "Value" ] } } }, { "id": "organize", "options": { "excludeByName": { "permission_affix": true }, "indexByName": { "Value": 3, "accountname": 1, "license_creation_date": 4, "license_displayname": 2, "license_expiration_date": 5, "license_id": 6, "license_nfr": 7, "license_type": 8, "license_user": 9, "license_uuid": 10, "permission_affix": 11, "tenant_domain": 0 }, "renameByName": { "Value": "Noch gültig", "accountname": "Account-Name", "license_creation_date": "Erstellt am", "license_displayname": "Lizenz-Name", "license_expiration_date": "Gültig bis", "license_id": "Lizenz-ID", "license_nfr": "NFR", "license_type": "Lizenz-Typ", "license_user": "Anzahl Benutzer", "license_uuid": "Geräte-ID", "permission_affix": "", "tenant_domain": "Domäne" } } } ], "type": "table" } ], "refresh": "30s", "schemaVersion": 37, "style": "dark", "tags": [], "templating": { "list": [ { "datasource": { "type": "prometheus", "uid": "ftmKeWRRz" }, "filters": [], "hide": 0, "name": "Filters", "skipUrlSync": false, "type": "adhoc" } ] }, "time": { "from": "now-15m", "to": "now" }, "timepicker": {}, "timezone": "", "title": "USC Monitoring II", "uid": "r38u25RRz", "version": 43, "weekStart": "" }

    • Button Load
    • Select data source: Select a Prometheus data source
    • Button Import

    -->


    [[Datei:]]
    Dashboard with overview of the UTMs in operation (online/offline/USC active/firmware distribution/UTMs per end customer)

    Example 3 - UTM incl. USC
    Example 3

    notemptyNew as of v1.28

    UTM incl. USC
    • in the menu
    • Button  Import
    • Enter the following ID in the field Import via grafana.com: 20896
    • Button Load
    • Select data source: Select a Prometheus data source
    • Button Import



    [[Datei:]]
    Dashboard with useful information on licences (active/less than 30 days/expired)

    Example 4 - Overview of licences
    Example 4

    notemptyNew as of v1.28

    Overview of licences
    • in the menu
    • Button  Import
    • Enter the following ID in the field Import via grafana.com: 20898
    • Button Load
    • Select data source: Select a Prometheus data source
    • Button Import



    [[Datei:]]
    Dashboard with overview of the MDM (number/firmware distribution)

    Example 5 - MDM Dashboard
    Example 5

    notemptyNew as of v1.28

    MDM Dashboard
    Mobile devices with firmware versions
    • in the menu
    • Button  Import
    • Enter the following ID in the field Import via grafana.com: 20874
    • Button Load
    • Select data source: Select a Prometheus data source
    • Button Import



    [[Datei:]]
    Dashboard with overview of VPN connections/tunnels (MobSec connections/tunnel status/USC VPN connections)

    Example 6 - VPN overview
    Example 6

    notemptyNew as of v1.28

    VPN connections/tunnel overview
    • in the menu
    • Button  Import
    • Enter the following ID in the field Import via grafana.com: 20897
    • Button Load
    • Select data source: Select a Prometheus data source
    • Button Import
