VPN Windows clients in the USC

Information on the configuration of the VPN Windows clients in the USC

Last adaptation to the version: 2.9

New:

Neuer Abschnitt: Übersicht über die Windows VPN-Kacheln
Architektur des Systems wird angezeigt

Kachelansicht vereinfacht

notempty

This article refers to a Beta version

Introdutction

It is possible to connect new VPN clients to the Unified Security Portal in order to manage them centrally from the port.
All registered clients can be managed here.

Requirements

notempty

The user requires an active MDM or MobSec license. Otherwise, the menu items and are not displayed in the Securepoint Portal.

Only USC/USR licenses are not sufficient

.
If an MDM license has expired, access and functionality are restricted. Further information on this can be found in the wiki article Licenses.

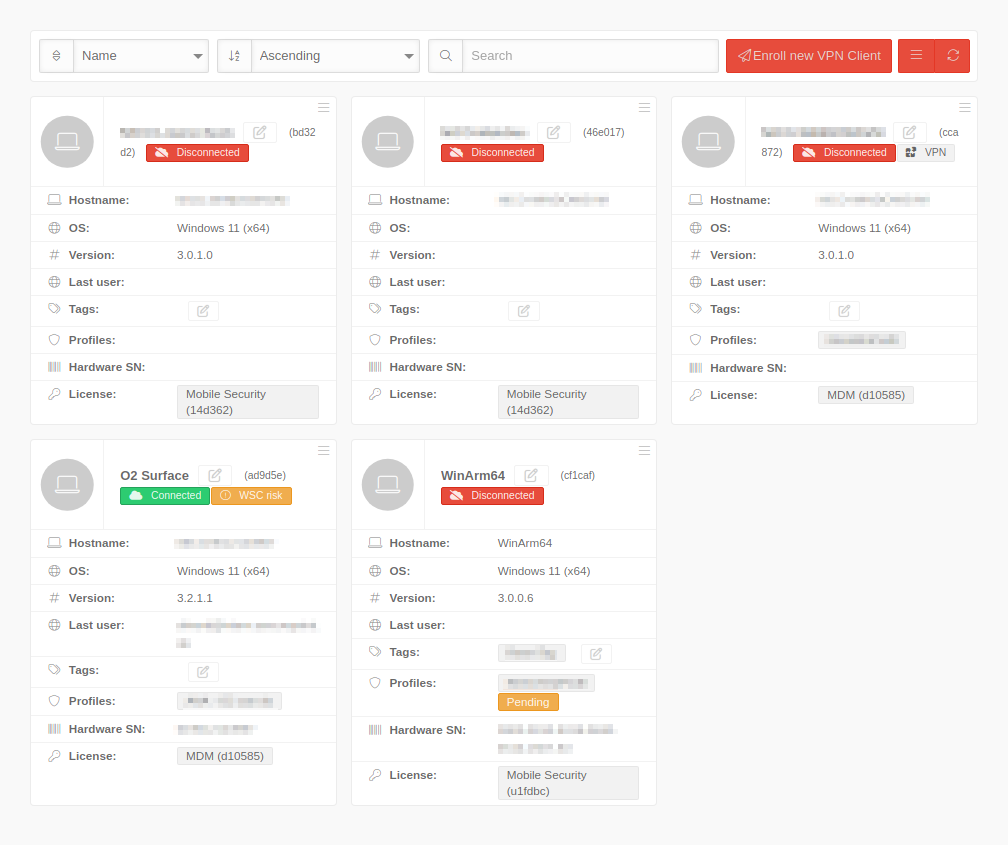

Overview

Name	Sortiert die Kacheln nach dem Namen des Windows VPN-Client	Overview of the Windows Clients
Ascending	Sorts the tiles in ascending or descending order according to the selected criterion
Search	Filters on tiles that contain the search text
Neuen VPN Client enrollen	Ein neuer Windows VPN Client wird darüber enrollt. Weitere Informationen dazu siehe unten.

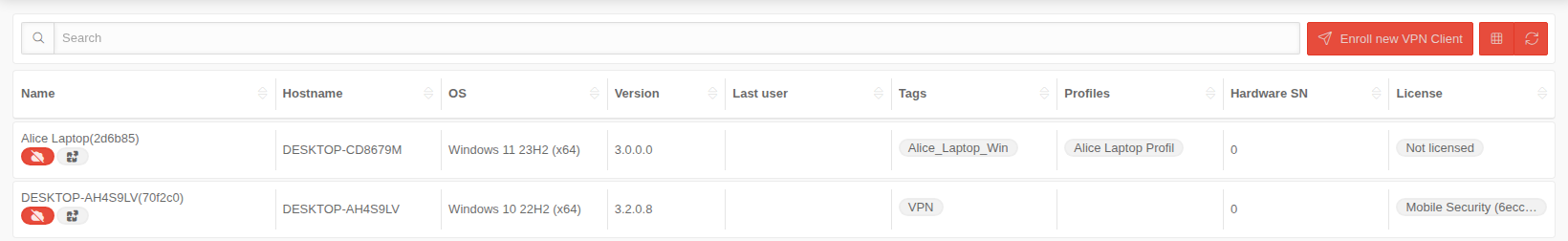

/ List view / Grid view	Switch between lists and grid view
Update	Refreshes the display

Kachel-Optionen
	The button at the top right of each tile provides the following options:
Details	Details
Löschen	The tile is deleted

Kachel-Informationen
Hostname:	Der Hostname des Windows VPN-Clients
Betriebssystem:	Das Betriebssystem und deren Architektur des genutzten Windows-Rechners
Version:	Die Version des Windows VPN-Clients
Letzter Benutzer:	Zeigt den letzten Benutzer an, welcher diesen Windows-Rechner benutzte
Tags:	Zeigt die Tags an, die zu diesem Windows VPN-Client gehören. Mit Tags bearbeiten können Tags hinzugefügt oder entfernt werden.
Profile:	Zeigt das Windows Profil an, welches zum Windows VPN-Client gehört Mit einem Klick auf den Windows Profilnamen lässt sich das Profil bearbeiten
Hardware SN:	Die Hardware Seriennummer des Windows-Rechners
Lizenz:	Zeigt die zugehörige Lizenz zum Windows VPN-Client an

Register client

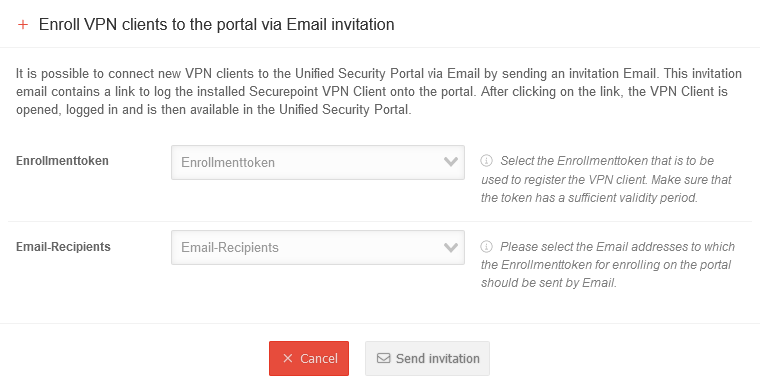

It is possible to connect new VPN clients to the Unified Security Portal via e-mail by sending an invitation e-mail. This invitation e-mail contains a link to log the installed Securepoint VPN Client onto the portal. After clicking on the link, the VPN Client is opened, logged in and is then available in the Unified Security Portal. An e-mail invitation can be sent using the dialog behind the Enroll new VPN client button. Same dialog as under Unified Security ConsoleWindows Enrollment Button Enroll new VPN client
Caption	Value	Description	Dialog for registering VPN clients on the portal via e-mail invitation
Registration token	Registration token	Select an enrollment token to be used for the enrollment of the VPN client. The creation of a token is described here. The token should have a sufficient period of validity.
E-mail recipient	E-mail recipient	Selection of email addresses to which the registration token for logging in to the portal is to be sent by e-mail.
Send invitation	Send email invitation

Configure client

Column	Description
Click on a client to open the configuration. Here you can view some information about the respective client.
Overview Overview
Action	Description	Windows Client Overview
Update	Refreshes the display
Working memory information	Size of the client's working memory, as well as the working memory used at the time of the last update
CPU	Utilization and cores of the processor at the time of the last update
Storage	(Used) storage space of the client and encryption status of the hard disks
Update	If available, the user's VPN client can be updated here
Interfaces	Internet interfaces (IP addresses) of the client for copying

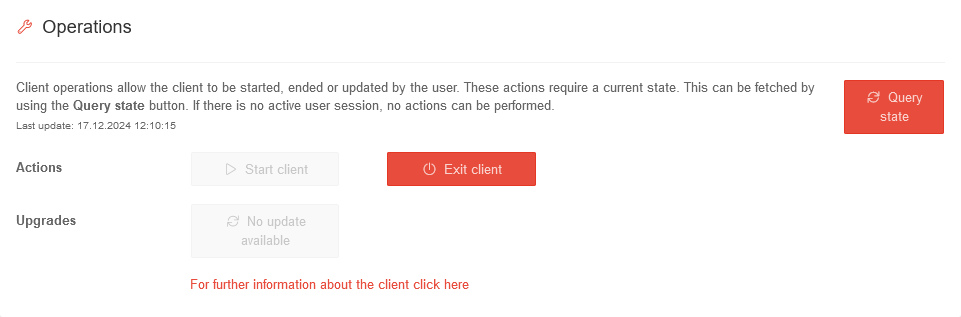

Operations Operations
Query status	Query/update client status	Windows client operations
Actions
Start client	Start VPN client at user
Exit client	Exit VPN client at the user
Upgrades
No update available or Update available	If an update is available, the client can be updated

Connections Connections The currently configured connections of the VPN client are displayed here. In addition to the current settings and the status of these connections, the status at the time of the query is also displayed. The connections are sent automatically when the VPN client is opened and can be queried again if required.
Update	Refreshes the display		Overview of VPN connections on the client

Connected / Not connected	Shows the connection status of the respective connection
Connection tags
SSLVPN	Connection is of type SSLVPN
WireGuard	Connection is of type WireGuard
SYSTEM	Connection is a system connection
	The option Reconnect if connection is lost is activated for this connection
	User data is stored for this connection
OTP	An OTP is required for this connection so the option Apply OTP is active It is therefore not possible to establish a connection via the portal
notempty New as of: 2.5 PIN	A PIN must be set to start the connection. This was set via the VPN configuration of the Windows profile
notempty New as of: 2.5 PIN /	PIN is set in the client and connection has been updated
Actions
Connect / Disconnect	Connects or disconnects the VPN connection on the client in real time
Log	Shows available log data for the client's connection
Diagnosis	Shows a current diagnosis for the client connection
Diagnosis
notempty New as of: 2.5 Reset PIN	The set PIN is reset and a new PIN must be set the next time this connection is started
Remove	Deletes the connection on the client

Operations Log Operations Log
Log of the communication between windows client and the Unified Security infrastructure		Windows Client Operations Log
Time	Shows the date and time at which the job is executed
Job	Displays the job that is being executed
Profile	Displays the Windows Profile on which the job is being performed
Direction	Indicates the direction of communication { in Message from the device to the server out Message from the server to the device
Status	Displays the status of the executed job Sent the transmitted job was sent to the device or the transmitted windows profile was sent Received the device has received the transmitted job without errors Confirmed the submitted job or the submitted windows profile has been applied Offline the device is offline Pending the submitted job has not yet been sent Error the error is described in the Info column
Info	Displays further information on the transmitted job. If an error has occurred, the type of error Upis described here.
Actions	Operations displayed here can be executed

Windows security Windows security
The Windows security data comes from the Windows Security Center service (wscsvc). The WSC collects current information on the security of the Windows client. In addition to the protection provided by third-party antivirus products, Windows Firewall, the status of the service, the configuration of the Internet settings, the automatic update and the User Account Control (UAC) are evaluated. Each of these security providers has a status of “Good”, “Not monitored”, “Bad” and “Temporarily deactivated”. Good: The status of the security provider category is good and does not require any attention from the user.</li Not monitored: The status of the security provider category is not monitored by WSC. Bad: The status of the security provider category is bad, and the computer may be compromised. Temporarily disabled: The security provider category is in the “Temporarily disabled” state, the computer may be compromised.		Windows Client Windows Security
Action	Description
This month	Period to be displayed in the table
Update	Retrieve/update the security status of the client

Column	Description
Time	Time at which the status (the line) was recorded

Inventory Inventory
Here you can save information about the device and (for devices with SIM card) the contract: Inventory: Bill number Bill date Warranty starts on Warranty ends on External inventory link Description Contract: Provider Tariff Customer number Contract number Start of contract Contract term Handover date		Windows Client Inventory
