Webfilter example

{Rollout|14.1.1}}

Example configuration for the web filter on the UTM in 2 variants with user or network groups

Last adaptation to the version: 12.7

New:

Updated to Redesign of the webinterface

Last updated:

New options for moving elements now available

notempty

This article refers to a Beta version

11.6

Specifications

Option 1: User groups
For the example scenario, there are specifications for three user groups.

Each user group has its own set of rules
Different permissions are required when accessing the website

Based on the user groups, three profiles are created in the web filter and linked to their respective sets of rules.

User group Proxy_boss: No restrictions.
However, management should be protected from websites containing malware.
The user group Proxy_employees should also be protected from malware.
In addition, the following categories should be blocked:
- Pornography and erotica
- Social networks and
- Shopping
  However, it must be possible to shop online at Anyideas GmbH.
Only the Securepoint website should be available to the user group Proxy_trainee.
In addition, trainees should be able to use Instagram during a specific time window.

Option 2: Network groups
Network groups are assigned to rule sets in profiles.
They are designed to protect non-authenticated devices via HTTP proxy and the web filter.

A distinction is made between three network groups:

Network group nw_grp_GF: For management devices with the IP network 10.1.10.0/24
Network group nw_grp_IT: For IT devices with the IP network 10.1.20.0/24
Network group nw_grp_VT: For sales devices with the IP network 10.1.30.0/24

Requirements for the network groups:

All network groups should be protected against malware
For sales, advertising services should also be blocked

Setting up the groups

Option 1: User groups

Call in menu Authentication Users Area Groups button Add group Area Permissions

Add group UTMuser@firewall.name.fqdnAuthenticationUser Create proxy group

Caption	Value	Description
Group name	Proxy_boss	Unique name for the user group
HTTP-Proxy	On	The web filter requires the HTTP proxy permission

Directory Service
Directory service group assignment	AD Groupname	With Active Directory connection, a corresponding group can be selected (for a detailed description, see the article on AD user groups.	Directory service area

Create gropus

User UTMuser@firewall.name.fqdnAuthentication Three proxy groups created

Now create a separate user group for

Proxy_boss
Proxy_employees and
Proxy_trainee

Create user

Call in menu Authentication Users Area Users Add user Area General

If authentication does not take place via Active Directory, local users are required.

They should inherit the permissions from the user groups.

Add User UTMuser@firewall.name.fqdnAuthenticationUser Create user employee

Caption	Value	Description
Login name:	Emploeyees	Create users, such as employees
Password	•••••••••••••••••••	Enter a secure password
Confirm password	•••••••••••••••••••	Re-enter password
Expiration date	2024-11-07 12:00:00	Optional: Assign expiration date
Groups	Proxy_employees	Select the appropriate option in the Groups click box
		Finally save and close

Section User
User UTMuser@firewall.name.fqdnAuthentication The three created users.

Now we still need the users Boss and Trainee.

Option 2: Networkgroups

Call up network objects and groups in the menu.

Networkgroups UTMuser@firewall.name.fqdnFirewall Update rules 42 Alternative use of network groups

Network groups can also be used as an alternative to user groups.

To do this, create network objects and link them to the network groups.

Setting up the web filter

Create profile

Call in menu Applications Webfilter Profiles Add profile

The created groups are linked to the rule sets in order to set up a web filter.
To do this, profiles are created.

Add profile UTMuser@firewall.name.fqdnApplicationsWebfilter Add profile for Proxy_boss

Caption	Value	Description
Network or user group	Proxy_boss	Select one of the created network or user groups, such as Proxy_boss.
Generate new rule set		Leave set to Allow
		The new profile is created by clicking Save and Close.

Webfilter UTMuser@firewall.name.fqdnApplications Webfilter Log 42 Profiles added

In this way, a profile is created for each of the network or user groups.

Rule sets

Now edit the rule sets for

Proxy_trainee_ruleset_1
Proxy_employee_ruleset_1
Proxy_boss_ruleset_1

Area

button/Value

Description

Rule sets

The button opens a new dialog box for editing a rule set.

Add Rule

Clicking on the button opens another dialog box.

Here you can block or allow

Domains
URLs
URL Regex (regular expressions) and
Categories

|

By default, the respective action is blocked.

Clicking on the button allows it.

Rule set for user group Proxy_boss

Default settings for user group Proxy_boss

Add Rule UTMuser@firewall.name.fqdnApplicationsWebfilterEdit rule set Edit rule set for Proxy_chef

Edit rule set and create rule: Type Category Hacking

	Description
	Edit rule set and open a new dialog box
Add Rule	Click on the button
class=aktiv	Choose type
Hacking	Select category
	Set action (default: block)
	Save rule

Create another rule with Threat Intelligence Feed

Alternative to creating a new rule set: copy an existing one.
Advantage: Significantly reduces the amount of work required if it already contains all or some of the desired categories, URL regex, etc.

For example, the predefined rule set “security” blocks websites from the categories Hacking and Threat Intelligence Feed.

Copy rule set security and assign it to Proxy_boss:

	Description
	Copy rule set
Modify copied rule set	A new dialog box will open. Rename the rule set to Proxy_chef_ruleset_1. Optional: Further customize the rule set
	Save the copied rule set and close the dialog box.
Add profile	Click on the button. A new dialog box opens
Proxy chef	Select network or user group
	Click on the button
	This button appears. It does not create a rule set.
Proxy_chef_ruleset1	Select copied rule set
	Save and add profile

Default set for user group Proxy_employees

Default settings for user group Proxy_employees

For the rule set of the user group Proxy_employees, copy the rule set security to protect against malware.

Add web filter categories for the rule set Proxy_employees

Rules are established for

Shopping
Pornography and erotica
Social networks and

Rule for Anyideas with wildcards

the special case of shopping at Anyideas GmbH using wildcards

	Description
	Edit rule set and open a new dialog box
Add Rule	Click on the button

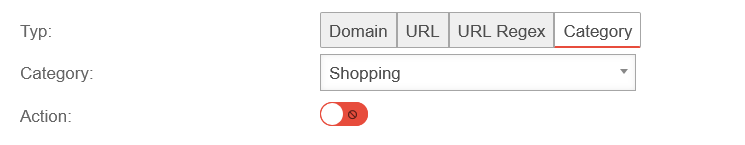

Kategorie	Choose type
Shopping	Select category
	Block
	Save rule
Block pornography and erotica and social networks in the same way
URL	Choose type

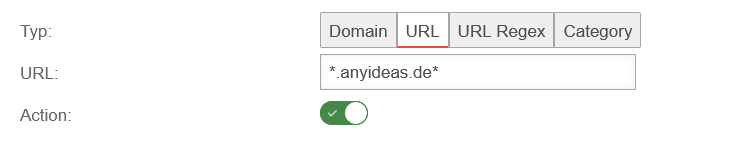

URL	Place a wildcard * before and after anyideas.de (allows all subdomains and paths on the website)
	Permit
	Save and close

Default setting for the user group Proxy_trainee

Default setting for the user group

The user group Proxy_trainee is a special case.

Trainees should only be allowed to use Instagram within a clearly defined time frame
All other URLs should be blocked without exception
Exception: The Securepoint website should be accessible at all times (and is therefore required in every rule set)

Therefore, two sets of rules are required:

One for the time component (Monday - Friday from 14:00 - 14:59)
Another one that applies outside the specified time frame

Important:

All rule sets must be fully configured
Processing is not top-down, meaning one rule set is implemented after the other
It is only checked whether the time matches a rule set or not

Procedure

Create rule set 1 for Proxy_trainee:
- Rule 1: Allow the URL securepoint.de
- Rule 2: Block all other URLs
Copy rule set - saves time:
- Rename new rule set
- Specify timeframe
- Create URL rule for Instagram
Drag and drop rule set 2 in front of rule set 1 and save

Schritt-für-Schritt-Anleitung

Step 1: Create rule set 1

Edit rule set UTMuser@firewall.name.fqdnApplicationsWebfilter Basic ruleset for Proxy_trainee

Area	button/Value	Description
Profiles	Add profile	Click on the button and open a new dialog
	Proxy_trainee	Select user group Proxy_azubi
		Generate a new rule set and create the rule set Proxy_trainee_ruleset_1.
		Save and close the dialog
Rule sets	Proxy_trainee_ruleset_1'	Edit rule set and open a new dialog box
Rules	Add Rule	Click on the button and open a new dialog
	URL	Choose type
	URL	Enter securepoint.de
		Permit
		Save rule
	*	Enter wildcard The wildcard blocks all conceivable URLs
		Block
		Save and close the dialog
		Save again and finish editing the rule set

Step 2: Copy and extend rule set 1

Time window defined for the control set

Area	button/Value	Description
Rule sets	Proxy_trainee_ruleset_1'	Click on the button, copy the rule set and open a new dialog
	Name:	Rename to Proxy_trainee_ruleset_2

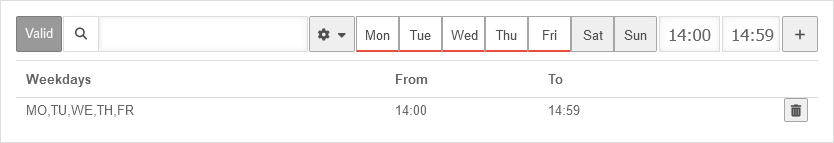

	MonTueWedThuFriSatSun14:0014:59	Define time frame: Mon-Fri 2:00 p.m. - 2:59 p.m. Click on individual days Enter times For multiple entries: Their display in the table can be customized as described in the article on the UTM toolbar
		Click the button and add the time frame to the rule set
Rules	Add Rule	Click on the button and open a new dialog
	URL	Choose type
	URL	instagram → The flexible URL rule with wildcards allows access to Instagram via the correct URL redirects (e.g., instagram․de → instagram․com)
		Allow action
		Save and close the dialog
The Instagram rule does not yet apply, as it is subject to the wildcard rule, which blocks all URLs
Rules	URL instagram notempty New as of v14.1.1 Additional options available by right-clicking on the icon Move list items up or down with the mouse Right click on Icon Group Select how wg0-network If available Position determine 7 Via direct input or Using the arrows Finally, click “Save” or “Cancel” .	Move the Instagram rule in front of the wildcard rule via drag and drop
Rules		Save and close.
Rule sets	Proxy_trainee_ruleset_2	After saving, an exclamation mark appears next to the rule set because: The rule set is not yet in use is not yet assigned to a profile
Profiles	Proxy_trainee	Mark with the mouse
Rule sets	Proxy_trainee_ruleset_2	Click the button and link the rule set to the profile Proxy_trainee

Step 3: Move rule set

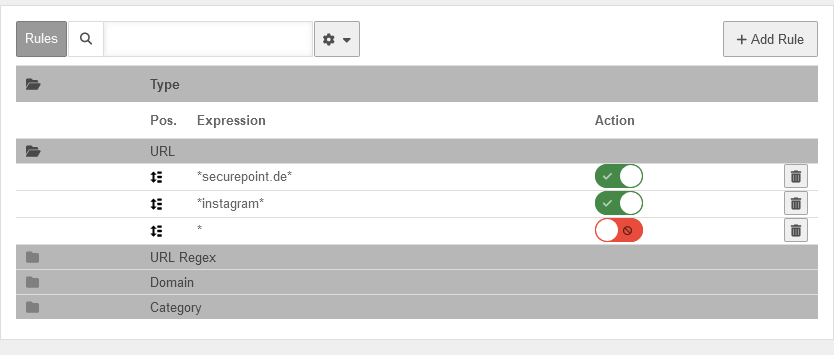

The instagram rule has been moved ahead of the wildcard rule.

Area	Button/Value	Description
Profiles	Proxy_trainee_ruleset_2 notempty New as of v14.1.1 Additional options available by right-clicking on the icon Move list items up or down with the mouse Right click on Icon Group Select how wg0-network If available Position determine 7 Via direct input or Using the arrows Finally, click “Save” or “Cancel” .	Move Proxy_trainee_ruleset_2 before Proxy_trainee_ruleset_1 Now the rule set is applied
Profiles		Save configuration

The rule sets for the network groups are set up in the same way as the Defaults mentioned above.

Wildcards

Wildcards can be used very flexibly.
Here are a few examples:

Wildcard examples	Description
ttt-point	Allows all characters before and after ttt-point Examples: https://ttt-point.de http://ttt-point.de www.wiki.ttt-point.de https://www.ttt-point.de/shop
.ttt-point.	Allows any number of characters before and after the string .ttt-point.. Unlike the first example, this specification is a little more restrictive. It requires a period before and after ttt-point.
*ttt-point․de (or .net, .com etc.)	Any characters are permitted before ttt-point․de in unlimited numbers. However, no further characters are permitted after the country domain de. The result: potential subdirectories on the respective server cannot be accessed.
https://ttt-point․de	All characters after https:// are permitted, provided that they are followed by ttt-point․de. Any other characters may follow ttt-point․de
https://ttt-point․	The same specifications as in the previous example, except that all domain extensions such as .com, .fr or .site are permitted.
https://ttt-point․de*	Only allows addresses that begin with https://ttt-point.com. Examples of blocked addresses: https://www.ttt-point.com http://ttt-point.com https://shop.ttt-point.com Any number of characters can follow the domain extension.
https://ttt-point․de	Allows only the address <nowiki>https://ttt-point.de (no additional subdomains, etc.).

Enable web filter

Section General

Webfilter UTMuser@firewall.name.fqdnApplications Webfilter Log 42 The web filter is enabled.

Area	Button/Value	Description
Web filter		Check whether the web filter is still enabled (UTM factory setting)
No matching profile found		By default, the web filter also accepts network and user groups for which there is no web filter profile whose profiles do not contain rule sets with a matching timestamp
No matching profile found		If you enable blocking, any user will be blocked who is not a member of one of the proxy user groups whose IP address also does not match any of the network groups
		Save configuration after modifications

Set up HTTP-proxy

Call in the menu Applications HTTP Proxy
HTTP-Proxy UTMuser@firewall.name.fqdnApplications HTTP-Proxy Log 42 Enable authentication

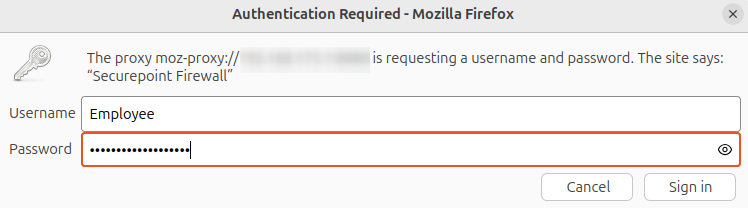

Authentication for proxy user groups is required in the UTM.
To do this, select the appropriate authentication method in the HTTP proxy.

Please note:

For the Basic authentication method, users are required on the UTM.
For NTLM, the UTM must first be integrated into the domain.

Transparent mode

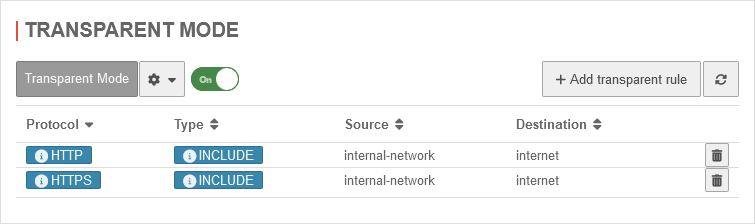

Area Transparent Mode Button Add Transparent Rule

The transparent mode for HTTP Proxy

Network group users are controlled via the proxy's transparent mode.

Members of network groups with the Internet destination should always be redirected via the HTTP proxy for HTTPS using the include type.

Appropriate rules are created for this purpose.

Add transparent rule UTMuser@firewall.name.fqdnApplicationsHTTP-Proxy Create transparent rules

Area	Button/Value	Description
Protocol:	HTTPS	Select protocol HTTPS
Type:	INCLUDE	Set type to INCLUDE
Source:	nw_grp_GF	Define nw_grp_GF as source
Target:	internet	Select internet as target
		Save and close

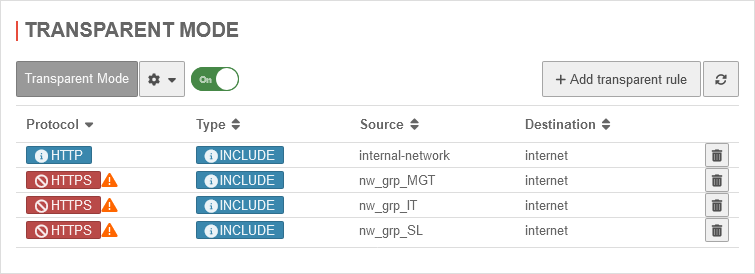

3 Transparent Rules for Management, IT and Sales

Then repeat the procedure for the sources nw_grp_IT and nw_grp_VT.

The rules are only applied if SSL Interception is enabled.

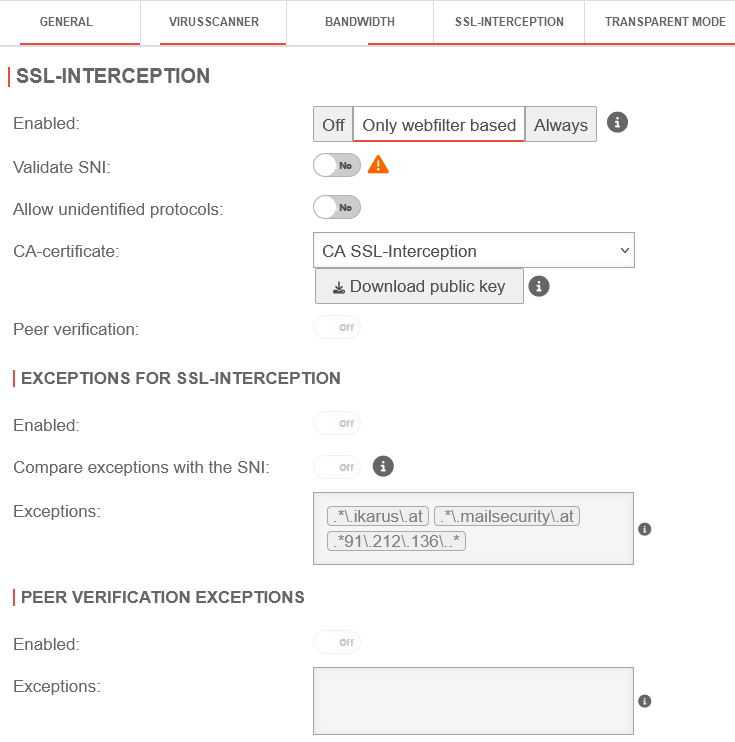

SSL-Interception

A CA certificate is required for SSL Interception.
The CA certificate's public key must then be stored in the certificate management of the client browsers.

Create CA under Area CA button Add CA

Overview under Area Certificate

Enabled SSL interception

Area	Button/Value	Description
Enabled:	Only web filter based oder Always	Specify whether SSL interception is Web filter based only or Always active
CA certificate:	CA SSL-Interception	Select CA certificate
		Save and close

Packet filter

Call in menu Firewall Packet Filter

notempty

After editing or adding a rule, the rulebook must be updated.
Only after that will the rules be applied!
/ Add Rule → Update rules

The following provisions are required in the packet filter rules:

Access to the UTM services must be permitted
Website requests without a proxy for HTTP and HTTPS should be blocked

Rule for the service group Proxy

The UTM already receives auto-generated rules by default.

The proxy rule already contains the required services for web cache port 8080 and name server port 53 for UDP and TCP.

Firewall UTMuser@firewall.name.fqdnPacket filter Packet filter Log Update rules 42 Configured packet filter with disabled rules

In this example, no other rule may allow HTTP and HTTPS. This means, for example, that rules with the any service must be deactivated or deleted.

Alternatively, they can be replaced with a self-created service group without HTTP and HTTPS.

Packet filter rule for user groups

internal-network Button Area General

User group members must configure their browsers for the HTTP proxy.
The proxy port is entered in the browser.

This requires a rule that allows this port from this internal network on the corresponding interface.
By default, this is port 8080, which is already created with the Webcache service.

Add Rule UTMuser@firewall.name.fqdnFirewallPacket filter Regel Assistent Add packet filter rule for user groups

Area	Button/Value	Description
Source:	internal-network	Select internal network as the source
Target:	internal-interface	Determine the target international-interface
Service:	webcache	Set webcache as service
		Save and close

Packet filter rule for network groups

Both HTTP on port 80 and HTTPS on port 443 are redirected through the proxy.
Name resolution is required for this.

A rule is required that allows DNS from the private network on the associated network interface.

Prerequisite: The UTM is registered as a name server on the clients.

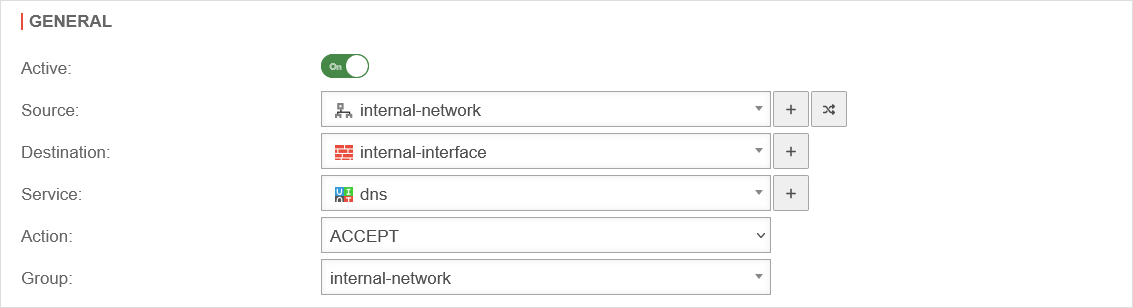

Add packet filter rule for network groups

Area	Button/Value	Description
Source:	internal-network	Select internal network as the source
Target:	internal-interface	Determine the target international-interface
Service:	dns	Set webcache as service
		Save and close

Browser settings for user groups

No further settings are required in the browser for transparent mode.
However, the browser requires the IP address and port of the proxy for authentication.

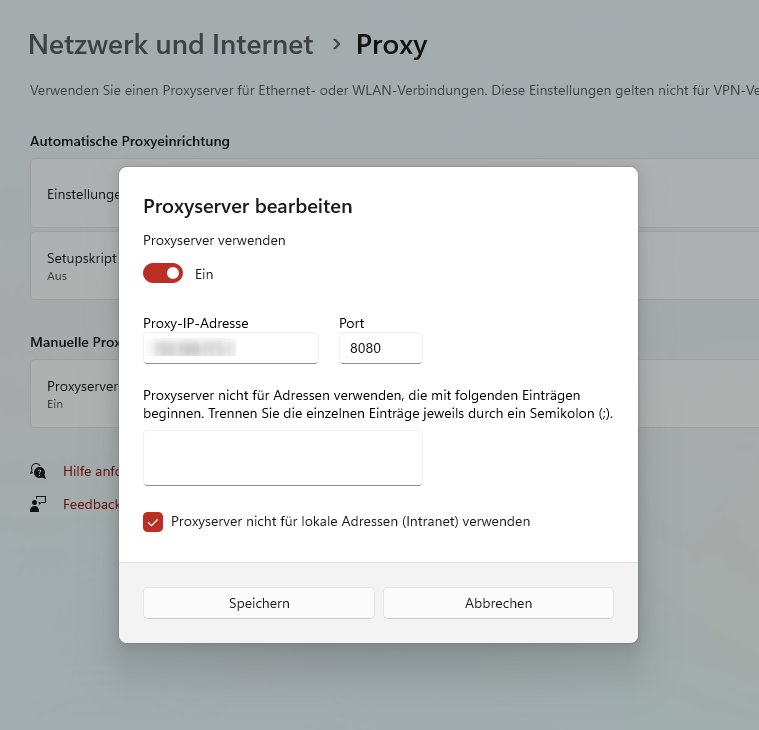

Windows proxy server settings

Chrome and Edge use Windows settings.

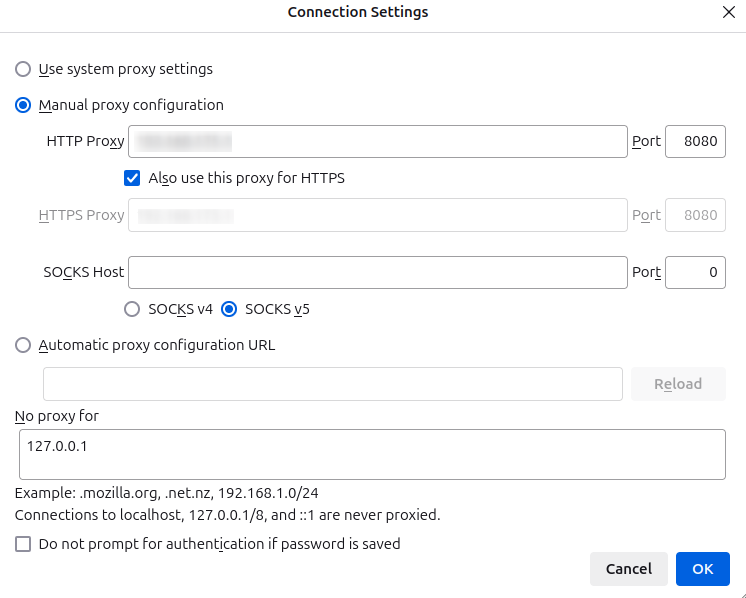

Firefox Proxy connection settings

In Firefox, settings are set independently of Windows.

Login for authentication

Once the browser has been set up in this way, an authentication screen will appear the first time you visit the website.

Enter your username and password here.

If

the UTM is integrated into the Active Directory domain
the client is also a member of the domain and
Chrome or Edge is used

then authentication usually no longer takes place after the browser is started. Single sign-on is then active here, so that the authentication data is taken from the Windows login.
