Configuration management for a Securepoint UTM

Last adaptation to the version: 14.1.1 (11.2025)

New:
notempty
This article refers to a Beta version

14.0.6 14.0.5 12.7 12.2 12.1 11.7 11.6.11

Preliminary remark

The settings of the UTM appliance are saved in a configuration file.
The configuration files are organised in the menu Configuration  Area Local Configuration.

  • The users and - in a separate database - the Captive Portal users are also saved in the configuration.
  • Automatic backups of the configuration should be carried out with regular cloud backups.
    More on this in the Wiki article Cloud Backups
    • If the installation wizard was run when the UTM was started for the first time, it automatically created a configuration file. The file has the title configuration-wizard-Date-Time .
    The configuration can also be restarted or reset in the Installation wizard and Factory settings areas.
  • notempty
    New as of v14.1.0:
    A maximum of 20 configurations can be created.
    If the maximum number of 20 configurations has been reached (or has already been exceeded), it is necessary to delete existing ones to add more configurations.


    • Configuration management

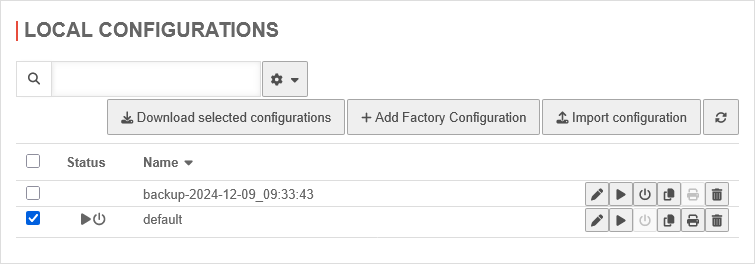

    Button Description Configuration management UTMuser@firewall.name.fqdn Configuration management

    Overwrite configuration

    Overwrite configuration     		Saves the current configuration of the UTM in the selected configuration file.
  • This automatically makes this configuration file the active configuration. The Status Current configuration is then displayed next to the configuration file

    • Set start configuration

    Set boot configuration     		Sets the selected configuration as the start configuration when restarting.
  • The Status Boot configuration status is then displayed next to the configuration file.

    • Export configuration

    Export configuration     		Exports the configuration of the selected line to a file with the extension .utm. The browser's save dialogue opens.
    Then make changes Save

    Load configuration

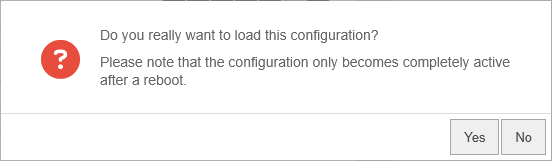

    Set current configuration     		Loads the selected configuration as the currently used version.
  • The Status Current configuration is then displayed next to the configuration file
  • Any unsaved changes in the active configuration will be lost.
  • If a different configuration is loaded, you can select whether the current Captive Portal user list should be replaced by the user list from the configuration to be loaded (Yes), or whether the existing user list should remain unchanged (No).
  		•

    Copy configuration

    Copy configuration     		Copies the selected configuration. A new name must be specified.
    The active configuration is not changed!
    notempty
    New as of v14.1.0:
    A maximum of 20 configurations can be created.
    		Copy configuration UTMuser@firewall.name.fqdnConfiguration management
    Then Save and close

    Print configuration

    Print current configuration     		Displays a pdf document with all settings in tabular form sorted by category.
  • Only the settings of an active/current configuration can be output.
  • Passwords and access data are displayed as dummy text
    Passwords and access data such as ‘'SNMP_V3_PASSWORD’', ‘'Interface options’', ‘'dyndns_user’' or ‘'dyndns_password’' are not displayed.

    • Delete configuration

    Delete     		Deletes the selected configuration
  • If the start configuration is deleted, the UTM boots with the default configuration.
    I.e. only LAN2 (eth1) with IP 192.168.175.1/24 is active, no users exist except for the admin, no firewall rules etc.. However, any other configurations are retained and can be reactivated.

    • Add Factory Configuration

    Add Factory Configuration     		Creates a new configuration in which settings can be saved.
    notempty
    New as of v14.1.0:
    A maximum of 20 configurations can be created.

    notempty
    The current settings are not yet saved in the new configuration.

    This is done with the button:     		Add Factory Configuration UTMuser@firewall.name.fqdnConfiguration management
    Name:     Name under which this configuration is to be displayed in the configuration management
    Then Save and close

    Import configuration

    Import configuration     		Imports the configuration of a (different) Securepoint UTM.
    Select the config file with Browse
    Import with the Upload button.
  • The appliance being imported into must have the same or a higher version than the configuration file being imported.
  • As of version 12, only configurations from a UTM v11.8.x and higher are imported.
    If an older configuration file must be used, it can first be imported into a (virtual) UTM with version 11.8.x. From there, the configuration can be exported again and imported into a v12.
    		• Import configuration UTMuser@firewall.name.fqdnConfiguration management Upload
    Name:     Label under which this configuration is to be displayed in the configuration management.
    Password:     Password used to encrypt this configuration
    Then upload or add configuration with Upload
    notempty
    New as of v14.0.0:

     If a database conversion error occurs during an import, then
    • the resulting faulty database is deleted immediately
    • an alarm is triggered in the alerting center
    • a message is displayed in the UI with the option of viewing and downloading the conversion log
    • continue with the original database

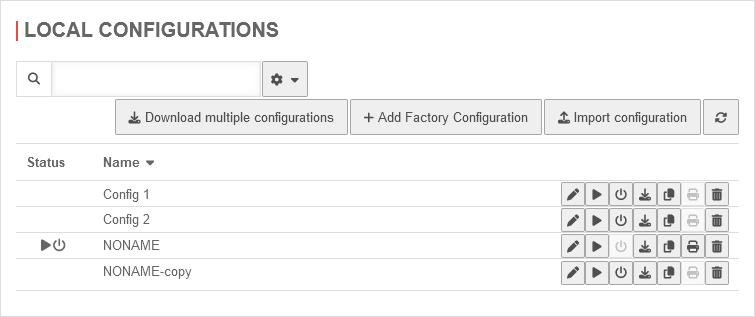

    Download multiple configurations

    Download multiple configurations notempty
    New as of v14.1.1
         		One or more configurations can be downloaded at the same time.

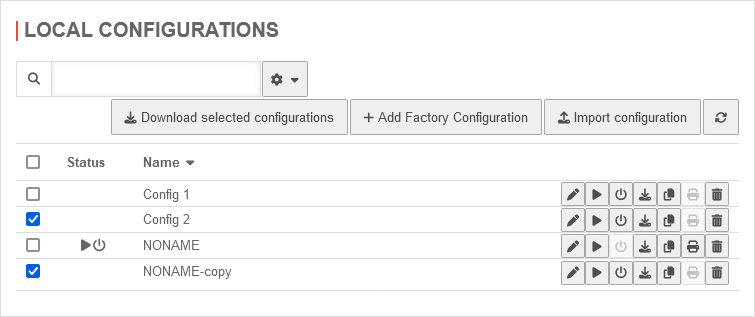

    To do this, click on the button.     		Configuration management UTMuser@firewall.name.fqdn The existing local UTM configurations
    Download selected configurations Use the checkboxes () on the far left to select the configuration you want to download. Then click on the Download selected configurations button. A .zip file containing the configuration(s) will be created.
    Download selected configurations

    Other areas

    Installation wizard

    Installation wizard
    Caption Button Description
    Run the installation wizard again: Runs the installation wizard again
    Execute the tour again: Start the tour again

    Factory settings

    Factory settings
    Reset to factory settings: Resets the configuration to factory settings. Further information in the article Factory settings.
