Packet capture

Description of the packet captureing on the UTM

New function with version: 14.1.0 (08.2025)

notempty

This article refers to a Beta version

-

All current captures and capture options can be viewed under Packet capture . New captures can also be created and the data from completed captures can be viewed and downloaded.
Caption	Value	Description	Packet capture UTMuser@firewall.name.fqdn Packet capture Log Overview of all current captures and capture options
Interface	LAN1	Interface whose network traffic is to be captured / has been captured
Status	REC	Current status of the capture (e.g. ongoing capture)
Entries	43	Number of entries captured
Size	14 KiB	Size of the capture
End	in 30 minutes	Automatic end of capture
Filter parameters	net 0.0.0.0/0	Filter parameters selected for the capture
Start capture		Open the Start capture dialog
End capture		End current capture
Log		View the current Log of the capture
Download		Download data of the capture File format can be selected in the table settings () (PCAP files can be opened and analyzed with WireShark, for example)
Delete capture		Delete current capture Irrevocably deletes all data of the current capture

Using the button Start capture the following dialog for configuring filters for the respective capture is started.
Caption	Value	Description	Start capture UTMuser@firewall.name.fqdnPacket capture Start capture Dialog for starting a capture
Interface:	LAN1	Interface to be captured
Filter (optional):		Filters that should be taken into account during capture

The captured packets can be viewed in the logs. The logs can be opened using the Packet capture log button.

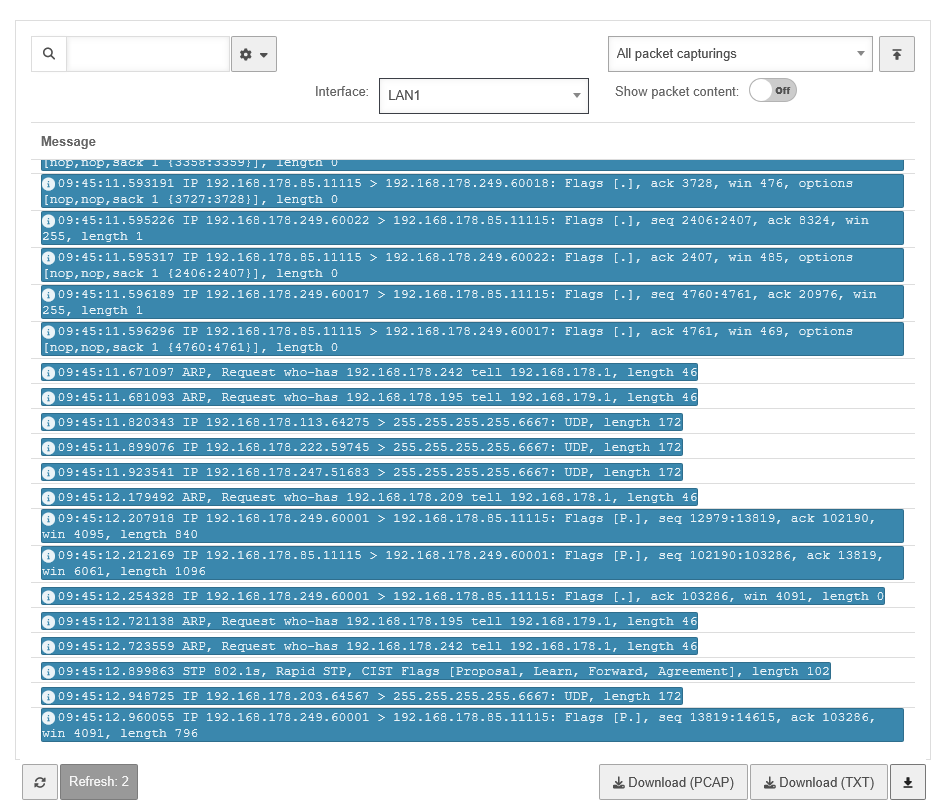

Caption	Value	Description	Pop-up window with log information
Interface:	LAN1	Interface for which the captured logs are to be displayed
Display package contents:	Off	Display contents of the captured packages
Message:		Log entries
Download (PCAP)		Download log as PCAP file (can be opened and analyzed with WireShark, for example)
Download (TXT)		Download logs as a TXT-file
