Cloud Shield Profile

Configuration of profiles for the Securepoint Cloud Shield

Last adaptation to the version: 2.14 (02.2026)

New:

New Sort button

The "Number of requests to external devices" has been removed

notemptyThis article refers to a Beta version

-

Overview

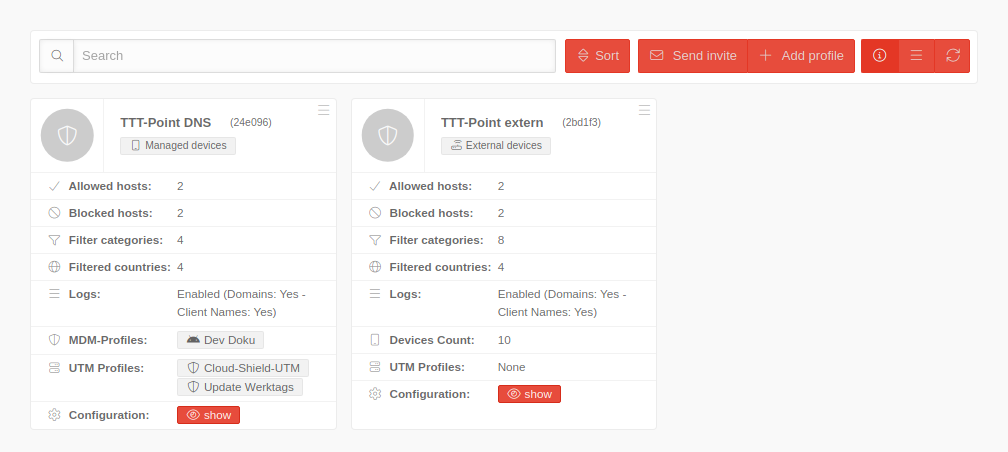

Under Cloud Shield Profiles an overview of all current Cloud Shield Profiles is displayed. Using the Add profile button, a new profile can be created. Clicking on a profile allows it to be edited. Addtionally, a profile can be edited, copied, or deleted via the button.			Profile overview

General Options
Search	Filters the display
Sort	Clicking this button opens a menu where tiles can be sorted by specific criteria
	Name	Name
	Ascending/Descending	Displays the search results alphabetically ascending/descending

Tile overview
Managed Devices	The profile has the type Managed Devices
External devices	The profile has the type External devices
Managed by ICS notemptyNew as of: 2.10	The profile has been migrated from Intelligent Cloud Shield (ICS) This profile can be viewed in Cloud Shield Profiles Ready-Only , it can still be edited in ICS Automatically receives the profile type External Devices

Allowed hosts:	0	Number of hosts explicitly authorized by this profile
Blocked hosts:	0	Number of hosts blocked by this profile
Filter categories:	3	Number of selected categories in this profile
Filtered countries:	3	Number of countries filtered by this profile
Protocols:	Deaktiviert	Status of the logs for this profile
MDM profiles: Only for Managed devices	Doku	MDM profiles that use this Cloud Shield profile
Number of devices: Only for External devices	10	Number of devices using this Cloud Shield profile. This value is configured and is not determined automatically.
UTM-Profiles:	Doku	UTM profiles using this Cloud Shield profile
Configuration:	show	Opens a dialog in which the setup of the Cloud Shield profile is displayed for all possible devices, as well as the data required in each case (e.g. configuration ID). For profiles of type Verwaltete Geräte, the profile can be added to MDM profiles. For profiles of type External devices, there are explanations for using the Cloud Shield for the following options: Download the Securepoint Cloud Shield app (PlayStore / AppStore) Scan the QR code in the portal or alternatively enter the Configuration ID from the portal into the settings of the Cloud Shield App notemptyNew as of: 2.8.x Download the Cloud Shield app from the Microsoft Store Open Cloud Shield as an administrative user Optional: Right-click to exclude adapters that are not to be configured Navigate to the configuration overview Enter the configuration ID of the Cloud Shield profile displayed Optional: Specify a name for the device. This makes it easier to identify the device in statistics and logs Save the configuration Open the settings of the Android Device Navigate to Network & Internet Select Private DNS Tap on Private DNS provider hostname Enter the address using the configuration ID from the profile Download the signed mobileconfig from the portal Install the mobileconfig on the device Chrome: Open Chrome Click on the menu icon in the upper right corner Select Settings Select Privacy and security Select Security Activate Use secure DNS under the menu item Advanced Under Select DNS provider, select the option Add custom DNS service provider Enter the address with the configuration ID from the portal Firefox: Open Firefox Click on the menu icon in the upper right corner Select Settings Enter DNS in the search field Select Maximum protection Under the Select provider menu item, select the Custom option Enter the address with the configuration ID from the portal Edge: Open Edge Click on the menu icon in the upper right corner Select Settings Click on Privacy, search and services in the left bar Scroll down to the Security section Under the menu item Use secure DNS to specify how to look up the network address for websites, select the option Select a service provider Enter the address with the configuration ID from the portal Cloud Shield can be set up directly on the router. For this you can use DNS-over-HTTPS (DoH) or DNS-over-TLS (DoT). The corresponding endpoint URL's along with the Configuration ID must be copied from the portal. notemptyNo changes need to be made to existing router configurations. Cloud Shield can be used directly in the network for all connected devices if the router does not support DoH or DoT To do this, the router's IP address must be transmitted to SPDyn via DynDNS The IPv4 and IPv6 addresses displayed here must then be entered as DNS resolvers in the router used UDP/TCP before setup After setup, the current configuration is displayed in SPDyn with the host name and the IPv4/IPv6 address UDP/TCP after setup notemptyNew as of: 2.10

Tile Options
Using the button at the top right of each profile tile, the following options are available:
Edit	View and edit profile settings. For details, see Create/Edit
Copy	Copies this profile
Deactivate blocking	The blocklist and external lists of the profile is disabled for a configuration period of time The duration can be freely set default is 5 The time unit can be selected from seconds minutes default and hours Confirm the process by clicking the save button A label showing the deactivation duration is displayed on the profile tile After the time expires, blocking is automatically re-enabled. Alternatively, you can manually re-enable is via Enable blocking
Delete	Deletes the profile from the portal. The deletion must be confirmed withOK notemptyProfiles can only be deleted if they are not assigned to any MDM or UTM profile. notemptyOnly for Cloud Shield profiles of the type external devices When a Cloud Shield Profile is deleted, a push notification is sent to the device indicating that the Cloud Shield configuration has been removed. An appropriate error message is displayed in the Cloud Shield app.

Create/Edit

Using the Create profile button

under

a new profile can be crated. The same configuration options are available during both, creation and editing.

Caption

Value

Description

General

Name

TTT-Point extern

The name of the configuration

Create profiles General tab

Type

Managed Devices

Type of the Cloud Shield profile

External devices

license
Only for: External devices

TTT-Point AG [Mobile Security] (16/5000)

License for the Cloud Shield Profile. When this Cloud Shield Profile is saved, the devices are assigned to this license. Depending on the agreed license model, this may incur costs.

Number of devices
Only for: External devices

10 devices

Number of devices using this Cloud Shield Profile

Filter

Allowed categories

Updates and important services

Selection of permitted categories

Create profiles General filter

Blocked categories

Threat Intelligence Feed Hacking Spam domains

Selection of categories to be blocked. For the selected categories, you can also define which scores (0-23) should trigger blocking.

Additionally, all available categories can be selected or deselected at once using the corresponding buttons.

Select all Deselect all

Blocked services notemptyNew as of: 2.10

Name	Description
Name of the blocked service	Description of the blocked service

This service list

maintained by Securepoint

can be used to block or re-enable the services listed there

Manage services opens a dialog box displaying the service list
Block blocks the desired service
Allow re-enables a blocked service

Manage services

Blocked countries

Russia China Belarus

Selection of countries whose IP addresses should be blocked. Below, an overview of the current selection is also displayed in the form of a map.

You can select or deselect all countries using the corresponding buttons.

Select all Deselect all

Security

DNS rebinding protection

By enabling this feature, attackers are prevented from gaining control over local devices via the internet by automatically blocking DNS responses that contain private IP addresses. Both private IPv4 and private IPv6 addresses are blocked.

Create profiles Security tab

Extended DNS Rebinding Protection

When activated , IPv6 addresses that are reserved for special network purposes such as documentation, tunneling or packet discarding are blocked. These are not typically used on the internet.

IDN Homograph Attack protection

By activating this option, domains that pretend to be other domains by misusing the large character encoding that is available with the introduction of Internationalized Domain Names (IDNs) are blocked. With this option, only domains with ASCII characters are permitted.

Blocking of disguised third-party trackers

The activation blocks third-party trackers that disguise themselves as first-party providers. This attack is also known as CNAME cloaking.

Safe Search

Activation filters the results in all major search engines, including images and videos.

Restricted youtube mode

By activating this, YouTube content for adults is filtered. All comments will also be hidden.

Block Private Relay notemptyNew as of: 2.12

When enabled , this feature blocks iCloud Private Relay and routes traffic through Cloud Shield
This ensures devices remain fully protected—devices with Private Relay enabled bypass protection
It is therefore recommended to enable this function

AI Filter

AI Filter Experimental

The AI-based filter detects previously unknown threats through real-time risk analysis. Only domains that are not already classified by our content filter are checked.

Create profiles AI filter tab

notemptyNo data transfer: All analyses take place in the Securepoint infrastructure - there is no transmission to third parties!

Own AI development: The filter is based on Securepoint's own machine learning model - specifically trained on current threat patterns on the web.

Activate AI Filter

When activated , malicious domains are blocked with the Securepoint machine learning model, which has been trained with tens of thousands of benign and malicious domains.

Rating

Adjust the threshold individually to the security needs. The lower the threshold, the more potentially harmful pages will be blocked - even if this can lead to some false positives.

50%

A page is blocked with a probability of 50%.

This setting offers the highest possible protection, but increases the likehood of false positives.

70%

Blocks pages that are classified as threatening with a probability of least 70%.

Good balance between security and surfing comfort.

90%

Ideal for uasers who want maximum freedom on the web while still being protected from clearly malicious pages.

With this setting, the risk of false positives is low, but potentially more threats remain undetected.

Allow list

Allowed IPs

Explicitly allowed IP addresses (even if they are on the block list)

Create profiles Allow list tab

Allowed domains

Domains that should be allowed. A subdomain can also be added to allow this if the associated higher domain is not allowed.

Block list

Blocked IP's

IP addresses that are to be blocked

Create profiles tab block list

Blocked domains

Domains that are to be blocked. This also blocks all associated subdomains. If certain subdomains are to be allowed, they can be explicitly added to the allow list.

External Lists

Custom Blocklists

Add Blocklist

Adding custom blocklists. All common formats are supported, e.g. hosts and ABP.

Create profiles External lists tab

Custom Blocklists

Activated

When activated , the blocklist is activated

Name

Name of the blocklist

URL

URL of the blocklist

Authentication notemptyNew as of: 2.12

Authentication method

No authentication

Sets the authentication method for accessing the list

No authentication	Access to the list does not require authentication
Basic-Authentication	Access to the list requires Basic Authentication with a username and password
Bearer-Token	Access to the list requires a Bearer-Token

Username
For the Basic-Authentication method

The username for authentication

Password
For the Basic-Authentication method

Show password
Hide password

The password for authentication

Bearer-Token
For the Bearer-Token method

Show password
Hide password

Enter the required Bearer-Token

HTTP-Header notemptyNew as of: 2.12

Add HTTP-Header

Add custom HTTP headers for accessing the list

Header

Key

X-Example-Header

The key for the HTTP-Header

Value

12345

The value for the HTTP-Header key

Custom Allowlists

Add Blocklist

Adding custom allowlists. All common formats are supported, e.g. hosts and ABP.

Custom Allowlists

Activated

When activated , the allowlist is activated

Name

Name of the allowlist

URL

URL of the allowlisten

Authentication notemptyNew as of: 2.12

Authentication method

No authentication

Sets the authentication method for accessing the list

No authentication	Access to the list does not require authentication
Basic-Authentication	Access to the list requires Basic Authentication with a username and password
Bearer-Token	Access to the list requires a Bearer-Token

Username
For the Basic-Authentication method

The username for authentication

Password
For the Basic-Authentication method

Show password
Hide password

The password for authentication

Bearer-Token
For the Bearer-Token method

Show password
Hide password

Enter the required Bearer-Token

HTTP-Header notemptyNew as of: 2.12

Add HTTP-Header

Add custom HTTP headers for accessing the list

Header

Key

X-Example-Header

The key for the HTTP-Header

Value

12345

The value for the HTTP-Header key

DNS-Rewrites

DNS-IP-Rewrites

Add IP-Rewrite

Define or overwrite the DNS response for any domain. Any IP address can be used as the response.

Create profiles tab DNS-Rewrites

DNS-IP-Rewrites

Domain

printer.lan

Domain which is to be overwritten

Answer

192.168.0.42

IPs that are sent in response to the overwritten domain

DNS-CNAME-Rewrites

Add CNAME rewrites

Define or overwrite the DNS response for any domain. Any other domain can be used as the response.

DNS-CNAME-Rewrites

Domain

ttt-point.de

Domain which is to be overwritten

Answer

intern.ttt-point.de

Domain that is sent in response to the overwritten domain

Protocols

Activate protocols

Activates the recording of DNS logs. This setting is required for evaluating the statistics.

Create profiles tab Protocols

Log domains
is only displayed if Enable protocols is activated

If this setting is set, domain names are saved for the statistics and logs. Otherwise, a placeholder is displayed.

Log device names
is only displayed if Enable protocols is activated

If this setting is set, the device names for the statistics and logs are saved independently of the client setting.

Others

Performance

Create profiles Tab Other

Cache-Boost

Reduces the number of DNS queries by enforcing a minimum TTL (Time-To-Live) of 5 minutes. Higher TTLs are not overwritten.

Behavior for blocked domains

Behaviour

Block page

Specifies the action for blocked domains

0.0.0.0 / ::0	Returns an address that cannot be routed
Block page	Displays a block page as soon as a domain is blocked. In some cases an HTTPS warning may be displayed, this can be avoided by downloading and installing the Securepoint Certification Authority.
User defines IPs	Responds with user-defined IP addresses
User defined CNAME	Responds with a user-defined CNAME
NXDOMAIN	Tells the client that the requested domain does not exist
REFUSED	Tells the client that the DNS server refuses to answer the request

Assignment

A Cloud Shield profile can be assigned to an iOS profile under Mobile Security iOS/iPadOS Profile / Tab Cloud Shield.

iOS Cloud Shield

Caption

Value

Description

Cloud Shield settings

Activate Cloud Shield

Activate Cloud Shield with this profile. This allows the profile to be linked with a Cloud Shield profile

If Cloud Shield is active , enable Security under Security / VPN (link to the wiki article) cannot be activated at the same time
If enable Security under Security / VPN is activated, Cloud Shield will automatically be deactivated and cannot be reactivated
For profiles created before version 2.3, where both Enable Security and Cloud Shield are active, these buttons will be displayed as inactive
This can be resolved by removing one of the two apps under Applications

If the iOS/iPad device is integrated into a VPN configuration (ASC), Cloud Shield can still be used if

split DNS is used in the VPN configuration (ASC).
notemptyNew as of: 2.12A corresponding message will be displayed if no VPP license is available: To use the Cloud Shield feature, you need a VPP license for the Securepoint Cloud Shield app from Apple Business Manager

Profile

TTT-Point DNS

Select Cloud Shield profile whose Cloud Shield configuration should be used.

The profile must be created in advance in the Cloud Shield Profile menu item, see the following Wiki article.

Name

Device Custom name

Choose which attribute should be used as the device name to identify the devices in Cloud Shield statistics and logs

Not specified	Do not set a device name. This means the device cannot be identified in the statistics and logs.
Device Custom name	Uses the default device name as device name
Device alias	Uses the device alias as the device name
Device ID	Uses the device ID as the device name
Username	Uses the assigned username as devicename

Install CA for block page

When enabled the CA certificate for the block page is installed on the device, so that no certificate warnings are shown when a page is blocked.

Allow Cloud Shield deactivation notemptyNew as of: 2.13

Allows the user to temporarily disable Cloud Shield in the app
Even if this option is disabled, Cloud Shield can still be manually turned off in the device settings
When the switch is disabled, all SSIDs excluded by the user in the app will be deleted, and only the settings defined in the portal will remain effective

Exclude SSIDs notemptyNew as of: 2.13

Add SSIDs

Enter the Wi-Fi SSIDs where the Cloud Shield service should be disabled

A Cloud Shield profile can be assigned to an Android profile under Mobile Security Android Profile / Tab Cloud Shield.

Android Cloud Shield

Caption

Value

Description

Settings Cloud Shield

Activate Cloud Shield

After enabling a Cloud Shield Profile can be selected, and the Cloud Shield App for Android will be installed automatically.

In the Applications tab, the Securepoint Cloud Shield app is automatically added

If Cloud Shield is active , Securepoint Mobile Security can be activated in Security / VPN (link to wiki article) until not activated
If Securepoint Mobile Security is activated under Security / VPN, Cloud Shield is automatically deactivated and cannot be activated until not is activated
For profiles that were created before version 2.3 and where Securepoint Mobile Security and Cloud Shield are active, these buttons are displayed as inactive
Can be solved if one of the two apps is removed under Applications
notemptyCloud Shield technically uses the Android VPN service. Only one (1) VPN service (Mobile Security or Cloud Shield) can be active on Android devices at the same time.

Profile

Select Profile

The Cloud Shield profile to be used for the Cloud Shield configuration.

The profile must be created in advance in the Cloud Shield Profile menu item, see the following Wiki article.

Install CA for block page

If is activated, the CA certificate for the block page is installed on the device so that certificate warnings are no longer displayed if a page is blocked.

In the

Applications

{{{2}}}

tab, the value Certificate installation is automatically set in the Delegate areas option in the Securepoint Cloud Shield application

Allow interruption of Cloud Shield notemptyNew as of: 2.13

When enabled , the user is allowed to temporarily disable Cloud Shield in the app
Even if this option is disabled , Cloud Shield can still be manually turned off in the device settings
When the switch is disabled , all SSIDs and apps excluded by the user in the app will be deleted, and only the settings defined in the portal will remain effective

Exclude SSIDs notemptyNew as of: 2.13

Add SSIDs

Enter the Wi-Fi SSIDs where the Cloud Shield service should be disabled
The user must grant the required permission in the app on their device for this feature to function correctly

Exclude apps notemptyNew as of: 2.13

Add package names

Enter the package names of the apps that should bypass the Cloud Shield service

Overview

General Options

Tile overview

Tile Options

Create/Edit

General

Filter

Security

AI Filter

Allow list

Block list

External Lists

DNS-Rewrites

Protocols

Others

Assignment

iOS Cloud Shield

Android Cloud Shield
