VPN configuration Satellite-UTM

Configuring a UTM as Satellite in the VPN configuration – Adaptive Secure Connect (ASC) – in the Securepoint Portal

Last adaptation to the version: 2.9

New:

Konkretisierung dieses Artikels auf eine UTM als Satellit

notempty

This article refers to a Beta version

-

Einleitung

Mit einer Satelliten UTM kann automatisch eine sichere Verbindung zwischen dem Core dieser VPN-Konfiguration und der ausgewählten UTM hergestellt werden.
Dieser Artikel beschreibt, wie eine im Securepoint Portal Unified Security Console vorhandene UTM als Satellite für eine VPN-Konfiguration (ASC) konfiguriert werden kann.
Soll hingegen ein unverwaltetes Gerät als Satellit genutzt werden, so wird dies im Wiki-Artikel Unverwaltete Satellit-Geräte konfigurieren beschrieben.

Prerequisite

notempty

VPN configurations in the USC require a UTM v14.0 or higher

Add Satellite-UTM

To add a UTM as a Satellite UTM, click on the Satellite / Roadwarrior button for an active, connected Core UTM. A dialog window opens in which the new Satellite UTM is configured.

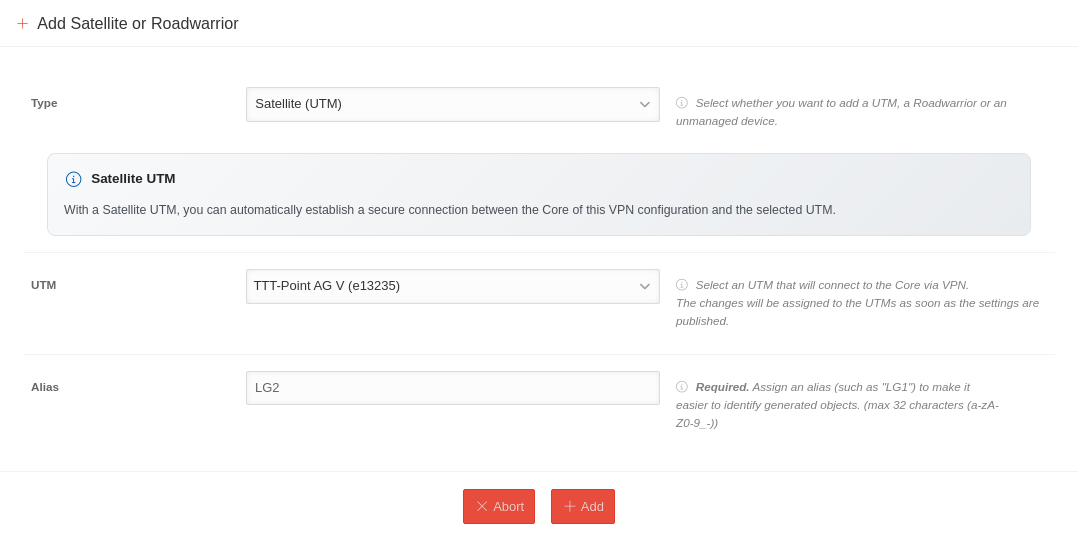

Caption	Value	Description	Dialog box for adding a Satellite UTM to the UNC
Type	Staellite (UTM)	Satellite is selected as the type
UTM	TTT-Point AG V	Selection of the UTM that is to connect to the core UTM via VPN. The configurations are assigned to the UTMs as soon as this is published. Only UTMs that are connected to the portal and online are available for selection. UTMs that are connected to the portal but are offline or whose version is not compatible are listed in the Not available list section.
Alias Mandatory field	LG2	Alias for the Satellite UTM to make it easier to assign generated objects to this UTM.
The Add button only becomes active once all entries have been completed and this UTM is then added above them.
This configuration must then be transferred using the Publish button.

Edit Satellite-UTM

An active, connected Satellite UTM can be edited using the button.
Caption	Value	Description	Dialog box for editing a Satellite UTM
Type	Staellite (UTM)	The type cannot be +changed with a Satellite UTM.
UTM	TTT-Point AG II	The UTM used as the satellite UTM cannot be changed.
Alias Mandatory field	LG2	Assign an alias for the Satellite UTM to make it easier to assign generated objects on this UTM.
This configuration must then be transferred using the Publish button.

Add Satellite-UTM rule

Caption

Value

Description

Dialog window for adding a packet filter rule to a Satellite UTM

Richtung

Satellite-UTM Core-UTM

Shows the direction of the packet filter rule, i.e. the source to the destination. The direction is changed with the change button .

Source

Please select a network object

Selection of an existing network object. Existing network groups and network objects are listed.

If no suitable network object is available, a new one can be created using the Add button .

Name	Name	Name to be given to the network object.
Type	Host	Type of the network object. Host is selected by default, alternatively Network is possible.
Address	IP address	IPv4 or IPv6 address that the network object is to use as the transfer network.
Zone	Select a zone	Zone in which the network object should be located. If no suitable zone exists, one must be created in the UTM.
Network Group	Select Network Group	Adds this network object to an existing network group.

Target

Please select a network object

Selection of an existing network object. Existing network groups and network objects are listed.

If no suitable network object is available, a new one can be created using the Add button .

Name	Name	Name to be given to the network object.
Type	Host	Type of the network object. Host is selected by default, alternatively Network is possible.
Address	IP address	IPv4 or IPv6 address that the network object is to use as the transfer network.
Zone	Select a zone	Zone in which the network object should be located. If no suitable zone exists, one must be created in the UTM.
Network Group	Select Network Group	Adds this network object to an existing network group.

Service

Select a service

Selection of an existing service. Existing service groups and services are listed.

A service can only be selected once a destination has been selected.

If no suitable service is available, a new one can be created using the Add button .

Name	Name of the service	Name of the service.
Service group name	Service group name	Adds the service to an existing service group.
Protocol	Select protocol	Protocol that the service should have.
