Configure Windows profiles for VPN clients in the USC

Last adaptation to the version: 2.5

New:

• It can be forced to set a PIN for a connection in the client

notempty

This article refers to a Beta version

-

Access: portal.securepoint.cloud Unified Security Console Windows Profiles

---

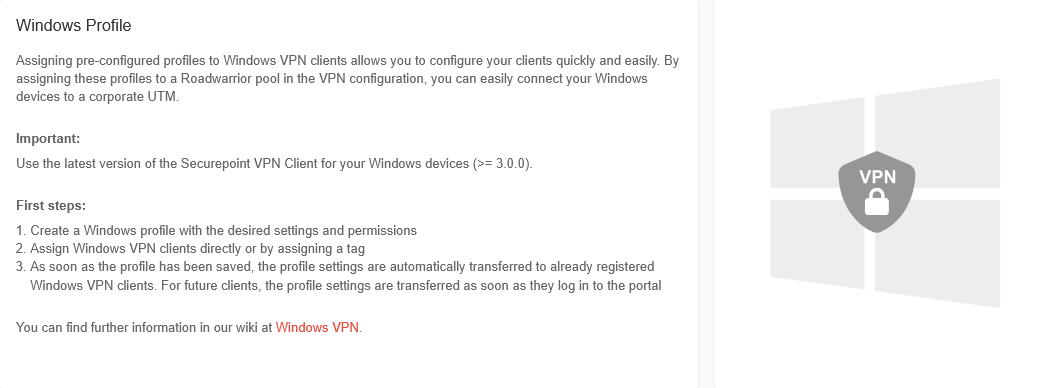

Introduction

Assigning pre-configured profiles to Windows VPN clients allows to configure clients quickly and easily. By assigning these profiles to a roadwarrior pool in the VPN configuration, you can easily connect your Windows devices to a corporate UTM.

notempty

Use the latest version of the Securepoint VPN Client for your Windows devices (>= 3.0.0)

---

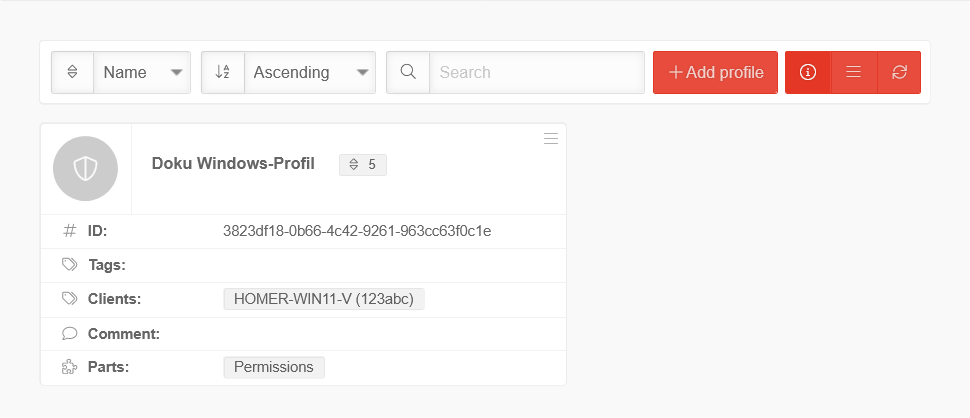

Overview

All Windows profiles including some information are displayed under Unified Security Console Windows Profiles .
Caption	Value	Description	Overview of Windows profiles
ID:	12345678-abcd-efgh-ijkl-mnopqrstuvwxy	Unique ID of the profile
Tags:		Tags of the profile
Clients:	HOMER-WIN11-V (123abc)	Clients for which this profile is configured
Comment:		Individual comment on the profile
Share:	Authorization	Configurations that are influenced by this profile

Add profile

A Windows profile can be created under  Unified Security ConsoleWindows Profile using the  Add profile button
Caption	Value	Description

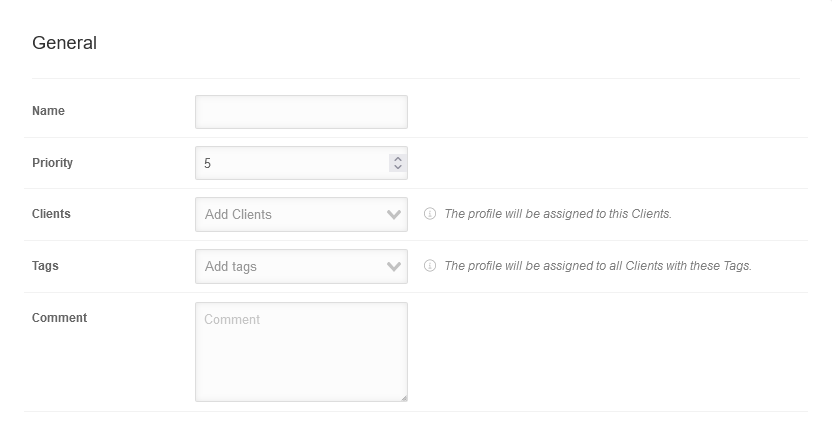

General General
Name		Name of the profile	Add profile Allgemein
Priority	5▴▾ Default	The higher the number, the higher the priority. This is only used if a device is assigned to several profiles. The profile with the highest priority is then used.
Clients	Clients Add	The profile is assigned to these clients
Tags	Tags Add	The profile is assigned to all clients with these tags
Comment	Comment	Comment that should describe the function of the profile

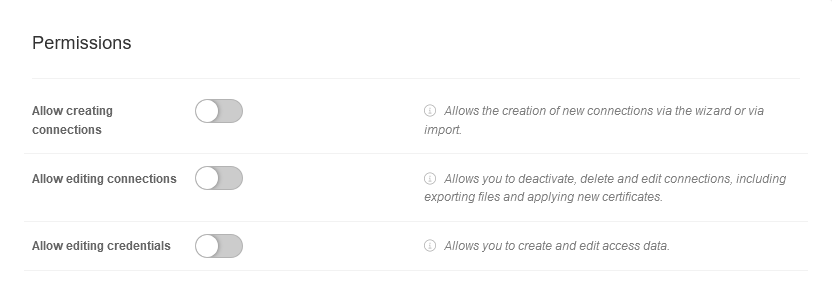

Permissions Permissions
Allow creating connections		Allow setting up new connections via the wizard or by import	Add profile Berechtigungen
Allow editing connections		Allows disabling, deleting, and editing connections, including data export and applying new certificates.
Allow editing user data		Allows storing and editing user data for the connection

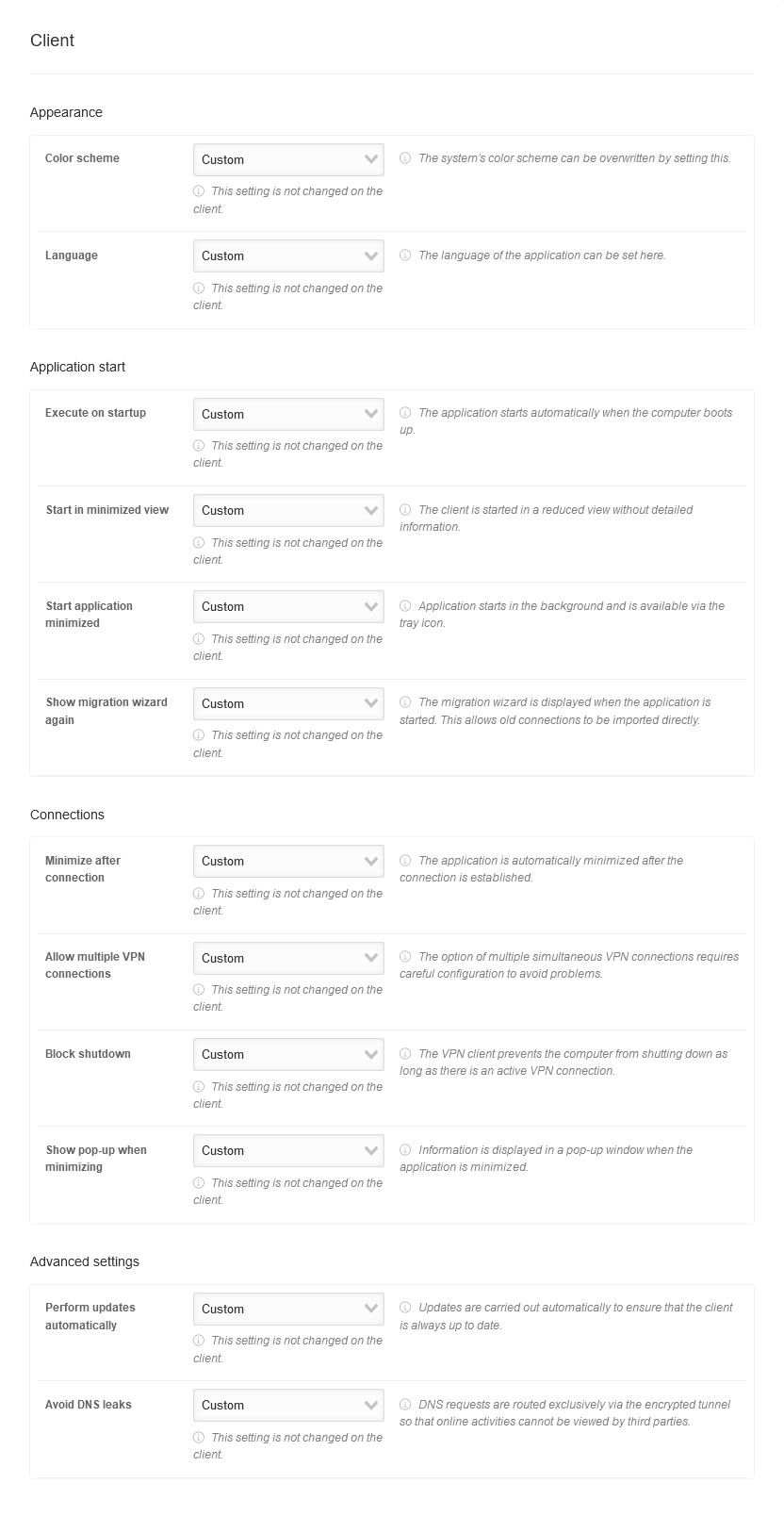

Client Client
Appearance			Add profile Client
Color scheme	Custom	Setting this allows the system's color scheme to be overridden
Language	Custom	The language of the application can be set here
Application start
Run at startup	Custom	The application starts automatically when the computer boots up
Start in minimized view	Custom	The client starts in a reduced view without detailed information
Start application minimized	Custom	The application starts in the background and is accessible via the tray icon
Show migration assistant again	Custom	The migration assistant is shown when the application starts. This allows old connections to be imported directly.
Connections
Minimize after connecting	Custom	The application is automatically, minimized after a connection is established
Allow multiple VPN connections	Custom	Allowing multiple simultaneous VPN connections requires careful configuration to avoid issues
Block shutdown	Custom	The VPN client prevents the computer from shutting down as long as there is an active VPN connection
Display pop-up when minimizing	Custom	Information is displayed in a pop-up window when the application is minimized
Advanced Settings
Perform updates automatically	Custom	Updates are carried out automatically to ensure that the client is always up to date
Avoid DNS leaks	Custom	DNS requests are routed exclusively through the encrypted tunnel. This ensures that online activities cannot be viewed by third parties.

---

Edit profile

Existing profiles can be edited. In addition to the existing profile tabs (see above), two additional ones are displayed.

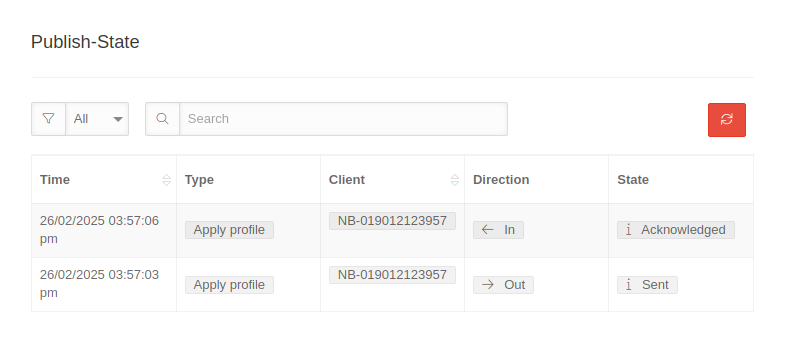

Publication status

Publication status

Publication status

• This shows all Windows VPN clients that have this Windows profile
• Further information on these Windows VPN clients is also displayed

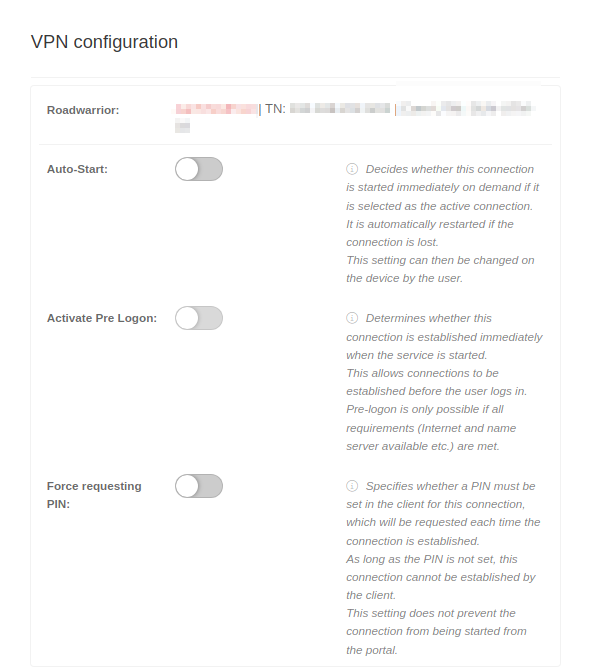

VPN configuration

VPN configuration

notempty This tab is only displayed if a VPN configuration has been applied to the Windows VPN client.
Caption	Value	Description	VPN configuration
Roadwarrior:	TTT-Point RW | TN: 192.168.175.1/24 | Core-UTM: TTT-Point UTM	Displays the corresponding Roadwarrior of the VPN configuration with the transfer network and the core UTM
Auto start:		If    is activated, this connection is automatically started if it is selected as the active connection If the connection is interrupted, it is automatically restarted This setting can be changed on the device by the user afterwards
Activate Pre-Log-on:		If    is activated, this connection is established immediately when the Windows VPN client is started Connections can be established before the user has logged in Pre-logon is only possible if all requirements (Internet and name server available etc.) are met can only be activated when Auto-Start is active    If Activate pre-log-on is active    and Auto-Start is deactivated, Activate pre-log-on is also automatically deactivated
notempty New as of: 2.5 Force PIN to be set:		If    is activated a PIN must be set in the client for this connection, which will be requested each time the connection is established. As long as the PIN is not set, this connection cannot be established by the client. This setting does not prevent the connection from being started from the portal.
