IPSec - End to Site / Roadwarrior

Configuration of an End-to-Site-connection with IPSec for Roadwarrior

Last adaptation to the version: 12.6.2

New:

Updated to Redesign of the webinterface
New function to secure the ports in use: Connection Rate Limit

Last updated:

Where necessary, only certificates with a private key part are offered

notempty

This article refers to a Resellerpreview

12.5 12.4 12.2.5 12.2.3 11.8 11.7 11.6.12

Introduction

A Roadwarrior connection connects individual hosts to the local network. This allows, for example, a field service employee to connect to the network of the headquarters.
This step-by-step guide shows how to configure an end-to-site connection. The selected connection type is native IPSec with IKEv1.
For native IPSec connections with IKEv1 the client needs a separate program.

Configuration of a native IPSec connection

New connections can be added in the menu VPN IPSec Area Connections Button + Add IPSec Connection

Wizard

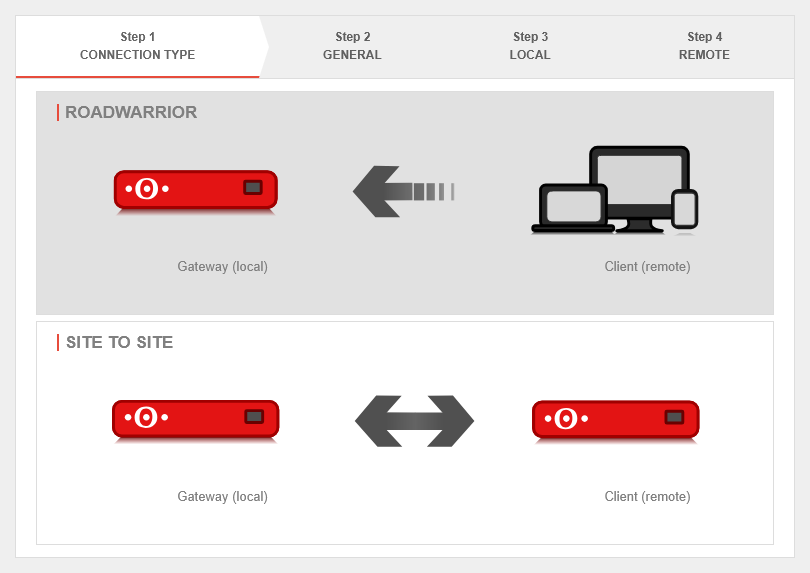

Connection Type Step 1 - Connection Type
Caption	Value	Description	Add IPSec connection UTMuser@firewall.name.fqdnVPNIPSec Wizard step 1
Selection of the connection type	The following connections are available: Roadwarrior Site to Site	For the configuration of an E2S / End-to-Site-connection Roadwarrior is to be selected.

General Step 2 - General
Name:	IPSec Roadwarrior	Chose unique name	Wizard step 2
Connection Type:	IKEv1 - Native	Possible connection types: IKEv1 - XAuth IKEv1 - Native IKEv2 - Native IKEv1 - L2TP The connection type IKEv1 - L2TP can only be selected if L2TP is set to Autostart or explicitly enabled in the admin interface. Enable L2TP under: Extras Advanced settings Area Hidden functions Enable L2TP: Yes Activate hidden menu buttons: Ctrl + Alt + A Please note which type is supported by the operating system
notempty In setup step 2, two fundamentally different connection types are available for selection. Depending on whether a connection type of IKEv1, or IKEv2 is selected, the upcoming setup steps 3 and 4 differ:

Local – IKEv1 Step 3 - Local - IKEv1
Local Gateway ID:		The gateway ID is included in the authentication. This can be an IP address, a host name or an interface. Automatically filled in when an X.509 certificate is selected.	Wizard step 3 - IKEv1
Authentication method:	Pre-Shared Key	A pre-shared key is in use
	Certificate	An existing certificate is being used
	RSA	An existing private RSA key is in use
X.509 Certificate: Only certificates with a private key part can be selected Only for authentication method Certificate and EAP-TLS	Server Certificate	Selection of a certificate
Privater RSA-Schlüssel:	IPSec Key	Selecting an RSA key
Share networks: Only for IKEv1 - Native	»192.168.250.0/24	Enable networks for the IPSec connection

Local – IKEv2 Step 3 - Local - IKEv2
Local Gateway ID:		The gateway ID is included in the authentication. This can be an IP address, a host name or an interface. Automatically filled in when an X.509 certificate is selected.	Wizard step 3 - IKEv2
Authentication method	Pre-Shared Key	A pre-shared key is in use
	Certificate	An existing certificate is being used
	RSA	An existing private RSA key is in use
	EAP-TLS Only with IKEv2	EAP-TLS is used. Required for MSCHAPv2.
X.509 Certificate: Only for authentication method Certificate and EAP-TLS	Server Certificate	Selection of a certificate
Private RSA key:	IPSec Key	Selecting an RSA key
Share networks:	192.168.250.0/24	Enable networks for the IPSec connection

Remote terminal – IKEv1 Step 4 - Remote terminal - IKEv1
Public RSA key: Only for authentication method RSA	IPSec Key	The required public RSA key of the remote terminal	Wizard step 4 - IKEv1
Remote Gateway ID: Only for IKEv1 - Native	192.0.2.192 or My_Roadwarrior	If more than one IPSec connection is established, a unique ID should be entered here. The password of incoming connections is validated against the ID of the IPSec connection. If no IP address is specified as ID, further settings must be made for site-to-site connections.
IP address / pool: Only for IKEv1 - XAuth	»192.168.22.35/24	IP address, or pool for establishing the IPSec connections
Open user dialog after completion: Only with IKEv1 - L2TP and IKEv1 - XAuth	Yes	Opens the user dialog of the UTM after the wizard is done. For the establishment of this connection the input of user data is necessary. The user needs the necessary rights.
IP Address(es): Only for IKEv1 - Native	192.168.222.35	Additional IP address for the Roadwarrior with which the IPSec connection is established. For this example, after the wizard has finished, the ip-address just dedicated is edited and for the Remote network the value 192.168.222.0/24 is entered.

Remote terminal – IKEv2 Step 4 - Remote terminal - IKEv2
Public RSA key: Only for authentication method RSA	IPSec Key	The required public RSA key of the remote terminal	Wizard step 4 - IKEv2
IP address / pool:	192.168.22.35/24	IP address, or pool for establishing the IPSec connections
Authentication method Only for authentication method Certificate or EAP-TLS	Certificate	An existing certificate is being used
	EAP-MSCHAPV2	EAP-MSCHAPV2 is in use
	EAP-TLS	EAP-TLS is used. Required for MSCHAPv2.
X.509 Certificate: Only for authentication method Certificate or EAP-TLS	IPSec Cert	The certificate for the remote terminal. Two different certificates must be selected for the local and remote side.
User groups: Only for EAP-MSCHAPv2	IPSec User groups	Selection of the authorized user group. This must be created beforehand.

Set of rules

To grant access to the internal network, the connection must be allowed.

Implied rules notempty It is possible but not recommended to do this with implied rules in Firewall Implied Rules section VPN and IPSec Traffic. However, these implied rules enable the ports used for IPSec connections on all interfaces.			Implied rules UTMuser@firewall.name.fqdnFirewall Implied rules, VPN section Implied rules, section IPSec Traffic

Creating a network object
In the Menu under Firewall Network objects Button + Add object
Caption	Value	Description	Add network object UTMuser@firewall.name.fqdnFirewallNetwork objects Network objects
Name:	ngrp-IPSec-Roadwarrior	Chose unique name
Type:	VPN network	Type to be selected
Address:	192.168.222.0/24	Roadwarrior IP address or the Roadwarrior pool entered in the Installation Wizard in step 4 (or subsequently adjusted in phase 2). In this example the network 192.168.222.0/24.
Zone:	vpn-ipsec	Zone to be selected
Groups:		Optional

Packetfilter rules

Add portfilter rule at Firewall Packetfilter Button + Add Rule.
The first rule allows the IPSec tunnel to be built at all.
A second rule allows the Roadwarrior to access the desired network, host or network group.

#	Source	Destination	Service	NAT	Action	Active
4	internet	external-interface	ipsec		Accept	On
5	IPSec Roadwarrior	dmz1-network			Accept	On

Now a connection with a Roadwarrior can be established.
A client may have to be used for this. It must be ensured that the parameters on both sides are identical in all phases of the connection.
Necessary changes, when using an NCP client:

UTM
- Diffie-Hellman Group (Phase 1)
- DH-Group (PFS) (Phase 2)
  or
NCP- or Greenbow-Client:
- IKE-DH-Group

Additionally when using IKEv1:

NCP- or Greenbow-Client:
- Exchange mode: Main Mode (IKEv1)
- Activate Config_mode

Additional settings

In addition to the settings that have already been set in the wizard, further parameters can be configured:

IKEv1

Caption	Value	Description
Phase 1

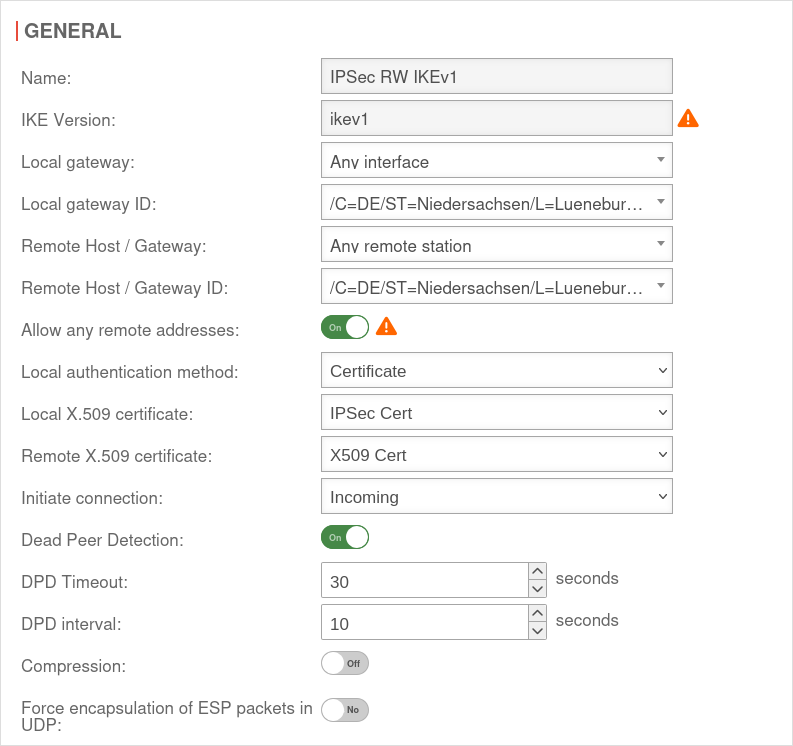

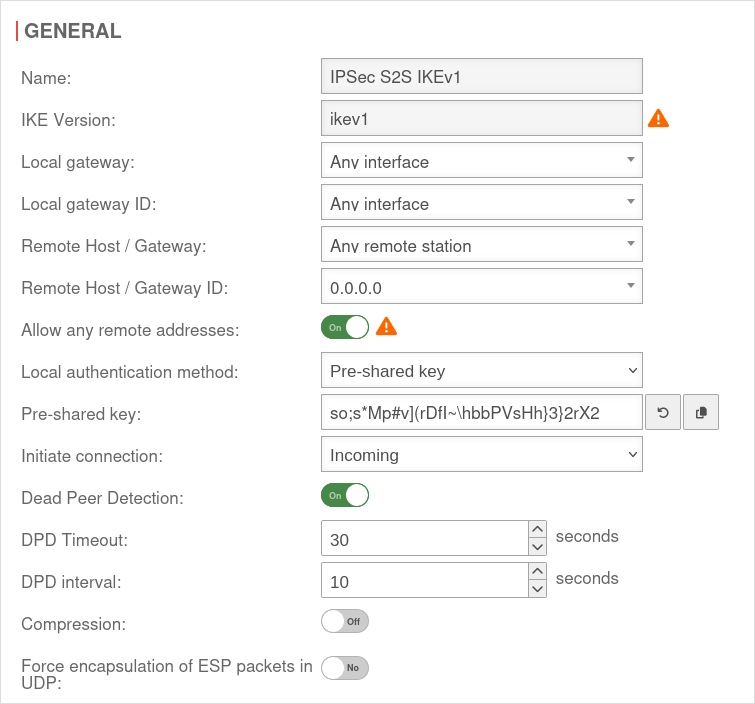

VPN IPSec Area Connections Button Phase 1 General General
Caption	Value	Description	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal
Allow any remote addresses:	On Default	Disable this option for site-to-site connections with DynDNS hosts if multiple IPsec connections with a priori unknown addresses (DynDNS S2S, Roadwarrior) are configured.
Startup behavior:	Outgoing	The tunnel is initiated by the UTM even if no packets are sent. Incoming requests are accepted.
	Incoming Default if Remote Host is any	The UTM accepts incoming tunnel requests. No outgoing connection is created.
	Route Default if Remote Host known	The tunnel is initiated by the UTM only when packets are to be sent.notempty Only set as default value if Any remote station is not selected as Remote Host / Gateway.
	Route Default if Remote Host known	The tunnel is initiated by the UTM only when packets are to be sent.notempty Only set as default value if Any remote station is not selected as Remote Host / Gateway.
Ignore	Deactivates the tunnel
Generate traffic: For Initiate Connection Route	On	Prevents unwanted disconnections when no data traffic is taking place
Dead Peer Detection:	On	Checks at a set interval whether the tunnel still exists. If the tunnel was terminated unexpectedly, the SAs are dismantled. (Only then it is also possible to reestablish a new tunnel). When deactivated, the option Restart after abort in phase 2 is also automatically deactivated.
DPD Timeout:	30 seconds	Period before the state under Startup behavior is restored. Under IKEv2 this parameter is not available. The same values are used here as for regular packets.
DPD Interval:	10 seconds	Testing interval
Compression:	Off	Compression is not supported by all remote stations
Enable MOBIKE:	Yes	Used to deactivate the MOBIKE option Deactivation prevents encrypted data from a remote station from being additionally encapsulated in 4500udp, which leads to problems in communication.

Section IKE Settings that must be identical in the UTM and in the client: IKE
Caption	Default UTM	Default NCP Client	Phase 1 IKEv1	Phase 1 IKEv2
Encryption:	»aes128	AES 128 Bit
Authentication:	»sha2_256	Hash: SHA2 256 Bit
Diffie-Hellman Group:	»ecp521	IKE DH-Gruppe: DH2 (modp1024)
Aktuelle Kombinationen:	aes128-sha2_256-ecp521

Section IKE More settings:
Strict:	Off	The configured parameters (authentication and encryption algorithms) are preferred for connections
Strict:	On	No further proposals are accepted. A connection is only possible with the configured parameters.
IKE Life time:	Out 3 hours	Validity period of the Security Association: Agreement between two communicating entities in computer networks. It describes how the two parties apply security services to communicate securely with each other. When using multiple services, multiple security connections must also be established. (Source: Wikipedia 2022) in phase 1 Can be activated On in addition to IKE Rekeytime. If the Lifetime is set, the value must be greater than the Rekeytime.
IKE Life time:	1 hour	Validity period of the Security Association: Agreement between two communicating entities in computer networks. It describes how the two parties apply security services to communicate securely with each other. When using multiple services, multiple security connections must also be established. (Source: Wikipedia 2022) in phase 1
IKE Rekeytime:	2 hours	The validity period in which the connection is established (initial or after termination)
IKE Rekeytime:	notempty Starting with version 12.5.0, for already existing' connections that have no rekeytime' set, the value of the lifetime is entered at this point and the value of the lifetime is set to 0. This significantly increases the stability of the connection and should not bring any disadvantages. If a value has already been set for the rekeytime (possible from v12.4) no change is made. Example: Current version: ike_lifetime = 2 ike_rekeytime = 0 After update: ike_lifetime = 0 ike_rekeytime = 2 ---- Current version: ike_lifetime = 2 ike_rekeytime = 1 After update: (without change) ike_lifetime =2 ike_rekeytime = 1
Rekeying:	unlimited (recommended)	Number of attempts to establish the connection (initial or after abort). For E2S connections (Roadwarrior), the setting 3 times can avoid endless attempts to connect to devices that are not correctly logged out.

Phase 2
VPN IPSec Area Connections Button Phase 2 General Section General Settings that must be identical in the UTM and in the client:
Caption	Default UTM	Default NCP Client	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv1 / Roadwarrior	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv2 / Roadwarrior	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv1 / S2S	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv2 / S2S
Encryption:	»aes128	AES 128 Bit
Authentication:	»sha2_256	SHA2 256 Bit
Diffie-Hellman Group:	»ecp521	IKE DH-Gruppe: DH2 (modp1024)
Diffie-Hellman Group:	»ecp521	IKE DH-Gruppe: DH2 (modp1024)
Aktuelle Kombinationen:	aes128-sha2_256-ecp521
Key service life:	8 hours	Validity period of the key in phase 2
Exchange mode:	Main Mode (Not configurable)	Aggressive Mode (IKEv1) Must be changed to Main Mode in the NCP client! The UTM does not support Aggressive Mode for security reasons.
Restart on abort:	No	If the connection was terminated unexpectedly, activating will restore the state configured under Startup behavior in phase 1. The Dead Peer Detection is automatically activated in phase 1.
Group subnet combinations:	Yes If grouping is not supported by the remote station, only the first subnet is connected despite the status display in the overview to the contrary.	If more than one network is configured on the local side or at the remote gateway, a separate SA is negotiated for each subnet combination when it is deactivated. This results in numerous subnet combinations and thus many SAs, especially with multiple subnets, and leads to limitations and losses in the stability of the connections due to the design of the IPSec protocol.
DHCP:	Out	When enabled clients receive IP addresses from a local network. This requires further configurations, see wiki article on DHCP for IPSec.

Subnets Section Subnets
	Scenario: All subnets have access to each other The wizard automatically connects each local network to each remote network. With an SSH login as root, the behavior can be understood particularly well. Example with two subnets each. Group subnet combinations Enabled On `root@firewall:~# swanctl --list-conns` `IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 192.168.219.0/24 remote: 192.168.192.0/24 192.168.193.0/24` Group subnet combinations Disabled Off `root@firewall:~# swanctl --list-conns` IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S_4: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.192.0/24 IPSec$20S2S_5: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.193.0/24 IPSec$20S2S_6: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.219.0/24 remote: 192.168.192.0/24 IPSec$20S2S_7: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.219.0/24 remote: 192.168.193.0/24	All subnets have access to each other

	Scenario: Not all subnets may access every network of the remote gateway If in phase two a local network is not connected to all remote networks (or a remote network is not connected to all local ones), this will not be taken into account if the option Group subnet combinations is active! notempty The Group subnet combinations option will connect all local networks to all remote networks! notempty Port filter rules make it possible to control access. With an SSH login as root, the behavior can be understood particularly well. Example with two subnets each. Group subnet combinations Enabled On `root@firewall:~# swanctl --list-conns IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s` `local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 192.168.219.0/24 remote: 192.168.192.0/24 192.168.193.0/24` Group subnet combinations Disabled Off `root@firewall:~# swanctl --list-conns IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s` `local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S_4: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.192.0/24 IPSec$20S2S_5: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.193.0/24 IPSec$20S2S_6: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.219.0/24 remote: 192.168.192.0/24`	Datei:UTM v12.6.2 VPN Ipsec RW IKEv1 Phase 2 reduzierte Subnetze-enpng The second local subnet is connected only to one remote subnet

Troubleshooting

Detailed Troubleshooting instructions can be found in the Troubleshooting Guide.
If an email address should be used as gateway ID, it is necessary to insert a double @@ in front of the ID (mail@... becomes @@mail@...). Otherwise the ID will be treated as FQDN.

IKEv2

Caption	Value	Description
Phase 1

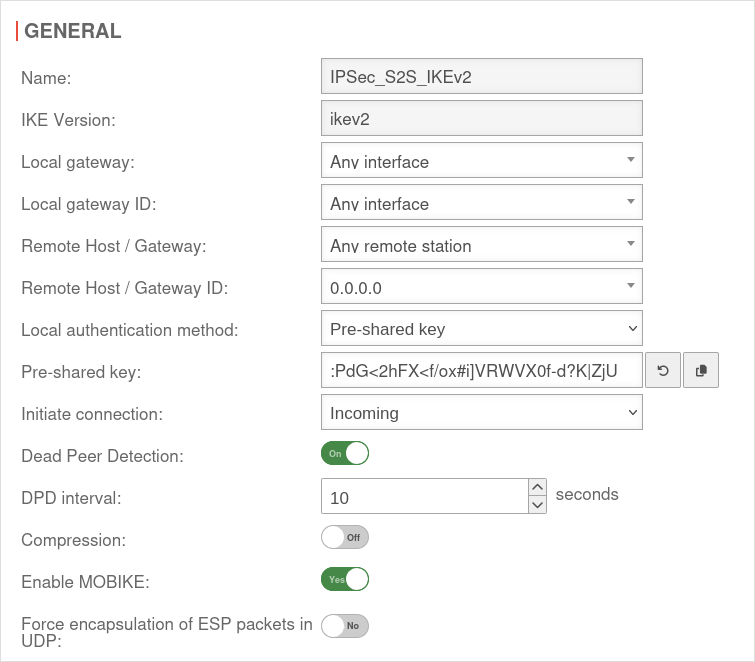

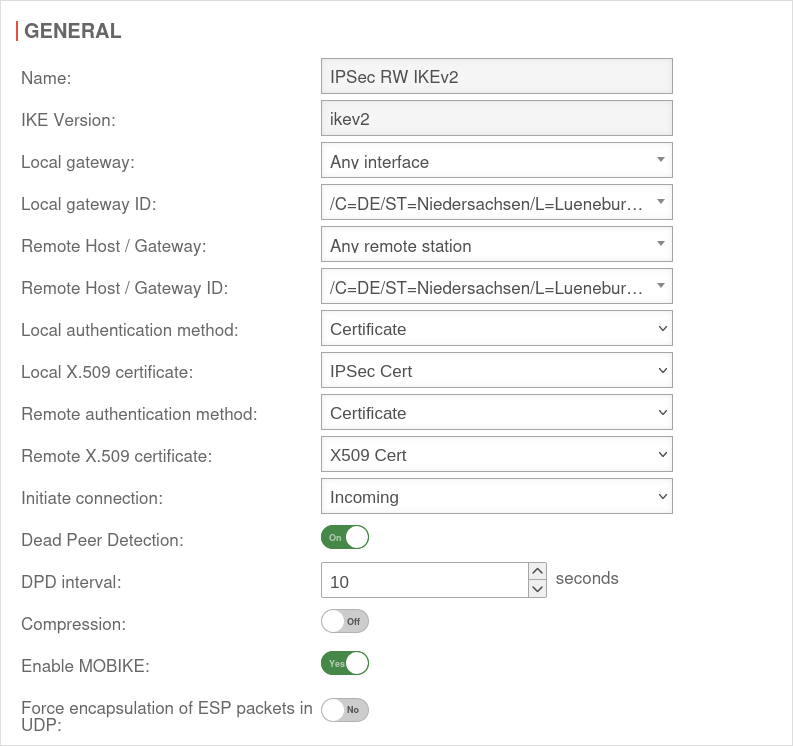

VPN IPSec Area Connections Button Phase 1 General General
Caption	Value	Description	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal	Edit Phase 1 UTMuser@firewall.name.fqdnVPNIPSec Phase 1 Genereal
Allow any remote addresses:	On Default	Disable this option for site-to-site connections with DynDNS hosts if multiple IPsec connections with a priori unknown addresses (DynDNS S2S, Roadwarrior) are configured.
Startup behavior:	Outgoing	The tunnel is initiated by the UTM even if no packets are sent. Incoming requests are accepted.
	Incoming Default if Remote Host is any	The UTM accepts incoming tunnel requests. No outgoing connection is created.
	Route Default if Remote Host known	The tunnel is initiated by the UTM only when packets are to be sent.notempty Only set as default value if Any remote station is not selected as Remote Host / Gateway.
	Route Default if Remote Host known	The tunnel is initiated by the UTM only when packets are to be sent.notempty Only set as default value if Any remote station is not selected as Remote Host / Gateway.
Ignore	Deactivates the tunnel
Generate traffic: For Initiate Connection Route	On	Prevents unwanted disconnections when no data traffic is taking place
Dead Peer Detection:	On	Checks at a set interval whether the tunnel still exists. If the tunnel was terminated unexpectedly, the SAs are dismantled. (Only then it is also possible to reestablish a new tunnel). When deactivated, the option Restart after abort in phase 2 is also automatically deactivated.
DPD Timeout:	30 seconds	Period before the state under Startup behavior is restored. Under IKEv2 this parameter is not available. The same values are used here as for regular packets.
DPD Interval:	10 seconds	Testing interval
Compression:	Off	Compression is not supported by all remote stations
Enable MOBIKE:	Yes	Used to deactivate the MOBIKE option Deactivation prevents encrypted data from a remote station from being additionally encapsulated in 4500udp, which leads to problems in communication.

Section IKE Settings that must be identical in the UTM and in the client: IKE
Caption	Default UTM	Default NCP Client	Phase 1 IKEv1	Phase 1 IKEv2
Encryption:	»aes128	AES 128 Bit
Authentication:	»sha2_256	Hash: SHA2 256 Bit
Diffie-Hellman Group:	»ecp521	IKE DH-Gruppe: DH2 (modp1024)
Aktuelle Kombinationen:	aes128-sha2_256-ecp521

Section IKE More settings:
Strict:	Off	The configured parameters (authentication and encryption algorithms) are preferred for connections
Strict:	On	No further proposals are accepted. A connection is only possible with the configured parameters.
IKE Life time:	Out 3 hours	Validity period of the Security Association: Agreement between two communicating entities in computer networks. It describes how the two parties apply security services to communicate securely with each other. When using multiple services, multiple security connections must also be established. (Source: Wikipedia 2022) in phase 1 Can be activated On in addition to IKE Rekeytime. If the Lifetime is set, the value must be greater than the Rekeytime.
IKE Life time:	1 hour	Validity period of the Security Association: Agreement between two communicating entities in computer networks. It describes how the two parties apply security services to communicate securely with each other. When using multiple services, multiple security connections must also be established. (Source: Wikipedia 2022) in phase 1
IKE Rekeytime:	2 hours	The validity period in which the connection is established (initial or after termination)
IKE Rekeytime:	notempty Starting with version 12.5.0, for already existing' connections that have no rekeytime' set, the value of the lifetime is entered at this point and the value of the lifetime is set to 0. This significantly increases the stability of the connection and should not bring any disadvantages. If a value has already been set for the rekeytime (possible from v12.4) no change is made. Example: Current version: ike_lifetime = 2 ike_rekeytime = 0 After update: ike_lifetime = 0 ike_rekeytime = 2 ---- Current version: ike_lifetime = 2 ike_rekeytime = 1 After update: (without change) ike_lifetime =2 ike_rekeytime = 1
Rekeying:	unlimited (recommended)	Number of attempts to establish the connection (initial or after abort). For E2S connections (Roadwarrior), the setting 3 times can avoid endless attempts to connect to devices that are not correctly logged out.

Phase 2
VPN IPSec Area Connections Button Phase 2 General Section General Settings that must be identical in the UTM and in the client:
Caption	Default UTM	Default NCP Client	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv1 / Roadwarrior	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv2 / Roadwarrior	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv1 / S2S	Edit Phase 2 UTMuser@firewall.name.fqdnVPNIPSec Phase 2 / Section General with / IKEv2 / S2S
Encryption:	»aes128	AES 128 Bit
Authentication:	»sha2_256	SHA2 256 Bit
Diffie-Hellman Group:	»ecp521	IKE DH-Gruppe: DH2 (modp1024)
Diffie-Hellman Group:	»ecp521	IKE DH-Gruppe: DH2 (modp1024)
Aktuelle Kombinationen:	aes128-sha2_256-ecp521
Key service life:	8 hours	Validity period of the key in phase 2
Exchange mode:	Main Mode (Not configurable)	Aggressive Mode (IKEv1) Must be changed to Main Mode in the NCP client! The UTM does not support Aggressive Mode for security reasons.
Restart on abort:	No	If the connection was terminated unexpectedly, activating will restore the state configured under Startup behavior in phase 1. The Dead Peer Detection is automatically activated in phase 1.
Group subnet combinations:	Yes If grouping is not supported by the remote station, only the first subnet is connected despite the status display in the overview to the contrary.	If more than one network is configured on the local side or at the remote gateway, a separate SA is negotiated for each subnet combination when it is deactivated. This results in numerous subnet combinations and thus many SAs, especially with multiple subnets, and leads to limitations and losses in the stability of the connections due to the design of the IPSec protocol.
DHCP:	Out	When enabled clients receive IP addresses from a local network. This requires further configurations, see wiki article on DHCP for IPSec.

Address-Pool: Address-Pool:
Caption	Value	Description
Local network:	192.168.250.0/24	The local network to be accessed via the VPN connection (as configured in the wizard in step 3).
Address-Pool: Not with IPSec DHCP	192.168.22.35/24	The IP address (e.g.: 192.168.22.35/32), or pool in the form of a subnet (e.g.: 192.168.22.35/26 for the pool of 192.168.22.0 -192.168.22.63) which is used under IPSec.

Subnets Section Subnets
	Scenario: All subnets have access to each other The wizard automatically connects each local network to each remote network. With an SSH login as root, the behavior can be understood particularly well. Example with two subnets each. Group subnet combinations Enabled On `root@firewall:~# swanctl --list-conns` `IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 192.168.219.0/24 remote: 192.168.192.0/24 192.168.193.0/24` Group subnet combinations Disabled Off `root@firewall:~# swanctl --list-conns` IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S_4: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.192.0/24 IPSec$20S2S_5: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.193.0/24 IPSec$20S2S_6: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.219.0/24 remote: 192.168.192.0/24 IPSec$20S2S_7: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.219.0/24 remote: 192.168.193.0/24	All subnets have access to each other

	Scenario: Not all subnets may access every network of the remote gateway If in phase two a local network is not connected to all remote networks (or a remote network is not connected to all local ones), this will not be taken into account if the option Group subnet combinations is active! notempty The Group subnet combinations option will connect all local networks to all remote networks! notempty Port filter rules make it possible to control access. With an SSH login as root, the behavior can be understood particularly well. Example with two subnets each. Group subnet combinations Enabled On `root@firewall:~# swanctl --list-conns IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s` `local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 192.168.219.0/24 remote: 192.168.192.0/24 192.168.193.0/24` Group subnet combinations Disabled Off `root@firewall:~# swanctl --list-conns IPSec$20S2S: IKEv2, reauthentication every 3060s, no rekeying, dpd delay 10s` `local: %any remote: 192.0.2.192 local pre-shared key authentication: id: 192.168.175.218 remote pre-shared key authentication: id: 192.0.2.192 IPSec$20S2S_4: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.192.0/24 IPSec$20S2S_5: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.218.0/24 remote: 192.168.193.0/24 IPSec$20S2S_6: TUNNEL, rekeying every 28260s, dpd action is restart local: 192.168.219.0/24 remote: 192.168.192.0/24`	Datei:UTM v12.6.2 VPN Ipsec RW IKEv1 Phase 2 reduzierte Subnetze-enpng The second local subnet is connected only to one remote subnet

Troubleshooting

Detailed Troubleshooting instructions can be found in the Troubleshooting Guide.
If an email address should be used as gateway ID, it is necessary to insert a double @@ in front of the ID (mail@... becomes @@mail@...). Otherwise the ID will be treated as FQDN.

Connection Rate Limit

Throttling of access from certain source IPs to recurring ports

notempty

The function is still in the testing phase and will be further expanded.
The function can initially only be configured via the CLI

The function aims to protect against attacks.
SSL-VPN accesses can be protected against aggressive scans or login attempts, for example.

From v12.6.2, the UTM can limit the number of TCP and/or UDP connections from an external IP address to one port.
The following conditions apply:

Only incoming connections for which a default route exists are monitored
The connections from an IP address to a port of the UTM are counted within one minute
When activated, 5 connections / connection attempts per minute are permitted.
The connections are then limited:
- The additionally permitted connections are distributed evenly within 60 seconds of the first connection.
- With a CONNECTION_RATE_LIMIT value of 20, an additional connection is added every 3 seconds.
- 10 seconds after the first login, 3 further connections could be established (each from the same IP address to the same destination port)
Blocking an IP address only affects access to the port that has been used too often.

Other ports can still be accessed.

The function is activated by default for new installations on 20 UDP connections / minute on all ports
For Updates the function must be manually activated

extc-Variable	Default	Description
CONNECTION_RATE_LIMIT_TCP	0	Number of permitted TCP connections of an IP address per port 0 = Function deactivated, no blocking is performed
CONNECTION_RATE_LIMIT_TCP_PORTS		Ports to be monitored. Empty by default=all ports would be monitored (if activated). Individual ports are separated by spaces: [ 1194 1195 ]
CONNECTION_RATE_LIMIT_UDP	20 / 0 Default setting for new installations from v12.6.2: 20 For update installations the value is 0, so the function is deactivated.	Number of permitted UDP connections of an IP address per port
CONNECTION_RATE_LIMIT_UDP_PORTS		Ports to be monitored. Empty by default=all ports are monitored (only for new installations!). Individual ports are separated by spaces: [ 1194 1195 ]

Configuration with CLI commands

CLI command	Function
extc value get application securepoint_firewall Alternatively as root user: spcli extc value get application securepoint_firewall \| grep RATE	Lists all variables of the securepoint_firewall application. The variables beginning with CONNECTION_RATE_LIMIT_ are responsible for the connection limit. application \|variable \|value --------------------+-------------------------------+----- securepoint_firewall \|… \|… \|CONNECTION_RATE_LIMIT_TCP \|0 \|CONNECTION_RATE_LIMIT_TCP_PORTS\| \|CONNECTION_RATE_LIMIT_UDP \|20 \|CONNECTION_RATE_LIMIT_UDP_PORTS\|
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_TCP value 20 system update rule	Limits the allowed number of TCP connections from a single IP address to a specific port to 20 per minute A change is made directly by a rule update. The value must not be set to 0 first!
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_TCP value 0 system update rule	Deactivates the monitoring of TCP connections
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_TCP_PORTS value [ 443 11115 ] system update rule	Restricts the monitoring of TCP connections to ports 443 and 11115 There must be spaces before and after the square brackets [ ]!
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_TCP_PORTS value [ ] system update rule	There must be spaces before and after the square brackets [ ]!
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_UDP value 20 system update rule	Limits the allowed number of UDP connections from a single IP address to a specific port to 20 per minute Default setting for new installations from v12.6.2: 20 For update installations the value is 0, so the function is deactivated. A change is made directly by a rule update. The value must not be set to 0 first!
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_UDP value 0 system update rule	Deactivates the monitoring of UDP connections
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_UDP_PORTS value [ 1194 1195 ] system update rule	Restricts the monitoring of UDP connections to ports 1194 and 1195. (Example for 2 created SSL-VPN tunnels). There must be spaces before and after the square brackets [ ]!
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_UDP_PORTS value [ ] system update rule	There must be spaces before and after the square brackets [ ]!
extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_TCP value 20 extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_TCP_PORTS value [ 443 11115 ] extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_UDP value 20 extc value set application securepoint_firewall variable CONNECTION_RATE_LIMIT_UDP_PORTS value [ ] system update rule notempty Finally, the CLI command system update rule must be entered so that the values in the rules are applied.	For example, to allow a maximum of 20 connections per minute per IP address and port. For TCP, monitoring is restricted to ports 443 and 11115. All ports are monitored for UDP connections.

Introduction

Configuration of a native IPSec connection

Wizard

Connection Type

General

Local – IKEv1

Local – IKEv2

Remote terminal – IKEv1

Remote terminal – IKEv2

Set of rules

Implied rules

Creating a network object

Packetfilter rules

Additional settings

IKEv1

Phase 1

General

IKE

Phase 2

General

Address-Pool:

Subnets

Troubleshooting

IKEv2

Phase 1

General

IKE

Phase 2

General

Address-Pool:

Subnets

Troubleshooting

Connection Rate Limit

Configuration with CLI commands
