Licenses

Licenses in the Mobile Security Portal

Last adaptation to the version: 2.11

New:

Verhalten bei iOS-Geräten bei abgelaufenen Mobile Security-Lizenzen

Unverwaltete Geräte werden in Zuordnung und Gebuchte Geräte angezeigt
Unverwaltete Geräte werden in der Lizenzauslastung angezeigt

notempty

This article refers to a Beta version

-

Licence types

The note USR active indicates that devices with this license are listed in the Securepoint Unified Security Report (USR). The following license types are available:

License type	Description	License menu
Mobile Security - Device Protection	Mobile Device Management with device security through security functions of a NextGen UTM with vpn If a device with an MDM license is added to a profile, the Security tab is disabled. notempty All devices that are already linked to this profile also have no access to the security functions (VPN, content filter, etc.) If the device with the MDM license is removed from the profile, the Security tab is available again.
MDM	Mobile Device Management (without device protection by e.g. Cyber Defence Cloud, vpn) Devices with an MDM license do not have access to the functions in the security tab of the Profiles configuration. If the configuration from a profile with the security function (Mobile Security License) is to be applied to devices with an MDM license, the profile can be copied.
Unified Endpoint Protection - UEP	Device license that applies to all end devices: mobile devices, Windows computers, routers and other end devices The features of Mobile Device Management (MDM) as well as those of Windows VPN and Cloud Shield are included Technically speaking, it is an MDM license with Windows VPN and Cloud Shield
Softwarev11	Securepoint NextGen UTM (for Unified Reporting)
Securepoint AV	Securepoint Antivirus Pro (for Unified Reporting)

Performance overview

Function	MDM-license	Mobile Security-License
Google Android Enterprise incl. Work-Container
Apple DEP (Device Enrollment Program) and VPP (Volume Purchase Program)
Settings and restrictions as profile (profile restrictions)
App Audit/Installation - Install, Delete and Block Applications
Mail and WiFi management
Remotely control mobile devices
Define device settings such as camera, passwords, drive encryption, etc.
Find, lock and delete lost devices
Central administration via the web interface
Completely hosted and maintained by Securepoint
Secure Internet traffic even in public and free WiFis	-
Control over websites (+SSL) and services (web security)	-
Independent of provider
Zero Hour Protection – Malware (incl. Cryptotrojan), Drive-by-Downloads, Phishing and Advanced Persistent Threats	-
Access points georedundant and guaranteed in Germany	-
Device independent protection (TCP/IP)	-
Evaluation and reporting incl. pseudonymisation (EU DS-GVO compliant)	-
Protects smartphones, tablets and notebooks	-
True protection for iOS and Android devices	-

License synchronization

The existing licenses in the portal are automatically synchronized with those from the reseller portal.
The License sync with RSP button can be used to manually initiate the synchronization of licenses with those from the reseller portal.
All existing licenses in the reseller portal are transferred or synchronized to the portal.

notempty

This button is only available if you have logged into the portal with a reseller account.

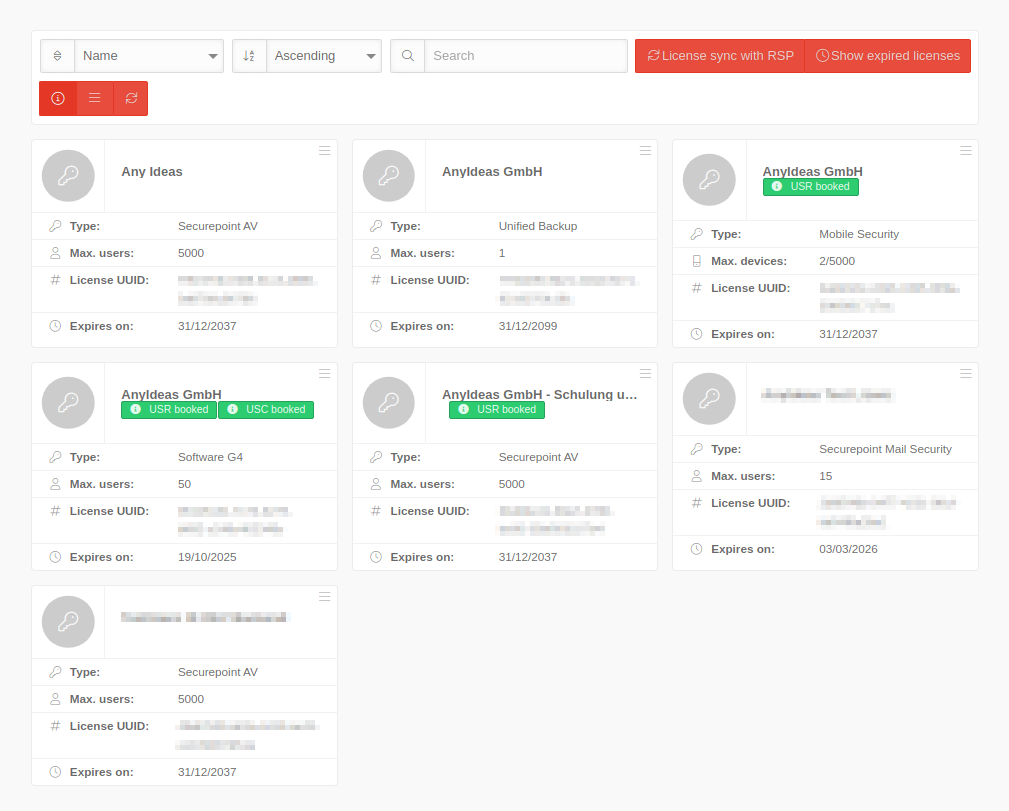

License usage

In the lower section of the portal's navigation bar, the usage of available licenses is displayed based on the enrolled MDM devices, managed and notempty
New as of: 2.9
unmanaged devices
The display differentiates between license types and the types of enrolled devices

License tile details

Caption	Value	Description
When opening one of the displayed license tiles, the details of that license are shown. These details are organized into different tabs.
General General
Summary - For the license type Mobile Security
License type	Mobile Security	Shows the License type
Assigned devices	14	Shows the number of devices assigned to this license
Max. devices	5000/5000	Shows the total maximum and the currently allowed maximum number of devices for this license
Allowed devices	5000	The maximum number of allowed devices for this license can be adjusted
Valid	Yes	Indicates, whether the license is still valid
Expires	31.12.2037	Displayes when the license will expire
No longer valid	09.02.2038	Displays when the license is no longer valid
Licensee	TTT-Point AG	Displays the owner of the license
Account ID	123456	Displays the tenant ID of the license owner
iOS Default	Assign as iOS standard	Use this license as the default license for iOS devices

Summary - Not available for license type Mobile Security
License type	Software G4	Shows the License type
Max. users	20	Shows the total maximum number of users allowed under this license
Valid	Yes	Indicates, whether the license is still valid
Expires	27.8.2025	Displayes when the license will expire
No longer valid	06.10.2025	Displays when the license is no longer valid
Licensee	TTT-Point AG	Displays the owner of the license
Account ID	123456	Displays the tenant ID of the license owner

Assignment Assignment
notempty Only for licenses of type Mobile Security and UEP(MDM) Shows all devices associated with this license It displays iOS, Android, other devices, Windows VPN, booked devices and Unmanaged devices notempty New as of: 2.9

Booked devices Booked devices
notempty Only for licenses of type Mobile Security and UEP(MDM) The number of booked devices for the license is displayed according to the device type: iOS devices, Android devices, other devices, Windows VPN, External devices via Cloud Shield The number of profiles is also displayed

Default Licenses

notempty

New as of: 2.2

notempty

This function is only available on iOS devices.

With the default license, a license is defined that is automatically applied during the enrollment of IOS devices. This ensures consistend licensing.

A valid MDM or Mobile Security license must be available.

To set a license as a default license, there are two possible ways to configure it:

Through the Burger menu using the option Assign as IOS default
In the license details under the tab General bei iOS Default using the button Assign as IOS default

Allowed Number of devices

notempty

This function is only available when logged into the portal with a reseller account.

notempty

This function is only available for licenses of the Mobile Security type.

Through the license details, it is possible to set the allowed number of devices for this license. The default maximum value is set to 5000.

Selection of the License tile to be used
Tab General
Under Allowed Devices enter the desired number of users. The value is saved via Save and automatically synchronized with the Reseller Portal
The Button Delete resets the value back to 5000

This diagonal window opens, which provides an additional reminder

Assign / change licence manually

If no license is assigned to a device (e.g. because the term of a license has ended), or if the license shall be changed, this device can be assigned to a (different) license: Selection of the license tile to be used Tab Assignment The desired device can be assigned in the click box: Device	Assign devices
Devices with an active UEP/MDM license can be assigned to a Mobile Security license
Devices with a Mobile Security License can not be assigned to a UEP/MDM License during the term of a licence for compatibility reasons. After the expiration of a Mobile Security licence devices can be assigned to an UEP/MDM licence.

License change: From Mobile Security to UEP/MDM
If the license of a device is to be changed from a Mobile Security license to a Unified Endpoint Protection (UEP)-, or Mobile Device Management (MDM) license, the following steps must be taken: Delete the mobile security configuration from the device : Settings → General → VPN and device management : Settings → Passwords & accounts Deleting the configuration from the device may have to be authorized by the administrator Book the UEP/MDM license in the Resellerportal In the RSP at Customer, select the Create license button for the relevant customer on the customer page Move the expiration date of the Mobile Security license forward in the Resellerportal This can only be set by an User with the role Verified Reseller After the Mobile Security license expires, the UEP/MDM license can be manually assigned to the device (see above)

Expired license

notempty

New as of: 2.4

notempty

It is important to ensure that the license does not expire and is renewed in time!

With an expired license, the functions of the Securepoint Portal are restricted

Unified Endpoint Protection (UEP) and Mobile Device Management (MDM) licenses

Windows VPN clients and Windows profiles:

Clients and profiles are still visible, clients get the label License expired
The Enroll new VPN client button is hidden
Tab Operations and connections in the clients are disabled
Changes to profiles are not pushed to clients with expired license

License of type Mobile Security (MS)

Android:

Devices cannot be added to a profile
A profile with devices cannot be saved
The profile cannot be changed in the device details

Licenses for the UTM

After 40 days, UTMs with expired licenses are automatically removed from the USC if there is no ASC configuration
