USC - Websessions

Start Websessions via USC

Last adaptation to the version: Portal v1.30 (09.2024) / UTM v12.5.2 (10.2023)

New:

Layout slightly adapted

It is possible to memorise the PIN for the current session

Last updated:

Arrangement of the web session adapted
All versions older than v12.5.1 are classified as significantly outdated. 02.2025
Note on VPN configurations with an upcoming portal version 02.2025

notempty

This article refers to a Beta version

Requirements

USC after update

The Unified Security Console must be enabled in the UTM

UTM Settings and permissions for the Unified Security Report

The Unified Security Report provides a good overview of battery devices directly on the Unified Security Portal. For a UTM to be included there, the function must be activated on the UTM. To activate the Unified Security Report on a UTM, the USR must first be activated for the selected license. More information can be found in the Article on the Unified Security Reporting
Caption	Value	Description	Unified Security Portal UTMuser@firewall.name.fqdn
Status:	Service is synchronized	Synchronization status with the Unified Security Portal
Privacy policy:	Yes	Consent to the privacy policy of Unified Security Reports
Activated:	Yes	Activating the connection to the Unified Security Portal
Interval:	WeeklyMonthly	Interval at which emails are sent in the report and thus also the reporting period in each case
Recipient:	»support@anyideas.de»geschaeftsfuehrung@ttt-point.de	Email address for reports

Settings and authorizations of the UTM for the Unified Security Console

notempty Note for cluster licenses In order for both cluster members to be assigned to each other, special new licenses must be registered on both devices. Menu Extras Register Button Import license file To do this, two licenses must be downloaded from the reseller portal. If no license is marked as xynnnnn-SPARE in the reseller portal (matching licenses have an identical color marking on the left side of the table), please send an email to lizenzen@securepoint.de with customer name, customer number and the serial numbers of the devices or, in the case of VMs, with the license ID. Access by then Unified Security Console must first be enabled in the UTM itself in the menu USP . The UTM reports to the license server after the update. Here, the availability of the service is indicated and the menu is activated. notempty Attention: It usually takes a few minutes, in unfavorable cases up to an hour, before the menu is displayed for the first time. The process can be shortened by executing the command on the CLI after a few minutes of runtime (the UTM must have had the opportunity to report to the license server!). system restrictions update			Unified Security Portal UTMuser@firewall.name.fqdn
			Unified Security Portal UTMuser@firewall.name.fqdn
Caption	Value	Description
Privacy Policy:	Yes	The privacy policy must be accepted

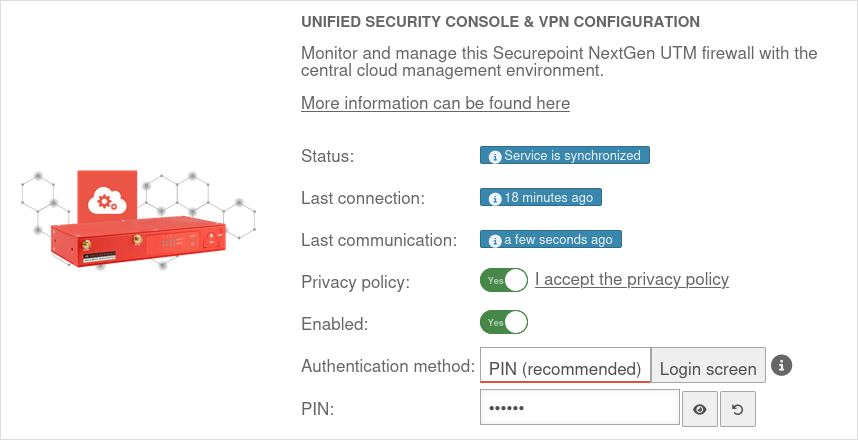

Activated:	Yes	This activates the Unified Security Console - and thus the display, configuration and access via the Securepoint Unified Security portal.
Authentication method:	PIN (recommended)Login mask	Authentication method for a web session

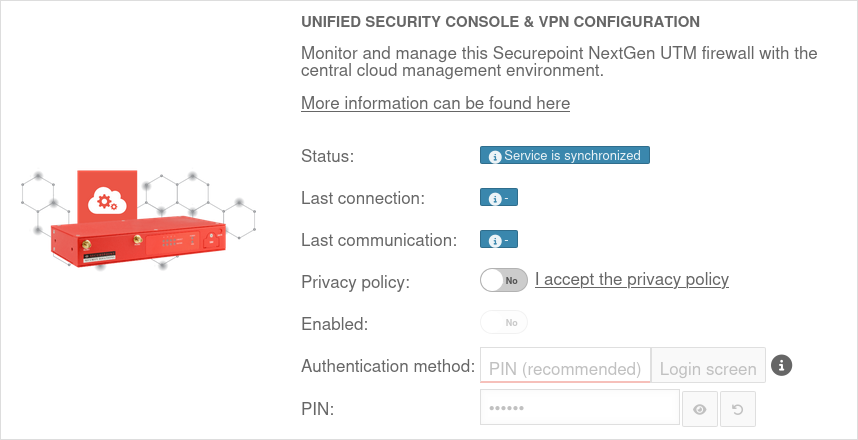

PIN:	••••••••	As authentication for a web session, a 6-digit PIN can be selected instead of the login mask with access data. The pin must not consist of equal numbers The pin must not consist of series of numbers (123456, 876543 etc.) Pins that resemble a date (230508) or contain very simple number combinations are marked as »very weak«.
		Displays the Websession PIN
		Creates a new PIN
	The entered PIN is incorrect	After 5 (default value value can be changed in the CLI with the extc variable SESSIONAUTH_MAXRETRY extc value set application ‘spcloudpuppet’ variable ‘SESSIONAUTH_MAXRETRY’ value ‘5’ ) consecutive incorrect entries, access is blocked by PIN. The PIN can be unblocked again when logging in to the UTM itself.
	Actions that can only be executed with a PIN: Reboot Shut down Restore factory settings Cloud Backup Restore Start new websession

Detailed authorizations

On the UTM under USP Authorizations, the authorizations of the Unified Security Console for the UTM can be activated On or deactivated Off in detail:
USC authorization	Description	USC authorizations
Status	Allow insight into system and memory utilization via the USC
PIN-protected actions	Allow PIN-protected actions from the USC. These include: Restart Shutdown Restore factory settings Restore cloud backup Start new web session
One-time update	Allow configuration of one-off updates from the USC
Websession	Allow opening a web session to access the UTM configuration interface from the USC
Security Scan	Security Scan zur Aufdeckung von Fehlkonfigurationen aus der USC zulassen
UTM profiles	Allow the use of UTM profiles from the USC. Can be configured more precisely using the following authorizations:

Open	This icon next to UTM-Profile displays the individual UTM profiles tabs, which can then be activated On or deactivated Off To do this UTM-Profile must be activated On
Cloud-Backup	Allow configuration of cloud backups via the USC
Systemmeldungen	Festlegung des Empfängers von Systemmeldungen über die USC zulassen
DNS-Server	Konfiguration der externen DNS-Server über die USC zulassen
Zeit-Einstellungen	Einstellung von NTP-Server und Zeitzone über die USC zulassen
Administration	Allow aconfiguration of dministrative access via the USC Host name, IP addresses or networks from which the admin station interface of the UTM may be accessed. Configuration on the UTM in the menu Network Appliance Settings Area Adminstration
Systemweite GeoIP Sperrungen	Blockierung von IPs auf Länderbasis über die USC zulassen
Firmware-Updates	Konfiguration von regelmäßigen automatischen Updates über die USC zulassen
TIF (Cyber Defense Cloud)	IP-Zugriffe auf potentiell gefährliche Gegenstelle protokollieren oder blocken über die USC zulassen
Data protection	Allow configuration of the anonymization of UTM applications via the USC
Fail2Ban	Allow configuration of Fail2Ban via the USC
Cloud Shield	Allow configuration of Cloud Shield via the USC
Cloud Shield	Delete Cloud Shield configuration Deletes the local Cloud Shield configuration The configuration is normally carried out via the USC to ensure synchronization and should only be carried out here in exceptional cases. If Cloud Shield is to be reactivated, it must be ensured that the authorization is set on the UTM side. A new transfer of the configuration to the UTM must then be triggered in the USC by changing the Cloud Shield or UTM profile.

VPN configuration (ASC)	Allow the use of VPN configuration profiles from the USC
VPN configuration (ASC)	Alle VPN-Konfigurationen löschen All VPN configurations for this UTM can be deleted using this button

IP address

notempty

An update is strongly recommended for these versions, as they are significantly outdated.

UTM up to v.12.2.2.8: Update required
The UTM uses an older procedure for the Websession, which is only available until 30.11.2023
- The UTM is directly accessible via a local network
- Access data (user name and password) are required
  or
- The UTM has a public IP
  If no public IPv4 is available because the UTM is behind a NAT router, a public IPv6 can be assigned via IPv6 prefix delegation.
UTM up to v12.4.4.1 An update to the latest version is recommended
- The UTM is directly accessible via a local network
- Access data (user name and password) are required
  or
- The UTM has a public IP
  If no public IPv4 is available because the UTM is behind a NAT router, a public IPv6 can be assigned via IPv6 prefix delegation.
UTM v12.5.0
- The UTM is directly accessible via a local network
- Access data (user name and password) are required
  or
- The UTM has a public IP
  If no public IPv4 is available because the UTM is behind a NAT router, a public IPv6 can be assigned via IPv6 prefix delegation.
- A PIN is additionally required
  Deposited on the UTM in the menu USC / box Unified Security Console

Example configuration with a Fritzbox

Note

This section includes descriptions of third-party software and is based on the status at the time this page was created.
Changes to the user interface on the part of the manufacturer are possible at any time and must be taken into account accordingly in the implementation.
All information without warranty.

Login to the configuration interface (in the default settings at https://192.168.178.1)
In the network settings for IPv6, the option Enable DHCPv6 server in FRITZ!Box for home network must be selected
Select suboption Assign DNS server, prefix (IA_PD) and IPv6 address (IA_NA)

Fig.1

USC reaches the UTM with IPv6 via the Fritzbox on LAN1

Fig.2

Menu Home network ➊ / Network ➋ / Tab Network settings ➍
at the bottom of the page dropdown menu: More Settings ➍
Section IP addresses / Button IPv6 settings ➎ (not in picture)
or also IPv6 configuration

Fig.3

Section Other IPv6 routers in the home network
Also allow IPv6 prefixes to be advertised by other IPv6 routers on the home network ➏

Section DHCPv6 server in home network
Enable DHCPv6 server in FRITZ!Box for the home network: ➐

Activate Assign DNS server, prefix (IA_PD) and IPv6 address (IA_NA). ➑

Save details with button OK ➒

Fig.4

Required if the UTM and, if necessary, other devices in the local network are to be accessible from outside via IPv6

Menu drPermit AccessPort sharing

Select device from dropdown menu ➓
Select 'Enter IP address manually' if it is not assigned via DHCP

If desired: enable ping for IPv6 ⓫

Enable Open firewall for delegated IPv6 prefixes of this device option ⓬

Click on the New sharing button ⓭
Another dialog opens

Fig.5

Choose option Port sharing

Application Other application

Description Meaningful name

Protocol TCP

Port to device 11115 through Port 11115
Adjust port if necessary under Area Server Settings section web server Administration Web Interface Port: a different port has been configured.

In the Enable sharing section, select the
Internet access via IPv6 option

Finish input with OK

In the overview confirm entries with OK (see Fig.4 No.⓮)

Fig.6

Check all entries and confirm with .

Configuration on the UTM:

Edit interfaces

External interface

Typically A0, LAN1 or eth0 - depending on the hardware used

connected to the Internet via NAT router

Menu Network Network Configuration Area Network Interfaces / Edit External Interface / Tab General

DHCP Client IPv4 & IPv6
Router Advertisement: Off
IPv6 Prefix Delegation On

Internal interface

E.g. A1, LAN2 or eth1 - depending on the used hardware

(must be configured for all internal interfaces that are to distribute a public IPv6 address to clients (and thus also receive one themselves).

Menu Network Network Configuration Area Network Interfaces / Edit Internal Interface / Tab General

DHCP Client Off
Router Advertisement: On
IPv6-Adressen vergeben: Ja
IPv6 Prefix Delegation: Off

Add default route

Gateway Type: IPSchnittstelle
Gateway: LAN1
IPv6: On

In order for the IPv6 addresses to be routed, a default route must be added under Network Network Configuration Area Routing button Add Default Route.
Save

Network configuration with IPv6 prefix delegation

The external interface should get a dynamic after a short moment. .../64 IPv6 address
If there is a 128 address here, the settings in the Fritzbox must be verified

Create network objects and packet filter rules

Network object internal_v6

button Add Object

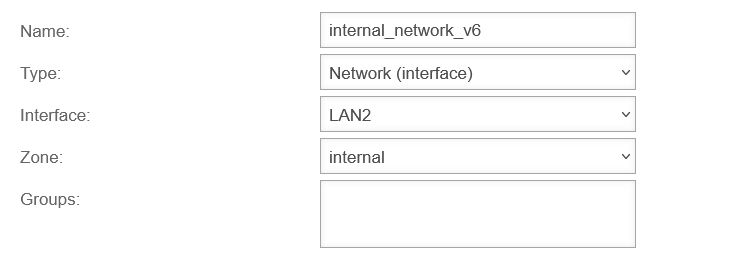

Name: internal_network_v6

Type: Network (interface)
Adresse: LAN2
Zone: internal

For systems set up before v12.4:

Network object Internet_v6

Name: Internet_v6
Type: Network (address)
Adresse: ⸬/0
Zone: external
For systems set up before v12.4: external_v6

Possible packet filter rule

Source: internal_network_v6

Target: internet_v6
Service: default-internet
Action: Accept
NAT

Type: No NAT!

The UTM can now be reached via a public IPv6.
After a few minutes, this address is displayed in the selection box for IP addresses in the USC.

UTM from v.12.5.1:
- The UTM is directly accessible via a local network
- Access data (user name and password) are required
  or
- A Websession from remote networks is also possible if the UTM does not have a public IP
- The connection is established via the interface on which the default route of the UTM is set up.
- Login with PIN or access data possible
  Deposited on the UTM in the menu USC / box Unified Security Console

Websession

Action:

Description

Start new websession

Opens the dialog to start the administrative web interface of the UTM

Websession with PIN

notempty

Websession with PIN (UTM from v12.5.1)

The connection is established via the interface on which the default route of the UTM is set up.

admin

If there is no user with the name admin, a user with admin rights can be selected here with whom the Websession connection is to be started.

Websession with PIN (UTM as of v12.5.1)

_ _ _ _ _ _

Websession PIN (Configured on the UTM in the menu in the Unified Security Console section
After entering the PIN, the Websession can be started directly using ↵ Enter.

notempty

New as of: 1.27

Displays the Websession PIN

Remember PIN for the current session notempty

New as of 1.30

In this dialogue window it is possible to remember the PIN for this session.
If this is activated , the PIN is automatically entered in other dialogues and the slider is no longer displayed. If the PIN is entered incorrectly, it will not be saved.

The entered PIN is incorrect

After 5 (default value

value can be changed in the CLI with the extc variable SESSIONAUTH_MAXRETRY extc value set application ‘spcloudpuppet’ variable ‘SESSIONAUTH_MAXRETRY’ value ‘5’

) consecutive incorrect entries, access is blocked by PIN.
The PIN can be unblocked again when logging in to the UTM itself.

Start new websession

Opens the admin interface of the UTM in a new tab of the used browser

Pop-ups may need to be allowed for portal.securepoint.cloud in the browser used!

Websession with login screen

notempty

Websession with login screen (UTM from v12.5.1)

The connection is established via the interface on which the default route of the UTM is set up.

Websession with login screen (as of UTM v12.5.1)

As the Websession PIN is deactivated, no automatic login can take place. Access data (user name and password) are required.

Start new websession

Opens the admin interface of the UTM in a new tab of the used browser

Pop-ups may need to be allowed for portal.securepoint.cloud in the browser used!

Websession with UTM up to v12.5.0

notempty

An update to the latest version is recommended

IP address	All interfaces with IP addresses on the UTM are offered in the drop-down menu. It is also indicated whether the IP addresses are public or local. Interface with a public IP address 203.0.113.203 (A0) [Public] A Websession PIN is required (see below) If the first login 'after the first update of the UTM to a version 12.5.x via a Websession, the initial PIN 000000 is valid. The PIN must be changed at the first login. Interface with private IP address 192.168.12.50 (A1) [Local] A link to the local administration web interface will be provided User credentials with administrator rights for the UTM are required The own IP must be registered as manager IP on the UTM A connection in the local network to the UTM is required	Websession with PIN (UTM up to v12.5.0)
Port	11115 Port through which the admin interface of the UTM can be reached (is read from the settings of the UTM under Network Server Settings )
PIN:	•••••••• Websession PIN (Configured on the UTM in the USC menu in the Unified Security Console section
PIN:	The entered PIN is incorrect After 5 (default value value can be changed in the CLI with the extc variable SESSIONAUTH_MAXRETRY extc value set application ‘spcloudpuppet’ variable ‘SESSIONAUTH_MAXRETRY’ value ‘5’ ) consecutive incorrect entries, access is blocked by PIN. The PIN can be unblocked again when logging in to the UTM itself.
Version	Version Currently used firmware version
Start new websession PIN	Opens the admin interface of the UTM in a new tab of the used browser Pop-ups may need to be allowed for portal.securepoint.cloud in the browser used!
